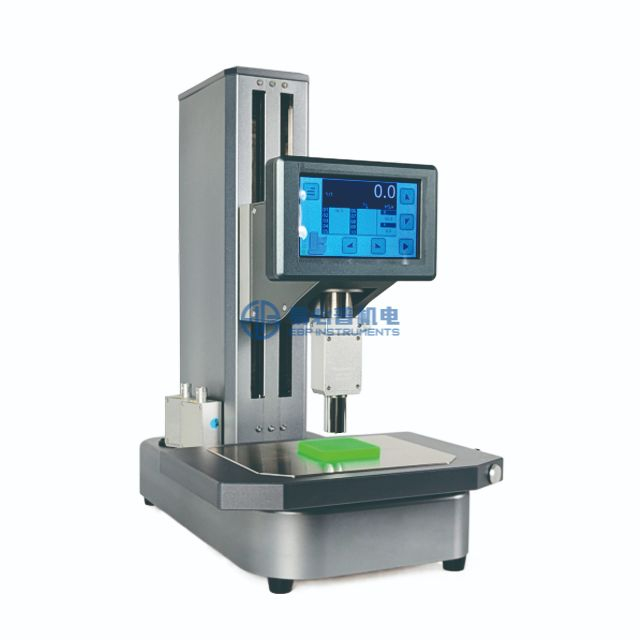

ESH-ZX
EBP INSTRUMENTS
Shanghai, Shenzhen
90 sets per month
TT in advance
1 set
Specification:
Model | ESH-ZX |
Loading Mode | Stepping motor |
Stroke | 160mm |
Sliding Platform stroke | 80mm |
Force Loading Method | Spring Force |
Throat Depth | 120mm |
Probe | HA, HD, HC |
Resolution | 0.1H |
Reading Accuracy | ±1H |
Output | Data Interface, USB |

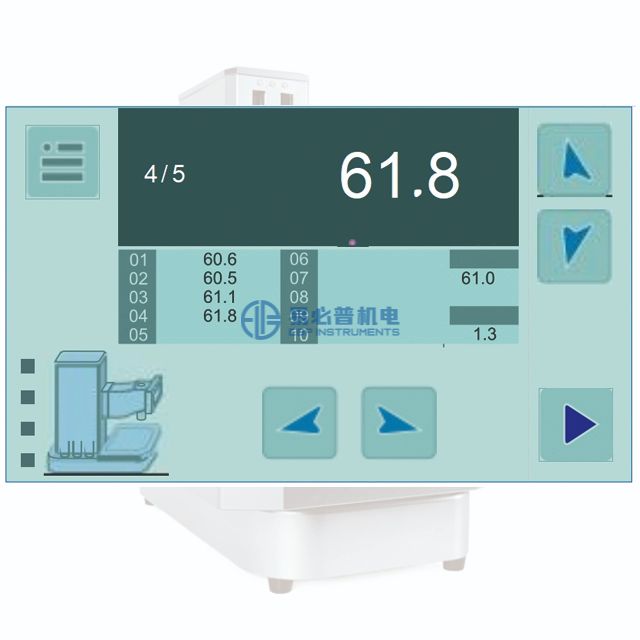

Display | 4.3 inch touch screen, 800*480 serial display |
Operating Environment | -10 ~ 40℃, 20 ~ 80%RH |

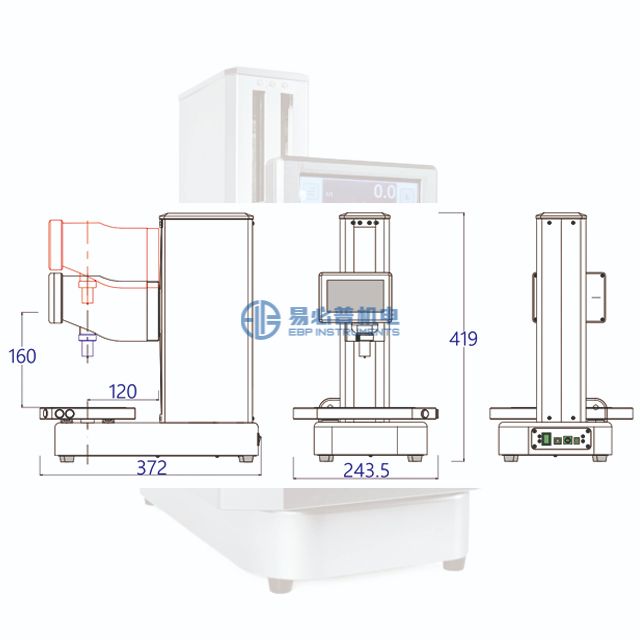

Size | 243.5*372*419mm |
Weight | 18kg |
Power | DC24V5A |
Standard | ASTMD 2240,GB/T 531.1, ISO 7619-1, ISO868 |
Packing list:
Name | Qty | Name | Qty |
Fully Automatic Shore Hardness Tester | 1 unit | Probe A, C, oo | Each 1 piece |
24V Power Adapter | 1 piece | Power cord | 1 piece |
USB Data cable | 1 piece | Export inspection report | 1 piece |
Manual Book | 1 piece | 50H Standard thickness | 1 piece |
