Automatic Shore Hardness Tester | High Precision Digital Shore Durometer for Rubber & Plastics (ISO 7619 / ASTM D2240) The product refers to ISO 48-9-2018, ISO 7619-2010, ISO 21509-2006, GB/T 38119-2019, GB/T 2411-2008, JJG 304-2003, GB/T 531.1-2008, GB/T 38243-2019. High accuracy and automatic design, particularly suitable for batch repetitive testing tasks, and the efficiency is significantly improved.

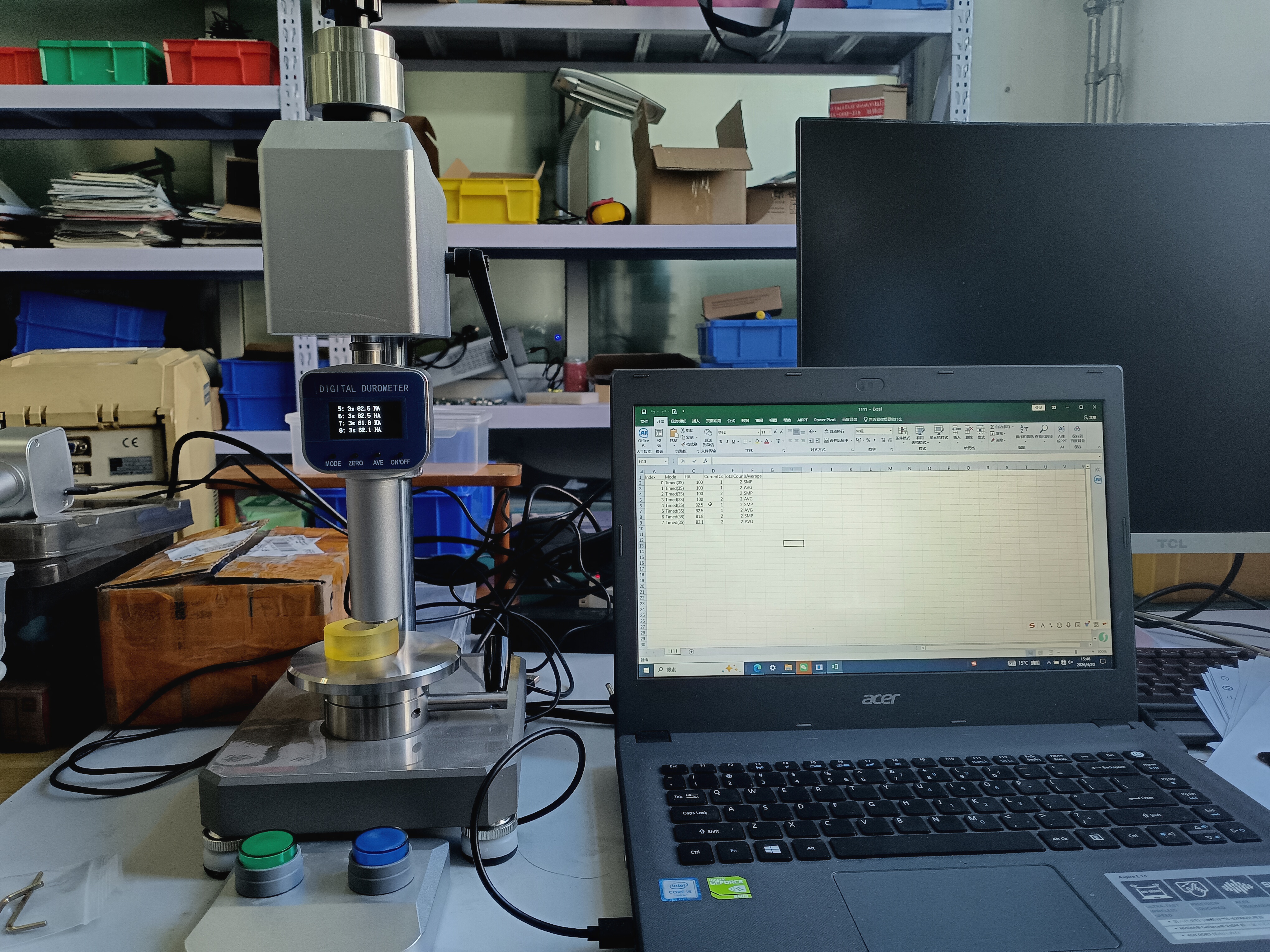

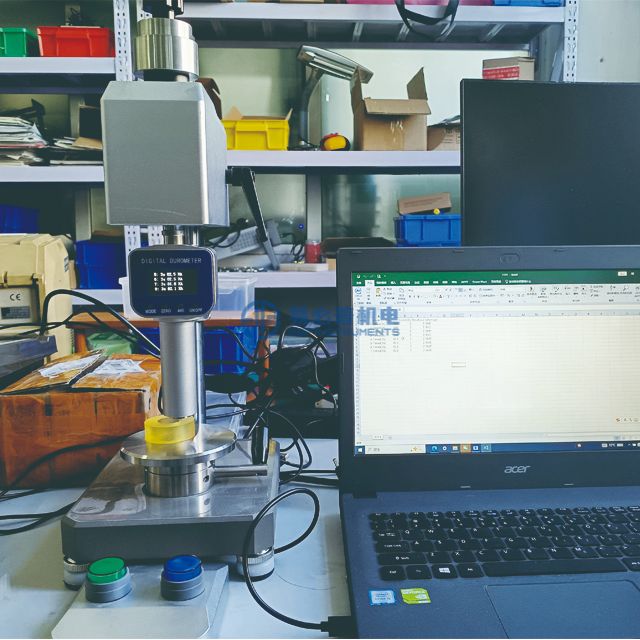

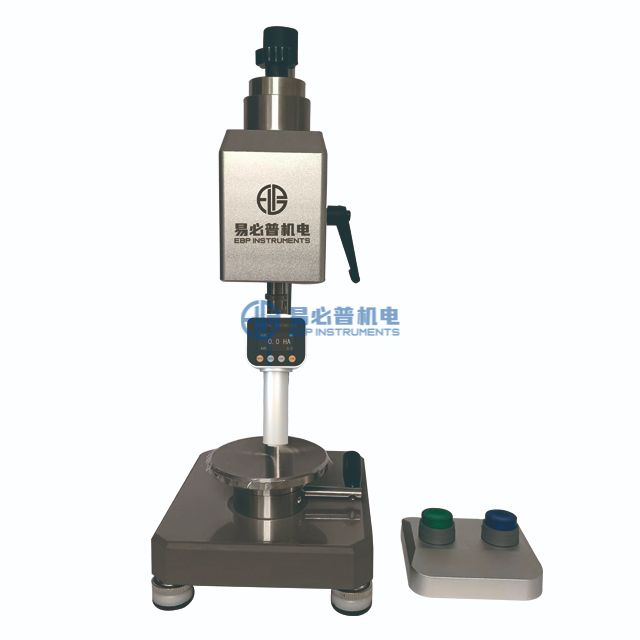

ESH-100A Electronic automatic shore hardness tester is widely applied in the low and medium hardness plastic, all kinds of rubber, multidimensional fat, leather, wax hardness test, etc. The product refers to ISO 48-9-2018, ISO 7619-2010, ISO 21509-2006, GB/T 38119-2019, GB/T 2411-2008, JJG 304-2003, GB/T 531.1-2008, GB/T 38243-2019.
1) Automatic design, High Working Efficiency: Press Start key machine automatic loading, automatic display hardness data; And one key automatic unloading. This is particularly suitable for batch repetitive testing tasks, and the efficiency is significantly improved.
2) Excellent Data Repeatability And Reliability: The mechanical structure is stable, the testing process is completed automatically, eliminating all subjective factors, and the test results are highly consistent.
3) Stable Test Force: The test force has excellent consistency, with a high-precision motor that ensures the test force is applied vertically, uniformly, and accurately, fully complying with ASTM and ISO international standards.

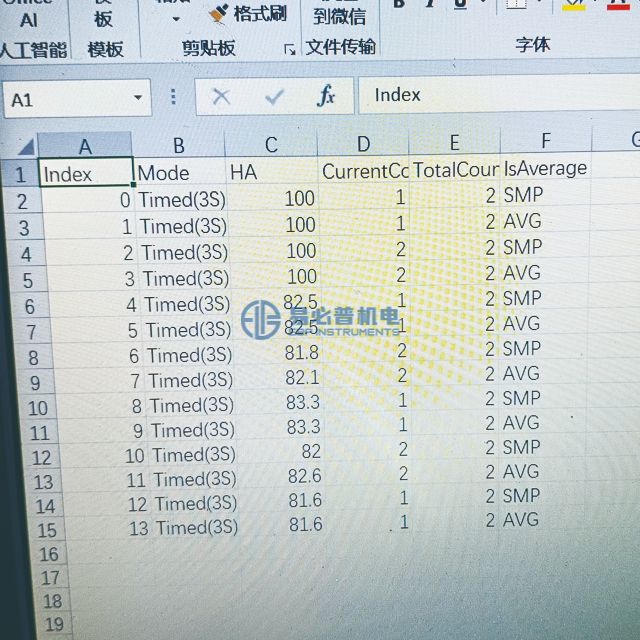

4) Data storage and transfer: Test data can save in machine or transfer to computer

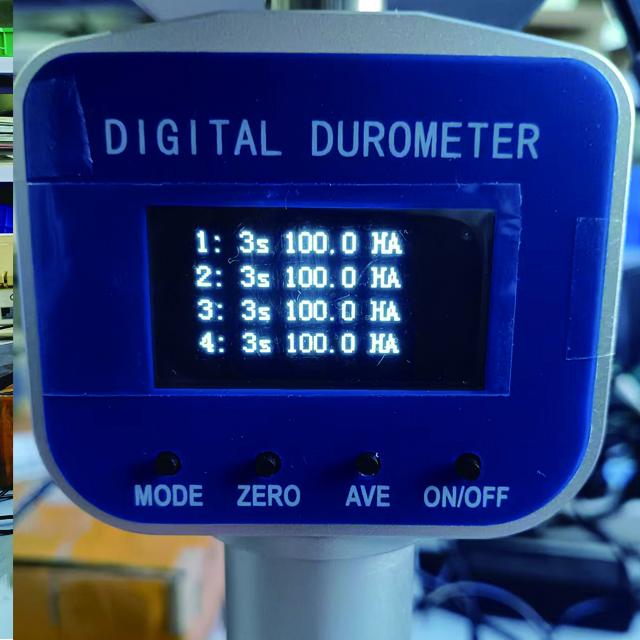

5) Energy saving: Equipped with 1.54-inch OLED display offers clear visuals, low power consumption, and requires no backlight.
6) Digital display: Employing digital displacement sensors ensures testing accuracy and eliminates the need for analog displacement sensors.
7) Easy Operation & High Accuracy: One click can get hardness data, operation very easy; It avoids human error by automatically applying pressure to the sample surface, thus preventing the influence of operator hand tremors and visual biases on reading.
Technical specification:
Model
ESH-100A
Measuring range
0-100HA
Test force accuracy
HA: ±75mN (optional 37.5mN) , meet ISO 7619-1:2010
Optional: HD: ±222.5mN, meet ISO 7619-1:2010
Needle extension amount
2.5mm
Minimum test thickness
6mm
Test height
≥60mm
Table power
12V 50/60Hz, chargeable battery 3.7V 3000mAh;
Controller power supply: DC5V, 2A
Driven mode
Precision motor
Control accuracy
<0.5%
Measure error
≤ 0.5 HA
Display resolution
0.1HA
Data Statistics function
With average data calculation function, data within 0-9 pcs
Working environment
-10℃～40℃; Humidity < 90%RH
Data transfer
USB port, Real-time data upload
Sensor
Magnetic grating displacement sensor, It has strong anti-interference ability, good stability, better repeatability, and long service life.
System size & N.W
210x165x440mm; Around 15.3kg
Optional
Shore D, Shore AO, Shore AM, Shore OO
Application:
Method
Force Accuracy
Needle extend
Mini. thickness
Suitable Materials
Shore A
±75mN
Or 37.5mN
2.5mm
6mm
Materials include soft rubber, synthetic rubber, natural rubber products, casting resins, printing rollers, thermoplastic elastomers, soft PVC, and leather.
Shore D
±222.5mN
2.5mm
6mm
Thermoplastics, hard resins, hard rubber, flooring materials, etc.
Shore AO
±37.5mN
2.5mm
6mm
Leather-wrapped foam, steering wheel material, etc.
Shore AM
±8.8mN
1.25mm
1.5mm
ultra-thin parts
Shore OO (ASTM)
±9mN
2.5mm
6mm
Foamed rubber, silicone rubber, gel materials, etc.
