UTM-1000HW
EBP INSTRUMENTS
Shanghai
90 sets / month
TT in advance
1 set
Application:
For static and quasi-static test (low frequency fatigue) for high loads in many types of tests.
Specially indicated to switch test mode, thanks to its dual space design.
Product Description

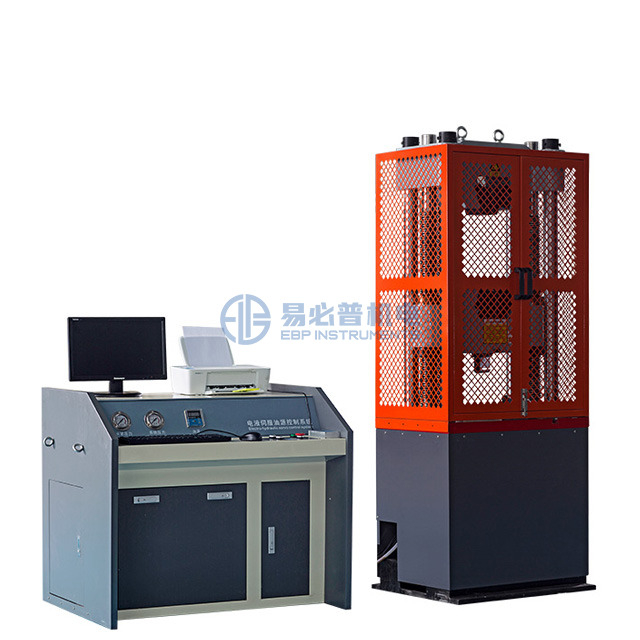

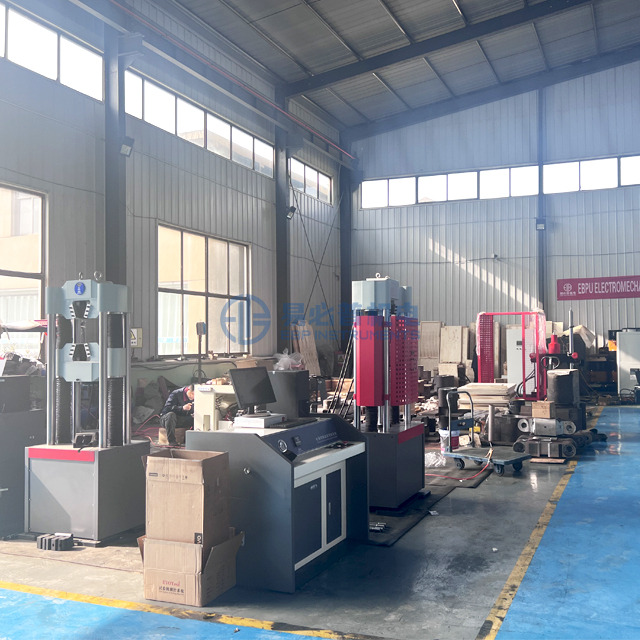

UTM-HW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types Of Specimens And Materials
1. Metals-(wire, rod, tube, strip, plate, strip) ;
2. Fasteners (tensile, proof, single and double shear) ;
3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components), etc.
Applied Standards
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specification:
Model | UTM-1000HW |
Number of Columns | 6 (4 columns and 2 screws) |
Load Capacity | 1000kN |
Load Capacity | 100000kgf |
Calibration Standard | ISO 7500 |
Calibration Standard | Class 1 or Class 0.5 |
Testing load Accuracy | ±1% or ±0.5% |
Load Measuring Range | 1%～100%F.S |
Load Resolution | 1/500,000 of FS |
Displacement Resolution | 0.001mm |
Displacement Accuracy | ≤±0.5% of Indicating Value |
Deformation Measuring Range | 1%~100%FS |
Deformation resolution | 1/±500000FS of the max deformation |
Deformation accuracy | ≤±0.5% of Indicating Value |
Overload Protection | ≥5% of Full Range |
Main Frame Parameters | |
Max. Tensile Testing Space | 650mm |
Max. Compression Testing Space | 550mm |
Distance Between Two Columns | 550mm |
Max. Piston Stroke | 250mm |
Testing Speeds | 0-80mm/min |
Cross Beam Adjustment for Max Speed | About 200 mm/min |
Controls Parameters | |
Control Mode | Force closed loop control, deformation closed loop control, displacement closed loop control |
Force Control Controls The Speed Range | 0.001%~5%FS/s |
Deformation Control Controls Speed Range | 0.001%~5%FS/s |
Accessory Parameters | |

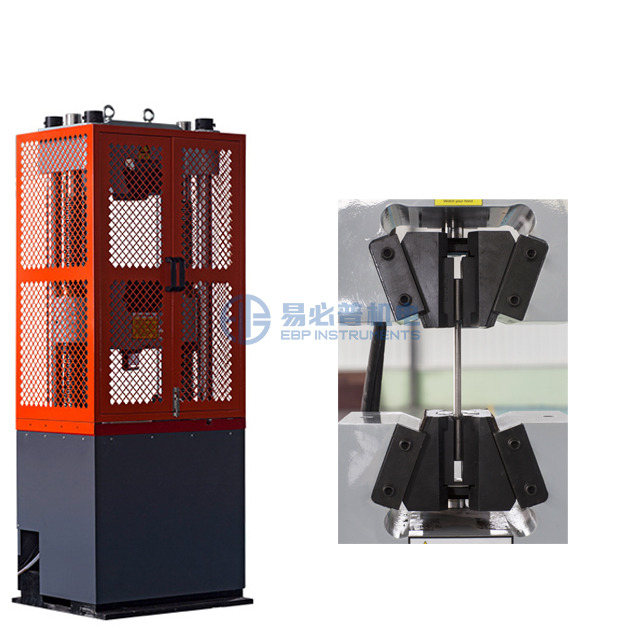

Clamping mode | Built-in wedge type hydraulic automatic clamping |
Overall Dimensions of The Jaws | 80*80mm |
Round Specimen Clamping Dia. Range | Φ13-Φ26;Φ26-Φ40mm (Optional:Φ6-13mm) |
Flat Specimen Clamping Thickness Range | 0~15mm (Optional: 15-30mm) |
Compression Plate Dimensions | Φ160mm |
Machine Parameters | |
Load Frame Dimension (L*W*H) | 900*660*2150mm |
Oil Power Dimension (L*W*H) | 1250*1000*1000mm |
Power Supply | 3P 380V±10%, 50-60HZ,2.3kW |
N.W. | 1780kg |
Operating Temperature | 0 to +38° C (+32 to +100° F) |
Humidity Range | 10% to 90% non-condensing |
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. | |
1) Pack, running under Windows™, specially developed by EBP to be used in universal testing machines.
2) In metal tensile test, Can automatically obtain Fel, Feh, Fp, Ft, Fm, Rel, Reh, Rp, Rt, Agt, Z, A, Rm, etc，Also can carry on the artificial recognition of for Fel, Fm, etc. and print the results accordingly.
3) Curve point traversal functions: Through the mouse click on the curve of force and deformation values, to obtain various parameters of each point.
4) Automatic analysis: Finish test, the system automatically analysis, statistical test results.
5) Recording function: can effectively record and play back the entire test experiment process
