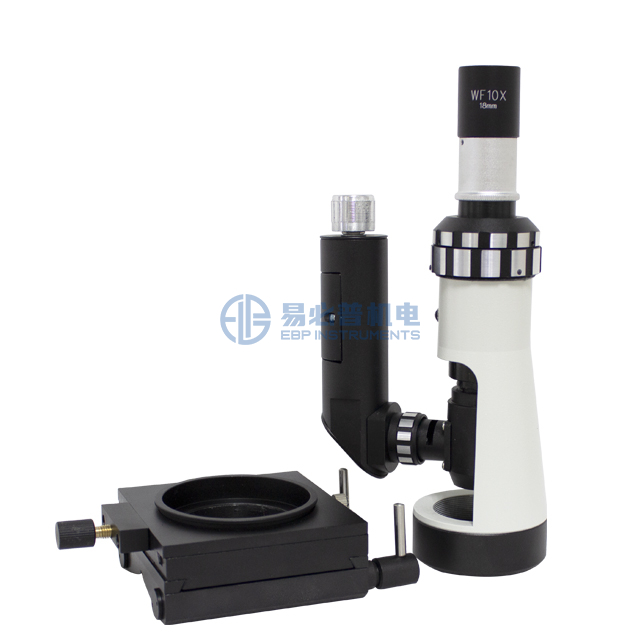

Handheld Portable Metallographic Microscope 100X - 400X

EP-X light and small metallographic microscope for large steel or semi-finished products and finished workpieces of the field. The instrument can be used to identify the structure of the steel raw materials and analyze the changes of the structure of the steel materials after heat treatment.

Availability:



Inquire Add to Basket

Model:
EP-X
Brand:
EBP INSTRUMENTS
Port:
Shanghai, China
Production Capacity:
300 Sets Per Month
Payment Terms:
T/T in advance
Min. Order:
1 set

Product Description

Introduction:

Portable metallographic microscope is a kind of light and small metallographic microscope for large steel or semi-finished products and finished workpieces of the field. The instrument can be used to identify the structure of the steel raw materials and analyze the changes of the structure of the steel materials after heat treatment.

The instrument can also be used in the laboratory, we can do the metallographic inspection of general, and CCD industrial camera and digital camera use, can be configured and connected to the computer, monitor, display and so on for metallographic analysis, metallographic analysis software to carry on the omni-directional analysis research on map.

Technical Parameter:

Total magnification: 100X, 400X

Eyepiece

Item	Magnification	Focal length (mm)	Field (mm)
Flat field eyepiece	10X	25	Ø18

Objective lens

Item	Objective lens	Focal length (mm)	Field (mm)	Remark
Long focus lens	10X	0.25	8.9	Dry
Long focus lens	40X	0.60	3.7	Dry

Illumination: Aspheric concentrating mirror, 6V3W LED light

Machine size & N.W: 70x110x230mm, 2kg; Packing size & G.W: 475x280x160mm, 2.6kg

Packing List

1) Eyepiece: 10X 2) Long distance field achromatic lens 10X and 40X

3)Magnetic base 4) LED lights 5) Host 6) Charger

7) Use instructions 8) Product certificate

100X - 400X Portable Metallographic Microscope Ep-X
