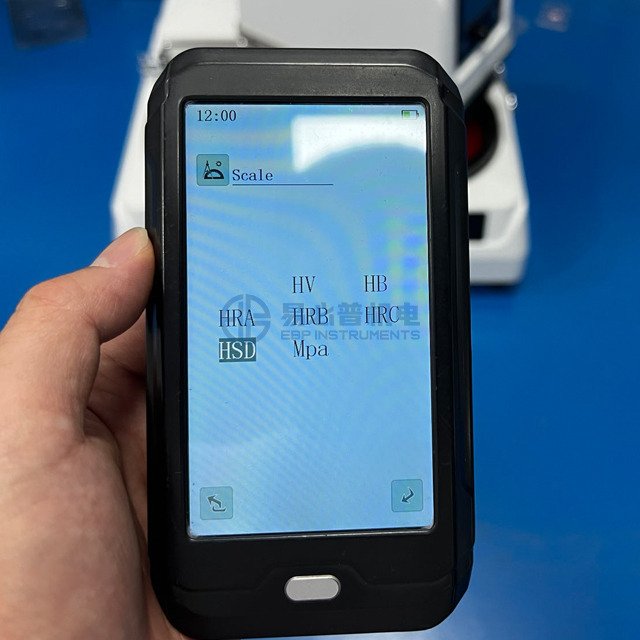

Portable Hardness Tester with Touch Screen Control

Handheld design, easy do onsite hardness testing;
Large touch screen (5'') and menu structure, easy operation;
Can test and display HV, HB, HRA, HRB, HRC, HSD, Mpa;
Bluetooth printer can print test data directly
Availability:
  • L-6
  • EBP INSTRUMENTS
  • Shenzhen or Hongkong
  • 900 sets per month
  • TT in advance
  • 1 set

Main Application:

1. Die cavity of molds

2. Bearings and other parts

3. Failure analysis of pressure vessel, steam generator and other equipment

4. Heavy work piece

5. The installed machinery and permanently assembled parts

6. Testing surface of a small hollow space

7. Material identification in the warehouse of metallic materials

8. Rapid testing in large range and multi-measuring areas for large-scale work piece.


Features:

1. Large touch screen (5 inches), showing all functions and parameters.

2. Test at any angle, even upside down.

3. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HV, HB, HRA, HRB, HRC, HSD, Mpa.

4. Seven impact devices are available for special application. Automatically identify the type of impact devices.

5. Large capacity memory could store 2000 pcs test data. Testing information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

6. Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

7. Battery information indicates the rest capacity of the battery and the charge status.

8. User calibration function.

9. High quality high speed bluetooth printer support the immediate printing function. It can save data permanently.

10. Li rechargeable battery1400mAh as the power source. Charge circuit integrated inside the instrument.

11. Auto power off to save energy.

12. Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh operating environment, vibration, shock and electromagnetic interference.

13. Excellent after-sale service system for high quality products---one year’ guarantee and all life maintenance. Easy to buy and comfortable to use.


Technical Specification:

Model

L-6

Measuring Range

HLD (170-960), HRA(59.1-88), HRB (13.5-101.7), HRC (17.9-69.5),

HB (19-683), HV (80-1042), HS (30.6-102.6), MPa (74 to 2652 N/m 2)

Impact Directions

Up, down, horizontal, slanting up, slanting down

Impact Device

C, D, DC, DL, D+15, G

Measuring Materials

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron,

ductile iron, cast aluminum alloy, Cu-Zn alloys, Cu-Sn alloys, etc

Standards

ASTM A956, DIN50156-1, GB/T17394-1998

Hardness Scales

HL, HB, HRB, HRC, HRA, HV, HS.

Display

854*400 5 inch color capacitive touch LCD screen

Memory

2000 pieces test data

Battery

1400mAh Li-battery

Printer

Bluetooth printer

Interface Port

USB

Environment

Temperature: -30~80℃ ; Humidity: 5%-95%

Dimensions

151*85*27mm (host).

Weight

255g (host).

Packing size/G.W

34x33x15cm; 5.5kg


Packing list:

Item

Quantity

Item

Quantity

Main Unit

1 PC

Small support ring

1 PC

D type impact device

1 PC

Battery Charger

1 PC

Standard test block

1 PC

Manual

1 PC

Cleaning brush (I)

1 PC

Communication cable

1 PC

Paper for printing

1 PC

Instrument case

1 PC
