Ultrasonic Pipe Wall Thickness Gauge Steel Thickness Tester

Measuring range 0.75-600mm (Steel);
0.01mm resolution, USB interface;
Velocity Range 1000-9999m/s
  • UT-2
  • EBP INSTRUMENTS
  • Shanghai, China
  • 900 Sets Per Month
  • T/T in advance
  • 1 set
Introduction

Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic, China glass, glass fiber and any other good conductors of ultrasonic. The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.


Features:
1 Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2 Can collocate variety different frequencies,wafer sizes of probes;
3 Sound Velocity Calibration function as a known thickness;
4 Coupling status indicator showing the coupling status;
5 EL backlight, and convenience to use under dark environment;
6 Have the battery indicator function, can real-time display the remaining power
7 Auto sleep and auto power off function to conserve battery life;
8 Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.


Primary Theory:

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material,reflect form the back or inside surface, and be returned to the transducer.The measured two-way transit time is divided by two to account for the down-and-back travel path,and then multiplied by the velocity of sound in the material.

Technical Specification
ModelUT-2
Measuring range0.75-600mm (Steel)
Velocity Range1000-9999m/s
Resolution0.01mm
Measuring accuracy± (0.5%H+0.04mm); H is thickness value
Measurement cycleSingle point measurement 6 times/per
Display128 x 64 LCD with LED backlight, color screen
Storage3000 values of saved data
Communication InterfaceUSB
Power Source2pcs 1.5V AA battery
Working Timemore than 50 hours (LED backlight off)
Work environment Temperature-20ºC to 70ºC
Humidity5% to 90% (≤90%)
Storage Temperature-30ºC to +70ºC
Dimensions & N/W145mmx74mmx32 mm; 245g

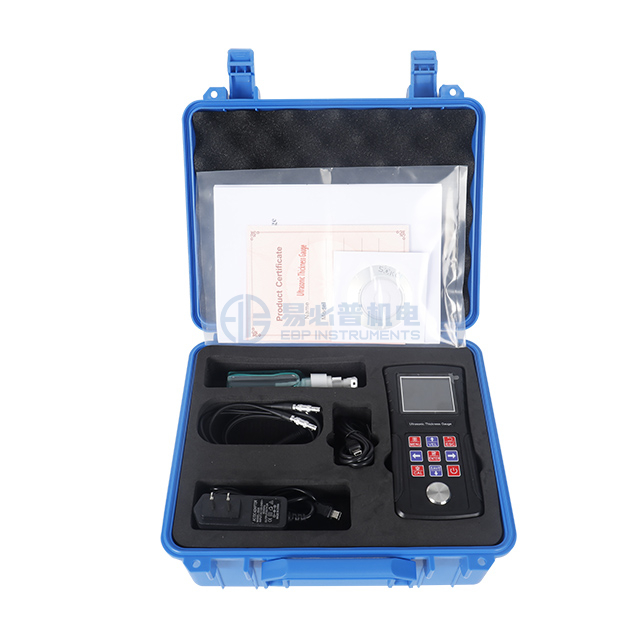

Standard configuration:


No.NameQTY
Standard Configuration1Main Body1 set

2Standard Probe (5MHz,D10mm)1 pc

3Couplant1 pc

4ABS Case1 pc

5Product Certificate1 pc

6Warranty Card1 pc

7Manual1 pc

81.5V AA size2 pcs
Optional
Accessories
9Large diameter probe (2.5MHz)

10Large range probe (2MHz)

11Micro-diameter probe (7MHz)

12High temperature probe (5MHz)

13High temperature couplant


Optional purchase - Probes:

NameModelFrequencyDiameterTesting RangeMin. area fApplication
Large diameter probeN022.514mm3.0mm~400.0mm (steel)
Below 40mm(Gray Iron HT200)
20mmcasting work piece
Large range probeN02214mm3.0mm~600.0mm (steel)
Below 100mm(Gray Iron HT200)
20mmcasting work piece
Standard probeN05/90°510mm1.0mm~230.0mm (steel) Φ20*3.0mmGeneral bent probe
Micro-diameter probeN0776mm0.28mm~80.0mm (steel) Φ15*2.0mmthin work piece
High Temperature ProbeHT5514mm3~200mm  (steel) 30mmhigh temperature


Sound Velocity:

MaterialVelocity
in/µsm/s
Aluminum0.2506340-6400
Steel, common0.2335920
Steel, stainless0.2265740
Brass0.1734399
Copper0.1864720
Iron0.2335930
Cast Iron0.173-0.2294400-5820
Lead0.0942400
Nylon0.1052680
Silver0.1423607
Gold0.1283251
Zinc0.1644170
Titanium0.2365990
Tin0.1172960

0.1092760
Epoxy resin0.1002540
Ice0.1573988
Nickel0.2225639
Plexiglass0.1062692
Porcelain0.2305842
PVC0.0942388
Quartz glass0.2225639
Rubber, vulcanized0.0912311
Water0.0581473
