QGL-80C / 100C
EBP INSTRUMENTS
Shanghai, China
200 Sets Per Month
TT in advance
1 set

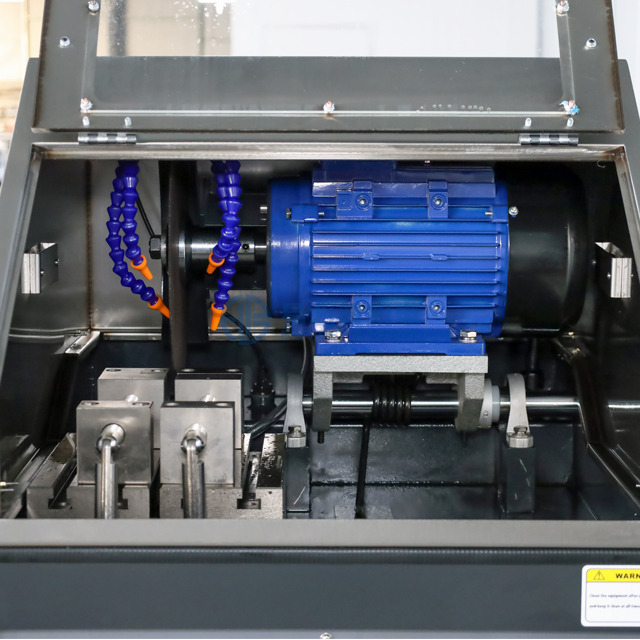

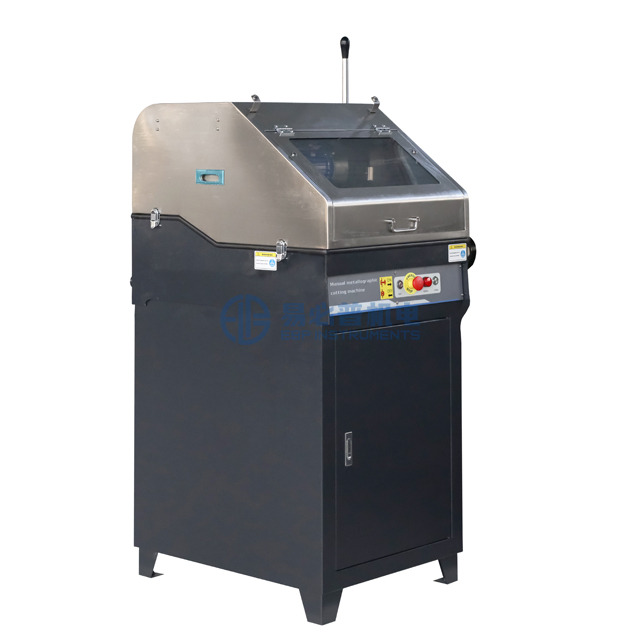

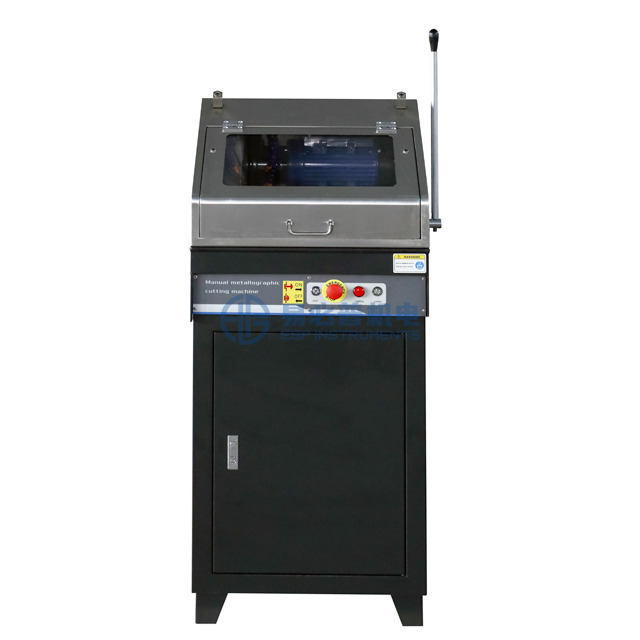

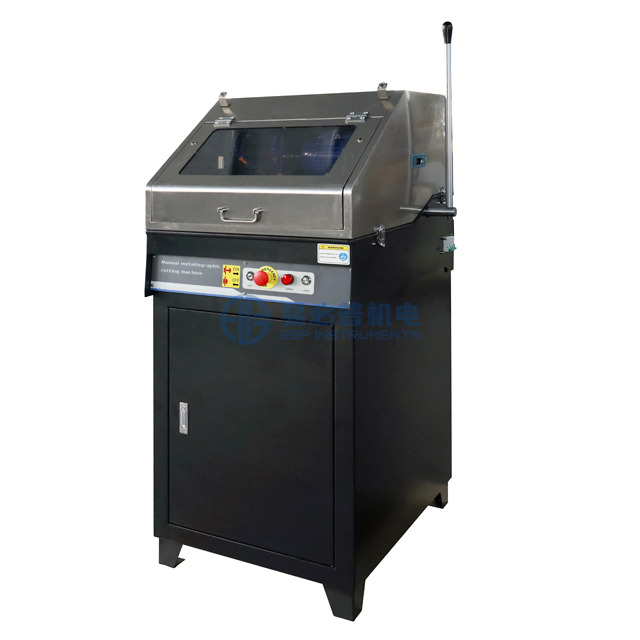

Metallographic sample manual cutting machine is suitable for the cutting of general metallographic and lithofacies sample materials. In order to ensure the sample cutting safety, it adopts totally-enclosed structure. Also it is equipped with cooling water tank for the recycling use of cooling liquid. The shell, jaw, working platform and other main parts are made of stainless steel, which can endure long time working life and is easy to maintain. Therefore it is ideal equipment for sample cutting work.
Product Features:
1. QGL-80C/100C Cutting Machine can be used to cut metal sample, electronic components, crystal and mineral materials.
2. The machine adopts closed structure, large observation window, use safe
3. Quick clamping mechanism for optional, easy to clamp sample
4. Have a special cooling water tank, for circulating cooling liquid
5. Main components such as jaw and work surface adopts stainless material, long service life
Main Technical Specifications:
Model | QG-80C | QG-100C |
Maximum cutting section | Φ80mm | Φ100mm |
Cutting Disc | 250*2*32mm | 300*2*32mm |
Motor power | 3.0KW | 3.0KW |
Net weight | 117kg | 120kg |
Machine size (not including cabinet) | 650*715*545mm | 680*800*820mm |
Rotation Speed | 2800rpm | |
Cutting room light | Low voltage dc lighting | |
Working table | T-slot working table, Left - Right double clamp vise | |
Power supply | 3 phase 4 lines / 380V, 50Hz | |
Cooling system | Outside water cooling system (can work with chiller) | |
Standard Accessories:
Item | Quantity |
QGL-80C / QGL-100C | 1 |
Cooling water box (including pump | 1 |
Wrench | 2 |
Water inlet | 1 |
Drain-pipe | 1 |
Pipe Clamps | 2 |
Cutting wheel | 2 |
Manual & Certificate | 1 |
