Introduction:
UTM-EW series (Dual Space) electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Features:
Multi-functions:
It can perform high-capacity tension, compression, bend, flexure and shear testing which in accord with the relative requirements of ISO, ASTM, DIN, NF, EN and many other national testing methods. Interchangeable fixture design, to meet requirements of different specimen materials and test type.
Extensive accessories:
Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.
Large test space:
Double acting crossbeam quickly accommodates specimens of varying lengths. In the case of additional length of columns, the maximum testing space is adjustable to meet extra length specimens.
High stiffness frame:
Preloaded ball screws, precision guidance columns, and a symmetrical drive system improve frame stiffness and alignment.
Over-Travel Limits:
Dual over-travel limits, located on the front console, help prevent crosshead overshooting and sensor overloads. A graduated rule along the column can be used to preset these limits to specific distances.
Safety system:
Features ensuring safety include the 2-channel (= double safeguard) safety circuit, operating-mode selector- switch, Drive Off switch and motor holding brake.
Application
Metal：
ASTM E8 Standard Test Methods for Tension Testing of Metallic Materials;
ISO 6892 Metallic materials —Tensile testing method of test at ambient temperature;
BS EN 10002-1Determination of tensile properties on metals;
ASTM E21: Standard Test Methods for Elevated Temperature Tension Tests of Metallic Materials;
IS0 783: Metallic materials -Tensile testing at elevated temperature;
EN ISO 7438 Determination of flexure tests on metals;
ISO 14589: Blind rivets - Mechanical testing;
ASTM F606: Standard Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners, Washers, Direct Tension Indicators, and Rivets
Plastics/ Composites:
ASTM D638Standard Test Method for Tensile Properties of Plastics
EN ISO 6259, EN ISO 527-1, ISO 604, ASTM D695, ASTM D3846, EN ISO 844, EN ISO 13968, EN ISO 9969, etc.
Geo-textiles:
ASTM D3950Standard Specification for Strapping, Nonmetallic; ASTM D 6775-02, BS EN ISO 10319, JBT 8521(EN 1492-2).
Rubber:
ISO 37Rubber, vulcanized or thermoplastics-determination of tensile stress-strain properties; ASTM D412, ASTM D624.
Specification:
Model | UTM-100EW |
Max Load | 100kN (10000kgf, 10 tons) |
Load Accuracy Class | ±1% Class 1 (optional: Class 0.5, Accuracy ±0.5%) |
Force Testing Range | 2%～100%F.S (optional 0.5 class: 0.4%～100%F.S) |
Load Resolution | 1/500000 Full Scale ((only one resolution for full scale, not graded)) |
Test Control Mode | 3 closed loop control (stress, strain and Displacement) |
Max. Tensile Testing Space | 700mm |
Max. Compression Testing Space | 700mm |
Test Width | 400mm |
Displacement Measurement Accuracy | ±1% |
Displacement measurement resolution | 0.001mm |
Deformation Measurement Accuracy | ±1% |
Resolution of deformation measurement | 0.001mm |
Displacement control speed range | 0.001～500mm/min |
Displacement control rate accuracy | When the rate is <0.01 mm/min, within ±1.0% of the set value; When the rate is ≥0.01 mm/min, within ±0.2% of the set value. |
Stress and strain control rate adjustment range | 0.005～5%FS/S |
Stress and strain control rate adjustment accuracy | Within ±2% of setting value for rate <0.05%FS; When the rate ≥0.05%FS, it is within ±0.5% of the set value. |
Main Machine body size | 853*550*1826mm |
Weight | 500kg |
Power | 1KW |
Power Supply | Single-phase 220V±10%, 50Hz |
Working Environment | No vibration, no dust; room temperature 10 ℃ ~ 35 ℃; humidity ≤ 90%; No vibration around, no corrosive medium, no strong magnetic field interference. |
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. |
Standard Accessories with Shipment:
No. | Name | Part Name | QTY. |
1.1 | Host Frame | 100kN, 6 column ( 4 stand rod and 2 ball screw frame structure)
Double space (up tensile,down compression, select different vice and fixture can achieve different functions) | 1 set |
1.2 | AC Servo Control System | Power: 1KW Optional: Panasonic Motor - Japan | 1 set |
1.3 | Ball Screw
| Taiwan, ABBA | 1 set |
1.4 | Synchronous Pulley
| Japan BANDO | 1 set |
1.5 | Synchro Belt
| Japan BANDO | 1 set |
2.1 | 100kN Precision Load Cell | Calibration can be carried out as per ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221 standards. | 1 set |
2.2 | Control System | Force, displacement and deformation closed loop control | 1 set |
2.3 | English Operation Software | Language supports: English (Other optional), built-in over 200 test standards | 1 set |
2.4 | Digital Handheld Unit Controller | 320 x 240 LED display: Can display Load, displacement, speed. Can control test start, test stop, test zero clearing and so on | 1 set |
2.5 | Computer | HP | 1 set |
2.6 | Printer | HP | 1 set |
3.1 | Manual Wedge Tensile Grip (pneumatic type or hydraulic type as optional) | Used for metal and non metal Material; Adopt inclined self-locking and rotating handle clamping | 1 set |
Flat Jaw
| Flat specimen Thick: 0-7mm; Optional: 7-14mm, 14-20mm | 1 set |
Round Jaw
| Round specimen standard: Φ4-Φ9mm Optional: Φ9-Φ14mm, Φ14-20mm | 1 set |
3.2 | Compression Test Grip | Φ100mm | 1 set |
Optional Accessories:
4.1 | 3-point Bending Fixture
| Used to materials 3-point bending test.
| 1 set |
4.2 | Electronic Extensometer
| Gauge length50mm; Deformation:10mm according to customer requirement
| 1 set |
4.3 | Long travel extensometer | Suitable for longitudinal deformation measurement in routine tensile test to non-metallic materials, such as rubber, water-proof materials, cloth, rope and soft plastics. Deformation:800mm, gauge length:20mm | 1set |
4.4 | USA Epsilon Extensometer | 3542 Series | 1 set |
4.5 | 90 degree peeling Grip | Do peeling / stripping test | 1 set |
4.6 | Safety shield | Fully enclosed aluminum alloy protective cover Organic glass and aluminum | 1 set |
Optional Purchase Automatic Hydraulic Grip System:

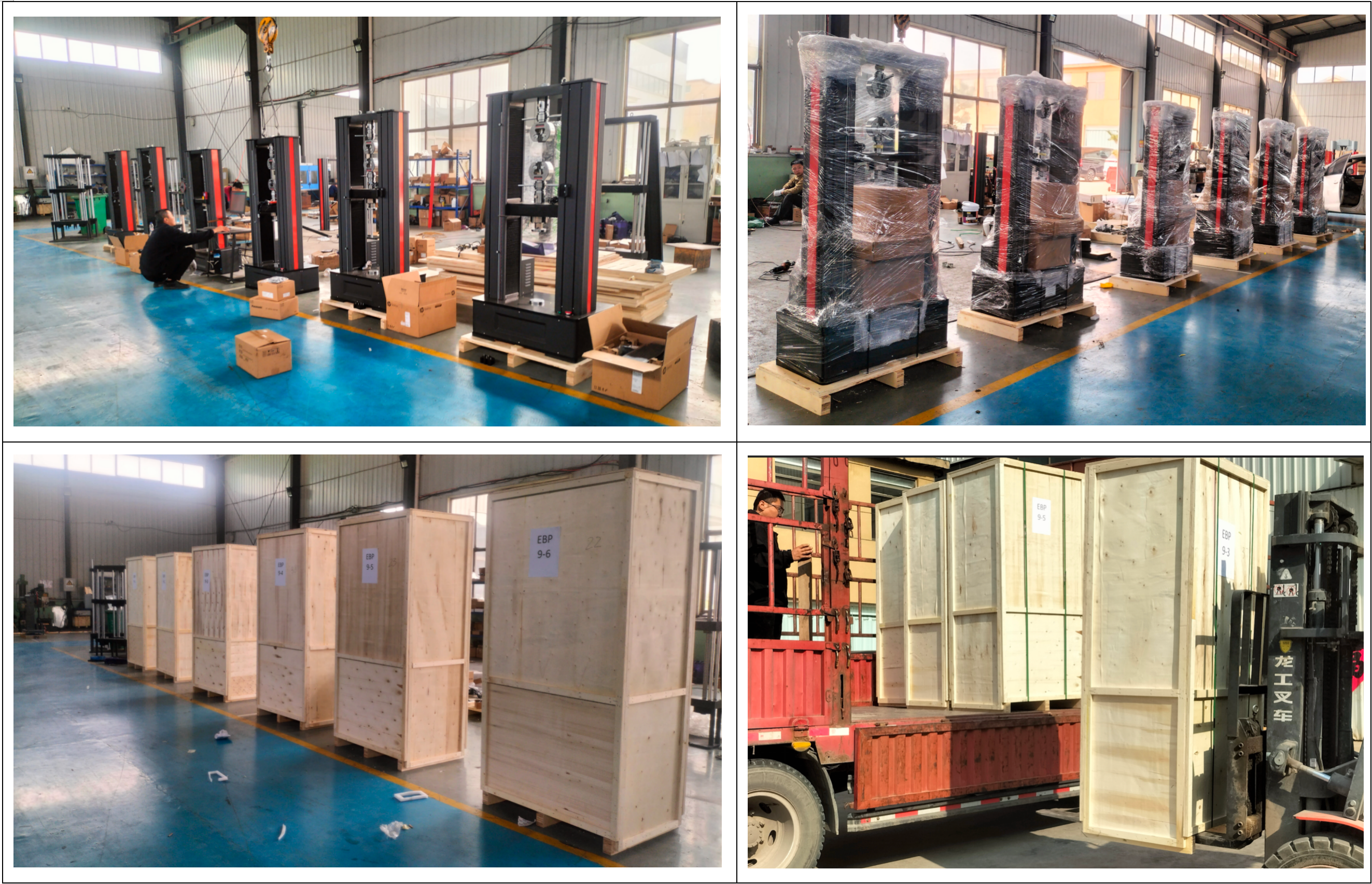

Packing Photos:
