MP-3000PS High-Pressure Cold Mounting Press | Fast Curing Metallographic Inlay Machine

Product introduction:

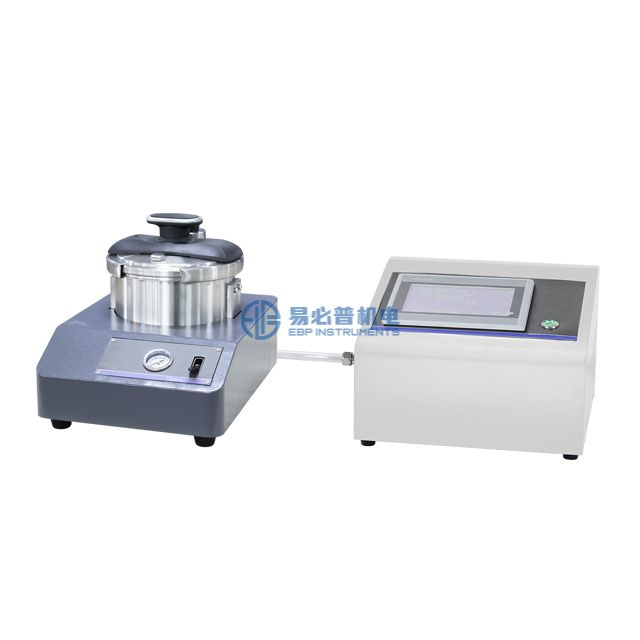

MP-3000PS pressure Cold mounting press machine is using a high strength pressure pot and built-in air pump, it’s a special metallographic inlay device designed to meet the special requirement of quick curing of inlay resin. By using this equipment, the bubbles and pores in the embedded samples can be greatly reduced without changing the physical and chemical properties of the resin, thus providing the best results for subsequent sample polishing and micro-structure analysis.

Features:

1. Built-in air compressor, quickly reach the working pressure of 0.2Mpa (2 atmospheres).

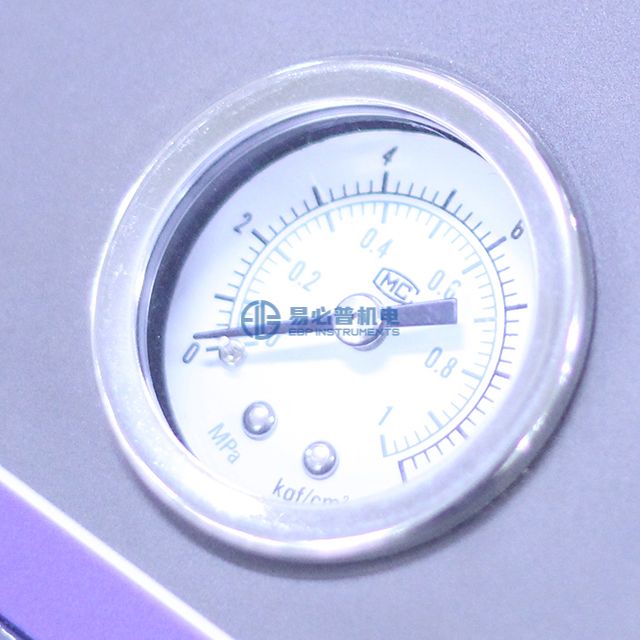

2. Pressure digital display, and automatic control. After reaching the set pressure value, the automatic air pump automatically stops, and after the pressure drops a certain value, the air pump automatically starts.

3. Operation more safer: triple insurance of Built-in pressure control, pressure relief valve and safety valve.

When there is pressure in the pot, the lid is automatically locked, i.e. the lid cannot be opened when working.

When the pressure exceeds 10% of the working pressure, the safety valve at the top of the container immediately and automatically releases the pressure.

4. Built-in air pump, low noise, no oil, no pollution, no maintenance.

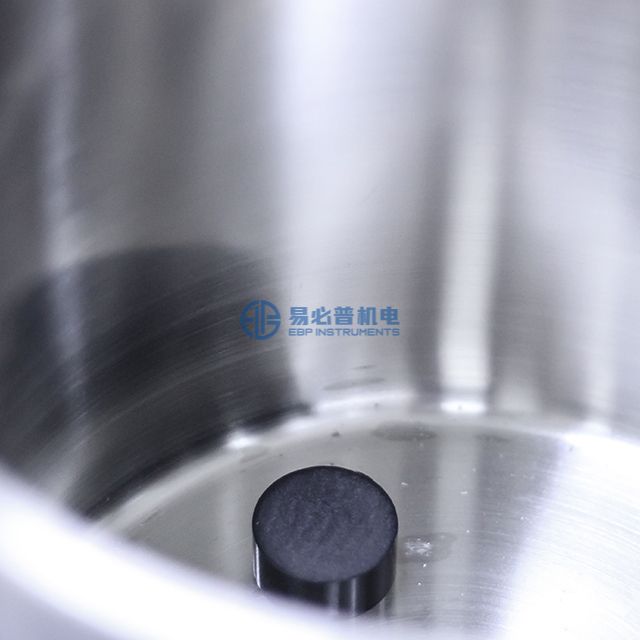

5. The pressure vessel is made of stainless steel, with large inner chamber capacity, which can handle more than 20 samples of 30mm diameter at the same time.

6. Special bleeder valve, can implement multiple cycles of pressurization, bleeding mosaic process.

7. Self-timer, automatic pressure relief after the completion of the mosaic to.

Technical specification:

Standard accessories:
