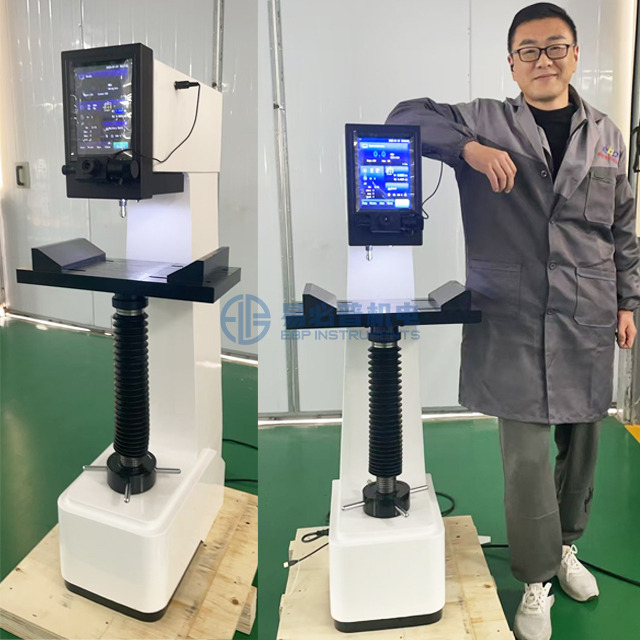

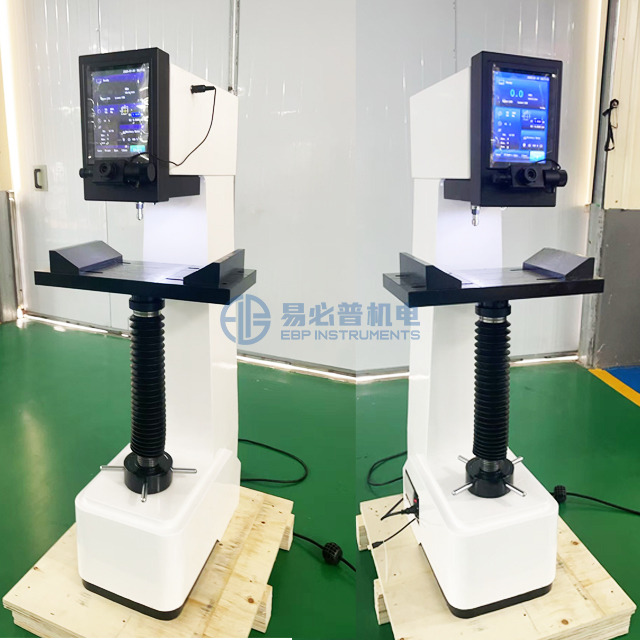

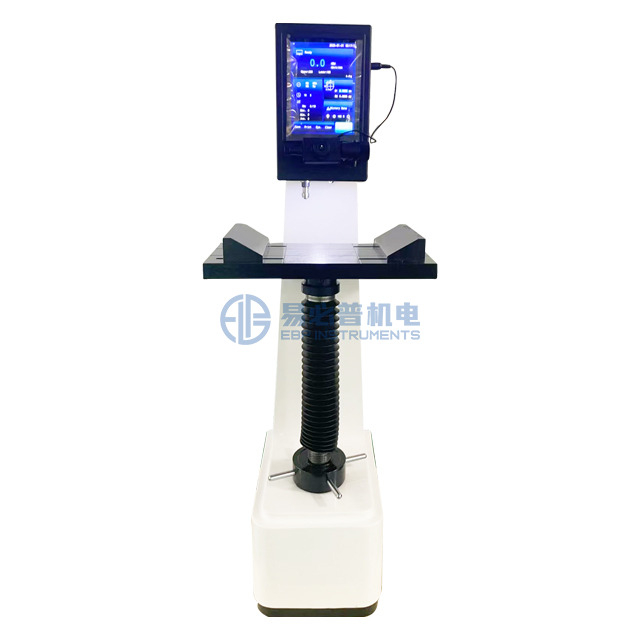

HB-503
EBP INSTRUMENTS
Shanghai
30 sets per month
TT in advance
1 set
Features:
1. Large test force range: 62.5Kgf to 3000Kgf
2. With 10 kinds of measurement scale
3. Allowed sample height 500mm, indenter to machine body distance is 165mm.
4. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.
5. Indenter can move down after press start key, no need manual give initial load. For batch inspection of the same size sample will very easily, just put sample on the work table, then press start key machine will automatic test, no need manual adjust screw rod. Makes testing work more easier and high efficiency.

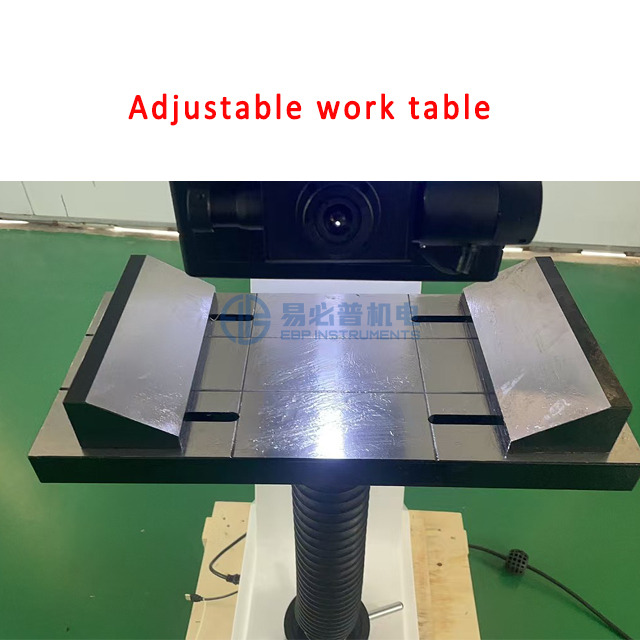

6. Table vice can be adjust distance for hole different size samples (Optional).
7. Measuring indentation automatically, no need to focus
8.Hardness value display on screen, and with hardness conversion function
9. One-time casting machine body with car painting design, structure more stable and looking more beautiful
10. Digital eyepiece with built-in encoder, just click the encoder button indentation length will input to machine automatically, and machine automatically calculate the hardness value.
11. Touch screen interface, menu structure interface, more information display
12. Modular design, easy maintenance
13. Low noise test process, suitable work at in research labs, school, Industrial plant, etc.
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Technical Specifications:
Model | HB-503 |
Turret | Automatic turret |
Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500 HBW10/1000, HBW10/1500, HBW10/3000 |
Load Kgf(N) | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
microscope magnification | 20X |
Min measuring unit | 0.625µm |
Dwell time | 1-99s |
Hardness range | 8-650HBW |
Data output | Touch screen display |
Test space | 500*165mm (Height * Depth) |
Power supply | AC220+5%,50~60Hz |
Packing Size & GW | 740*610*1460mm, 253kg |
Executive Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 |
Standard Accessories:
Item | Quantity | Item | Quantity |
Measuring microscope 20X | 1 | Diameter 2.5mm Hard alloy indenter | 1 |
Accessories box | 1 | Diameter 5mm Hard alloy indenter | 1 |
Anti dust cover | 1 | Diameter 10mm Hard alloy indenter | 1 |
V-type working table | 1 | Medium working table Ø80mm | 1 |
Hardness block | 2 | Large working table Ø240mm | 1 |
Manual book | 1 | Quality certificate | 1 |
Brinell Indentation Automatic Measuring and Analysis Software (optional purchase）
1. Indentation automatic measurement, real-time calculation of accurate hardness value and indentation diameter, good repeatability, high accuracy, wide applicability, while supporting manual measurement and manual adjustment.
2. The brightness, contrast and lighting system can be adjusted, and the parameter values can be saved and imported for different sample surfaces.
