EMUT-1
EBP INSTRUMENTS
Shanghai, China
300 Sets Per Month
T/T in advance
1 set

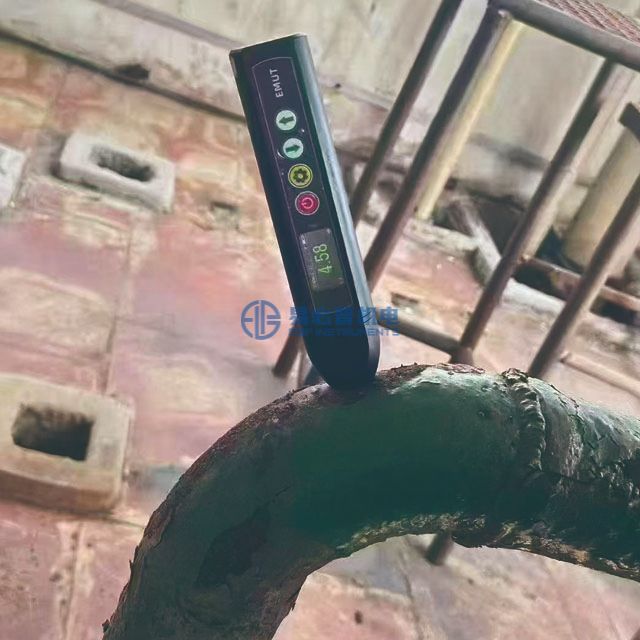

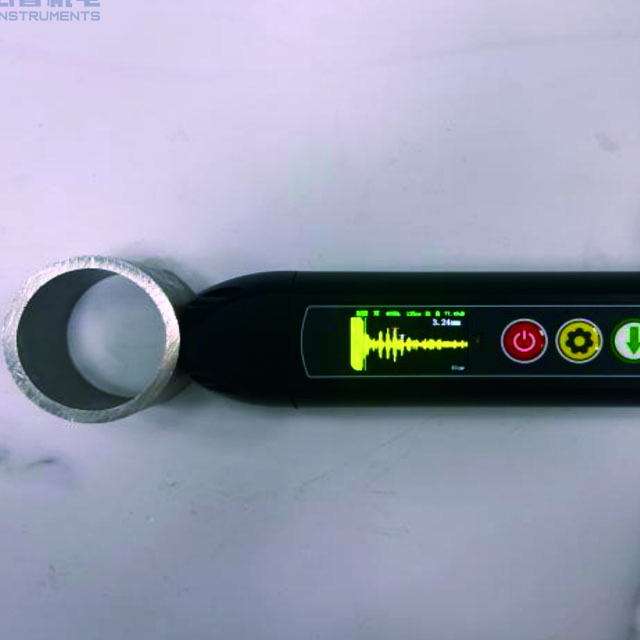

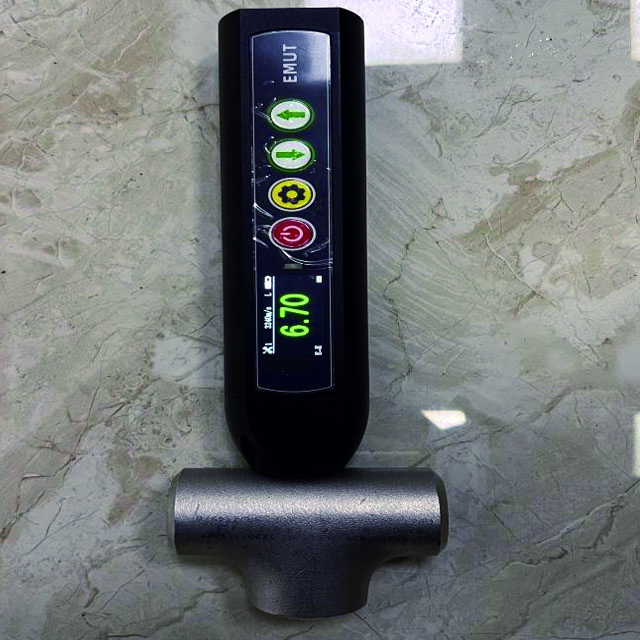

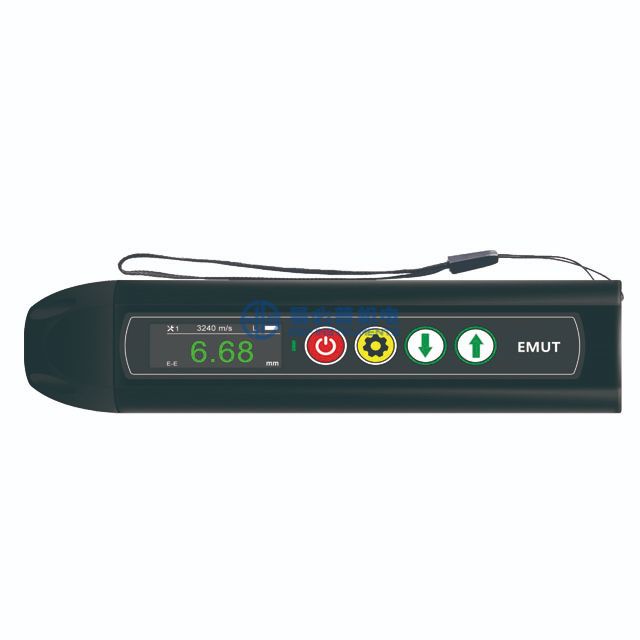

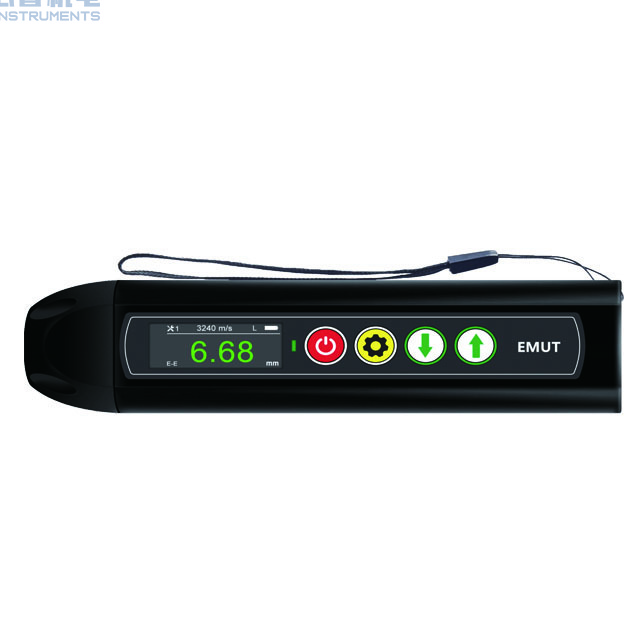

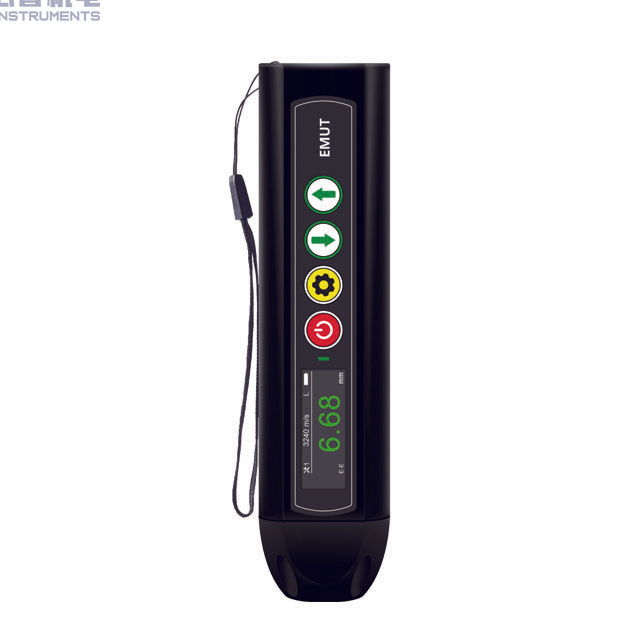

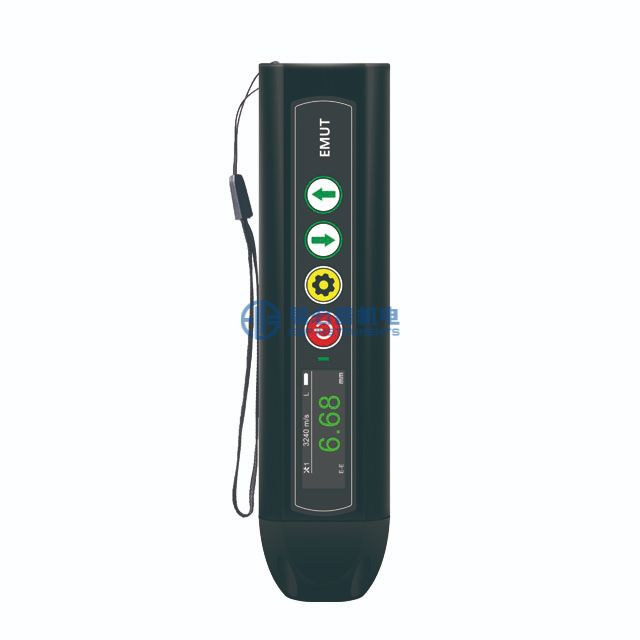

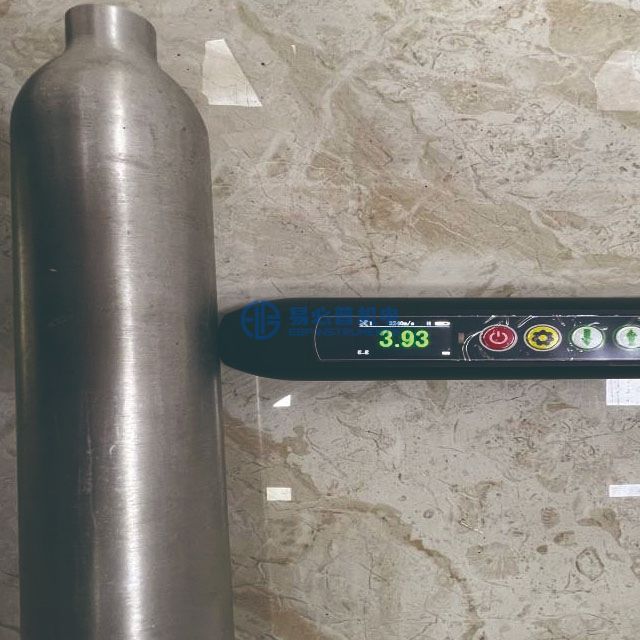

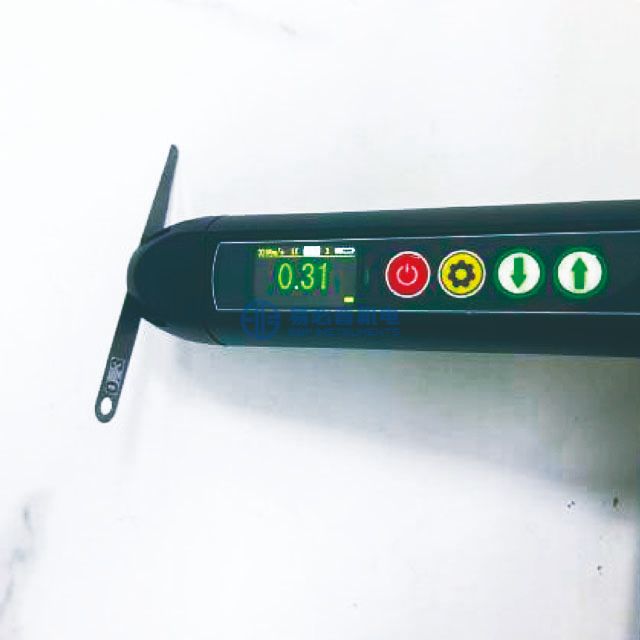

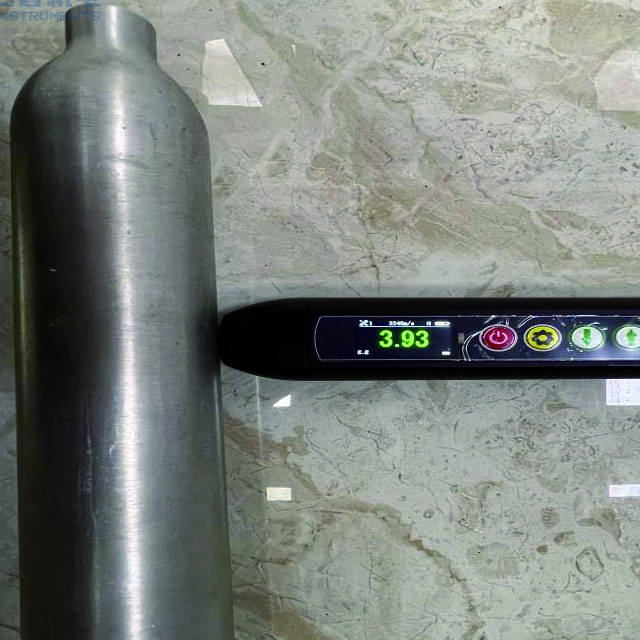

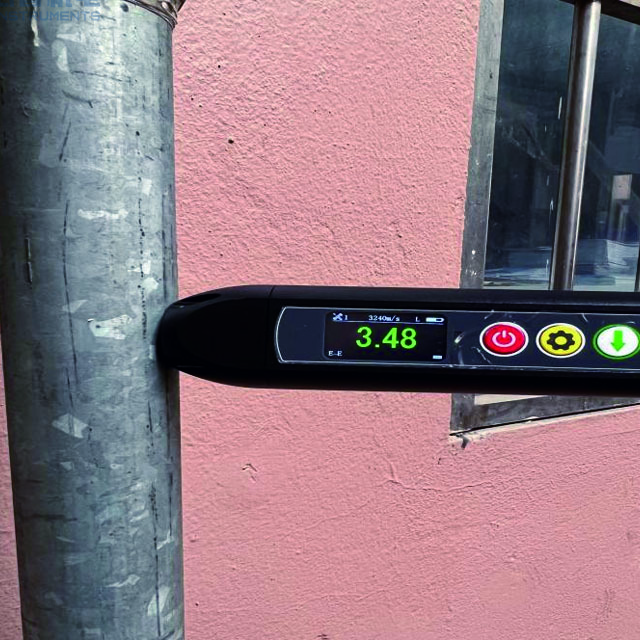

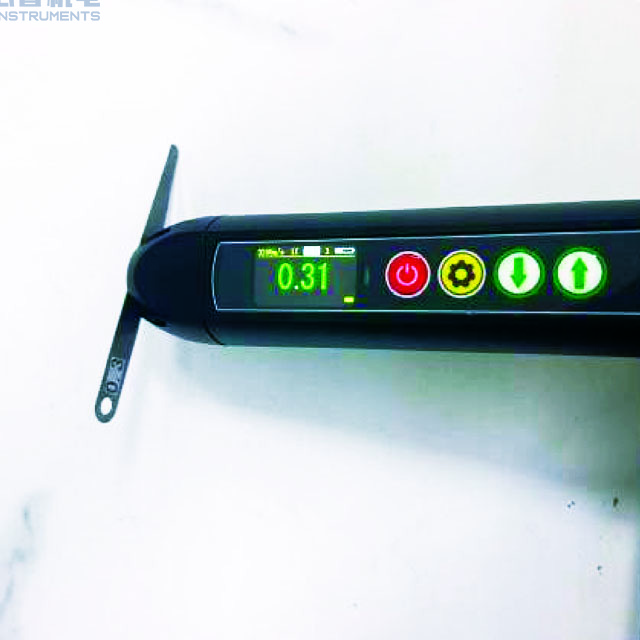

Electromagnetic ultrasonic thickness gauge is a ultra small, non-contact thickness measurement device that does not require acoustic coupling agents. It can measure the thickness of metal or magnetic materials.
Product Features:
1) Small size and easy to carry.
2) The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.
3) It is insensitive to the coating and can realize the thickness measurement of coated workpiece.
4) No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.
Basic Parameters:
Model | EMUT-1 |
Sampling rate | 80MSPS |
Bandwidth | 2.5MHz～6MHz |
Launch | ± 600V_400Hz_125ns |
Gain | Automatic 0～96dB, pace 1dB |
Measurement accuracy | ±0.01mm
|
Sound velocity Range | 400～9999 m/s |
Effective range | 1.0～320mm |
Average level | L, M, H three-level adjustable |
Lifting distance | 4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel) |
Measurement type | Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials |
Measurement mode | Single echo(I-E), Dual echo(E-E) |
Auxiliary functions | Auto freeze, Auto gain, Auto sleep, Metric and British switching, Sound velocity saving, Backlight adjustmen |
Revised function | sound velocity calibration, high temperature compensation |
Communication Interface | RS-485 or USB2.0 |
Charger | 5V2A, Standard Type-C interface |
Display screen | 1.47 inch 320×172 IPS_LCD |
Dimension | 178.4mm×42mm×32mm |
Battery life | 3.7V 3400mAh Lithium battery, 6 hours of battery life |
Bare weight | A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g |
Standard Configurations:
Serial number | Name | Quantity | Remark |
1 | Host | 1 | |
2 | Normal temperature probe | 1 | 4MHz，Φ42mm*32mm |
3 | Charging data cable | 1 | |
4 | Charging plug | 1 | |
5 | Manual | 1 | |
6 | Iron based test block | 1 | |
7 | Aluminum based test block | 1 | |
8 | Packing box | 1 |
Optional Configuration （You can choose to order according to your needs, which is not included in the standard configuration）
Serial number | Name | Quantity | Remark |
1 | High temperature probe | 1 | 4MHz，Φ33mm*40mm |
2 | Small diameter normal temperature probe | 1 | 4MHz，Φ13mm*36mm |
3 | Large diameter normal temperature probe | 1 | 4MHz，Φ40mm*60mm |
