BRV-250T
EBP INSTRUMENTS
Shanghai, Shenzhen, Hongkong
60 sets
TT in advance
1 set
Main Features:
1) Equipped Brinell, Rockwell, Superficial Rockwell, Vickers test methods;
2) 8 inch Touch-screen interface, easy to operate
3) Close loop, with high accuracy load cell, no need install weights;
4) Test force automatic correction, each file is automatically compensated force, improve the accuracy of the force a number of levels;
5) According to GB / ASTM hardness automatic conversion;
6) Rockwell automatically correct curvature radius;
7) Set a password to protect setup parameters, more samples and testing information;
8) Measuring U disk to save data to EXCEL format for easy editing and processing.
9) Modular design for easy maintenance.
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Technical Specification:
Brinell Scale | HBW1/5, HBW2.5/6.25, HBW1/10, HBW2.5/15.625, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW10/100, HBW5/125, HBW2.5/187.5, HBW5/250, HBW10/250 (select 10 scales) |
Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
Superficial Rockwell Scale | 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y |

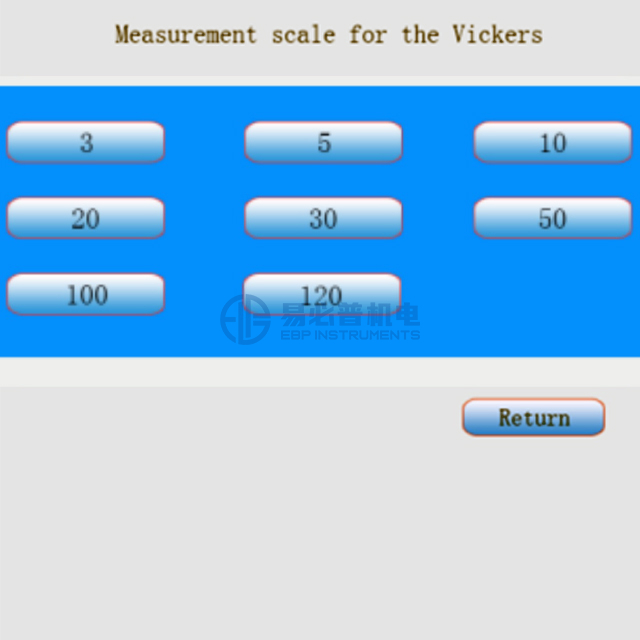

Vickers Scale | HV3, HV5, HV10, HV20, HV30, HV40, HV50, HV60, HV80, HV100, HV120 (select 10 scales) |
Test force | Rockwell: 60kgf(588N), 100kgf(980N), 150kgf(1471N); Initial test force:10kgf(98N); Superficial Rockwell: 15 / 30 / 45kgf ; (147.1 /294.2 / 441.3N); Initial: 3Kgf(29.42N) Brinell: 5kgf(49N), 6.25kgf(61.25N), 10kgf(98N), 15.625kgf(153.125N), 30kgf(294N), 31.25kgf(306.25N), 62.5kgf(612.5N), 100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N), 250kgf(2450N); Select 10 force Vickers: 3kgf(29.4N), 5kgf(49N), 10kgf(98N), 20kgf(196N), 30kgf(294N), 40kgf(392N), 50kgf(490N), 60kgf(588N), 80kgf(784N), 100kgf(980N), 120kgf(1176N) ; Select 10 force |
Hardness resolution | 0.1HR, 0.1HBW, 0.1HV |
Holding Time | 1-99S |
Allowed maximum sample size (test space) | Allowed max. Sample height in vertical: 220mm(for Rockwell); 150mm(for Vickers & Brinell test mode); Allowed max. Sample height in horizontal: 200mm |
Magnification | Eyepiece: 15X, 2.5X (for Brinell), 5X (for Vickers) (10X, 20X for optional) Total magnification: 37.5X, 75X |
Hardness read | Touchable LCD display, USB Flash Disk |
Power supply | AC220V, 50-60Hz |
Implementation of the standards | ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2 ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2 ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2 |
Dimensions | Machine size: 560*350*800mm Packing size: 730x450x910mm |
Weight | N/W: 70kg; G/W: 99kg |
Standard Accessories：
Part name | Quantity | Name | Quantity |
15X eyepiece | 1 | Brinell indenter diameter of 2.5mm, 5mm, carbide ball | 1 each |
Vickers indenter | 1 | Rockwell 1.588 carbide ball indenter | 1 |
Rockwell diamond indenter | 1 | Objective Lens 2.5 x, 5x | 1 each |
Hardness block | 8pcs | Exterior lighting | 1 |
Power line | 1 | Large, medium, V-test sets | 1 each |
Sliding test sets | 1 | U disk (with an Operation manual) | 1 |
Fuse 2A | 2 | Adjust level screw | 4 |
Dust proof cover | 1 | Accessory box | 1 |
