High Precision Metal Cutting Bandsaw | Fast, Accurate & Efficient Cutting Machine

Share to:

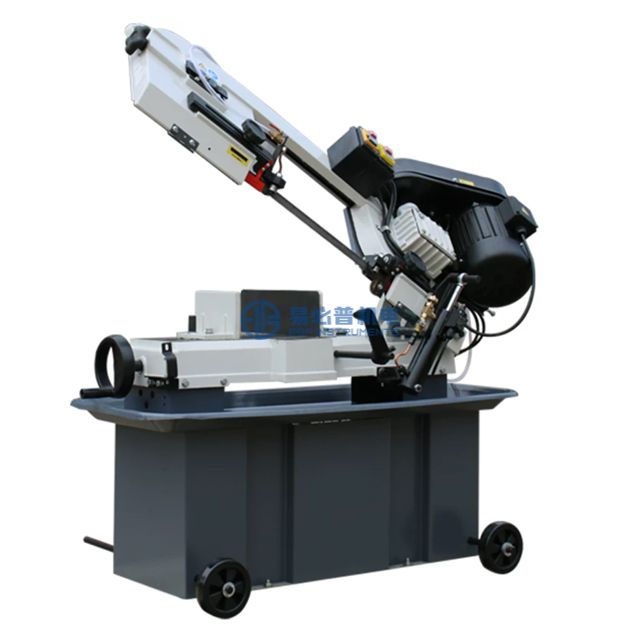

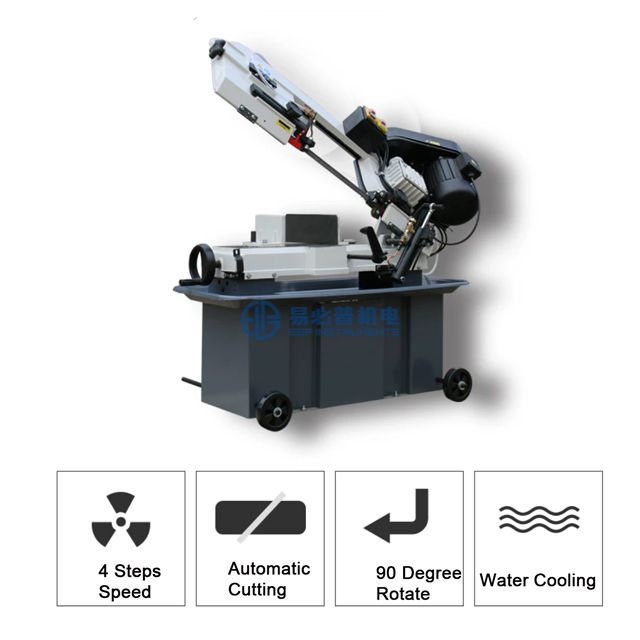

High Precision Metal Cutting Bandsaw | Fast, Accurate & Efficient Cutting Machine

Cut300 cutting bandsaw can cut various materials such as copper, aluminum, stainless steel, cast iron, carbon steel, No. 45 steel, and ordinary steel, as well as plastics and wood.

Availability:



Inquire Add to Basket

Model:
Cut300
Brand:
EBP INSTRUMENTS
Port:
Shanghai, China
Production Capacity:
30 Sets Per Month
Payment Terms:
TT in advance
Min. Order:
1 set

Product Description

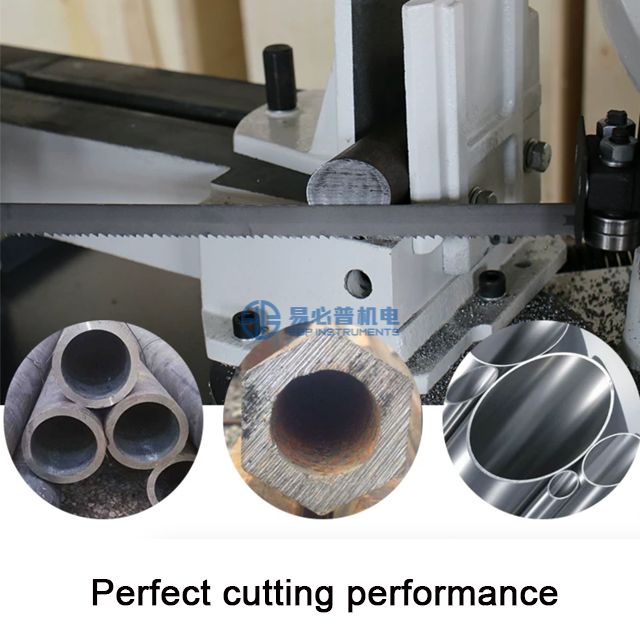

Cut300 cutting bandsaw can cut various materials such as copper, aluminum, stainless steel, cast iron, carbon steel, No. 45 steel, and ordinary steel, as well as plastics and wood.

Round material:

Maximum cutting diameter 180mm, 45-degree maximum cutting diameter 110mm;

Square material:

Maximum cutting diameter 300*180mm, 45-degree maximum cutting diameter 180*110mm.

Technical specification

Model	Cut300
Cutting capacity	1) Round sample: Ø180mm, 45˚ cutting: 110mm 2) Square ample: 300180mm, 45˚ cutting: 180110mm
Cutting speed	34 / 41 / 59 / 98 m/min
Cutting angle	0-45˚
Saw blade size	2360200.9mm
Saw tooth	8 teeth/inch
Motor voltage	220V / 380V
Motor power	1100W

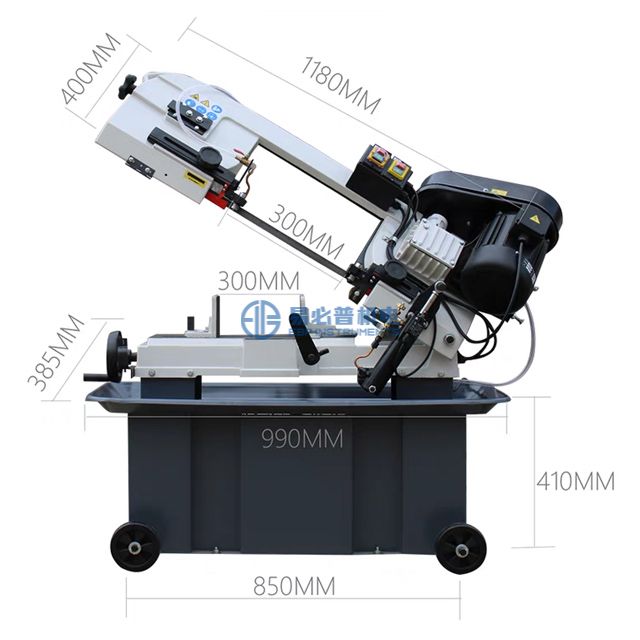

Machine size & Net weight	Size can check above photo; 150kg
Packing size & Gross weight	12604601080mm, 170kg

metal cutting bandsaw horizontal bandsaw machine automatic bandsaw steel cutting machine metal sawing machine metal Cutting Machine industrial bandsaw cutting machine for metal bandsaw for workshop CNC bandsaw
