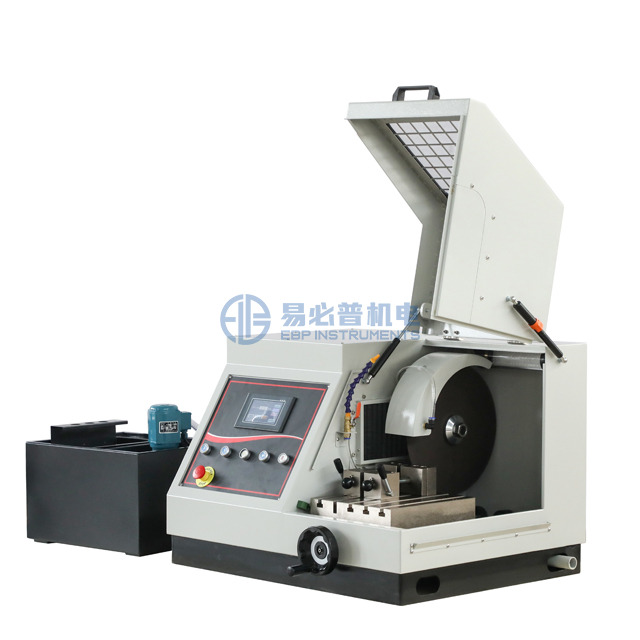

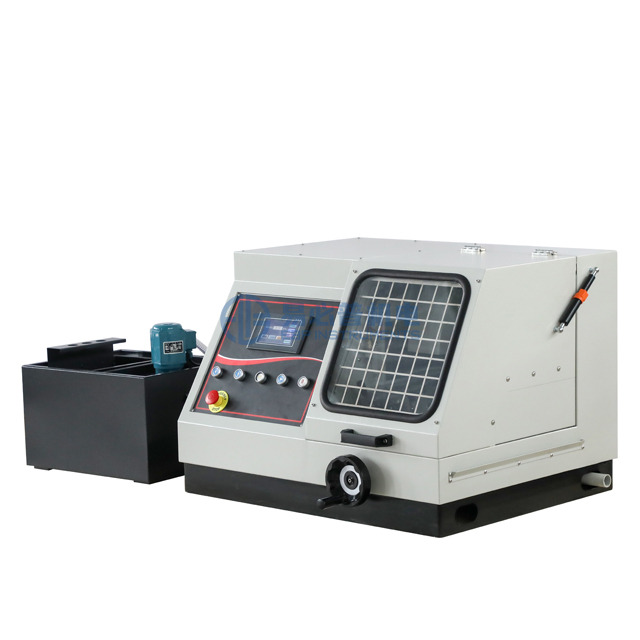

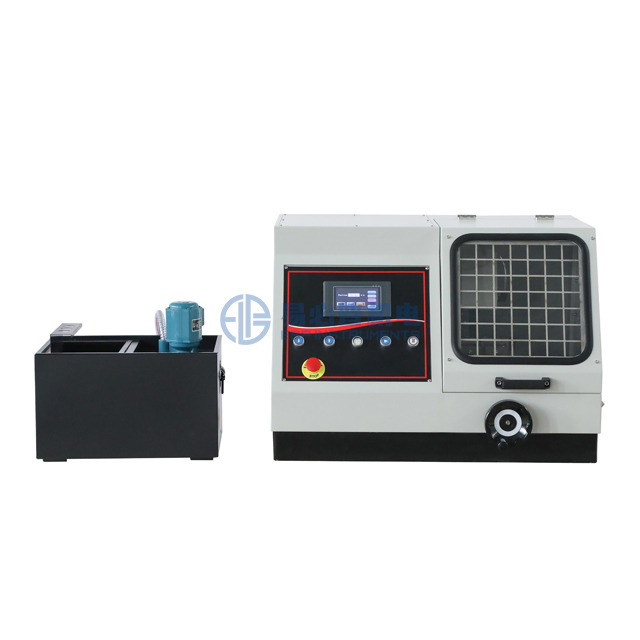

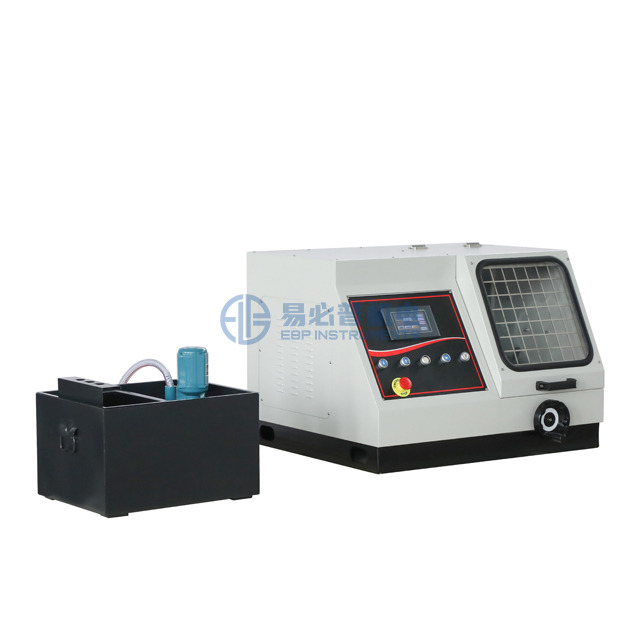

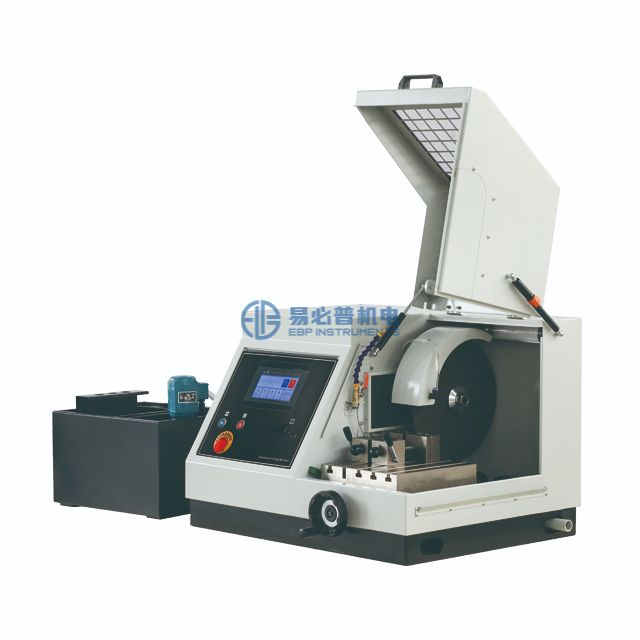

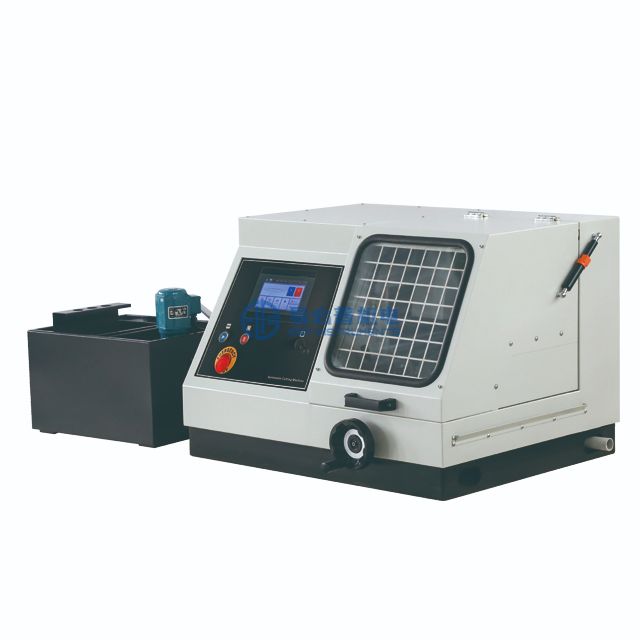

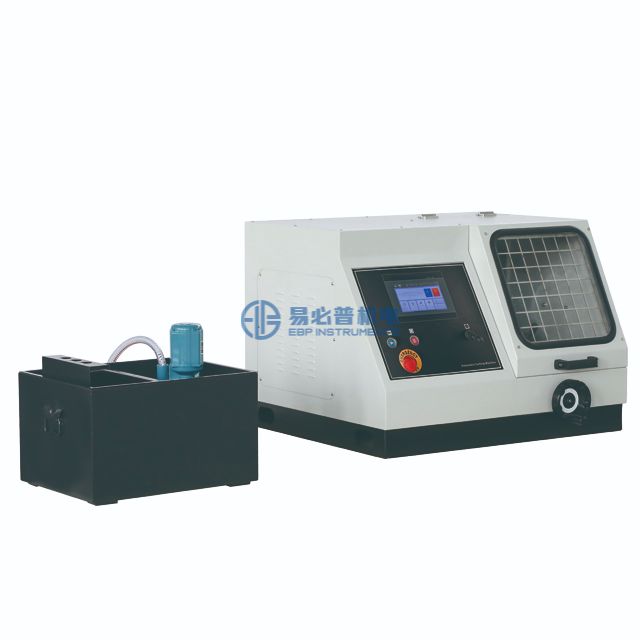

Precision Automatic Metallographic Sample Abrasive Cutting Machine eCM-350AT

eCM-350AT high precision Cutting Machine with automatic work mode and manual work mode;
Can not only cut circular workpieces with a diameter of less than 100mm, but also can cut rectangular samples with a height of 100mm and a depth of less than 200mm;
Quick clamping mechanism, easy to clamp sample;
Close structure, observe window with metal mesh, ensure safety operation.
Based on cutting material can optional select diamond cutting wheel.
Availability:
  • eCM-350AT

  • EBP INSTRUMENTS

  • Shanghai, China

  • 30 Sets Per Month

  • TT in advance

  • 1 set

Product Features:

1. eCM-350AT high precision Cutting Machine with automatic work mode and manual work mode;

2. This machine is composed of body, electric control box, cutting room, motor, cooling system, cutting wheel and other components;

3. Can not only cut circular workpieces with a diameter of less than 100mm, but also can cut rectangular samples with a height of 100mm and a depth of less than 200mm;

4. The cooling system to prevent the sample from overheating and burning the tissue during the cutting process;

5. The machine adopts closed structure, large observation window with high-strength explosion-proof rating and with a metal mesh for protection, ensure safe;

6. Quick clamping mechanism, easy to clamp sample

7. Main components adopts stainless material, long service life

8. Emergency stop button, ensure more safe operation.

9. The shell of the machine is sprayed with plastic treatment, making the machine more beautiful in appearance and has a good anti-corrosion


Main Technical Specifications:

Model

eCM-350AT

Cutting wheel

φ350*2.5mm*φ32

Maximum cutting diameter

Φ100mm

The maximum movement of the table in Y axis

275mm

Spindle Speed

2300r/min

Cutting speed

0.01 - 1mm/s

Cutting table size

310*280mm (move follow Y Axis, Optional: X axis for cutting pieces)

Fixture

Fast clamp fixture

Feeding mode

Automatic mode: Cutting wheel move automatically in Y axis (forward - backward), automatic return to original position after cutting work done.

Manual mode: Rotate handwheel move work table forward - backward in Y axis

Automatic cutting method

Intermittent cutting (metal workpiece) and continuous cutting (non-metal workpiece)

Reset mode

Automatic reset

Observe window

High-strength explosion-proof rating window + metal mesh

Cooling system

Automatic water cooling with 3 channel

Water tank

60L

Feed depth tracking

LCD digital display

Cutting chamber housing

Steel plate

Cutting room light

Low voltage dc LED lighting

Motor Power

3kW

Voltage

380V, 50Hz, Three-phase four-wire (optional 220V)

Machine size / weight

900x790x600mm; 210kg

Packing size / Weight

Cutter: 110*94*80cm,  242kg;                                   Water tank: 54*46*46cm, 27kg


Standard Accessories:

Item

Quantity

eCM-350AT

1

Cooling water tank (including pump)

1

Wrench (12-14mm, 24-27mm, 36mm)

3

Water inlet φ25×1.5m

1

Drain-pipe φ32×1.5m

1

Cutting wheel 350*2.5*32mm

2

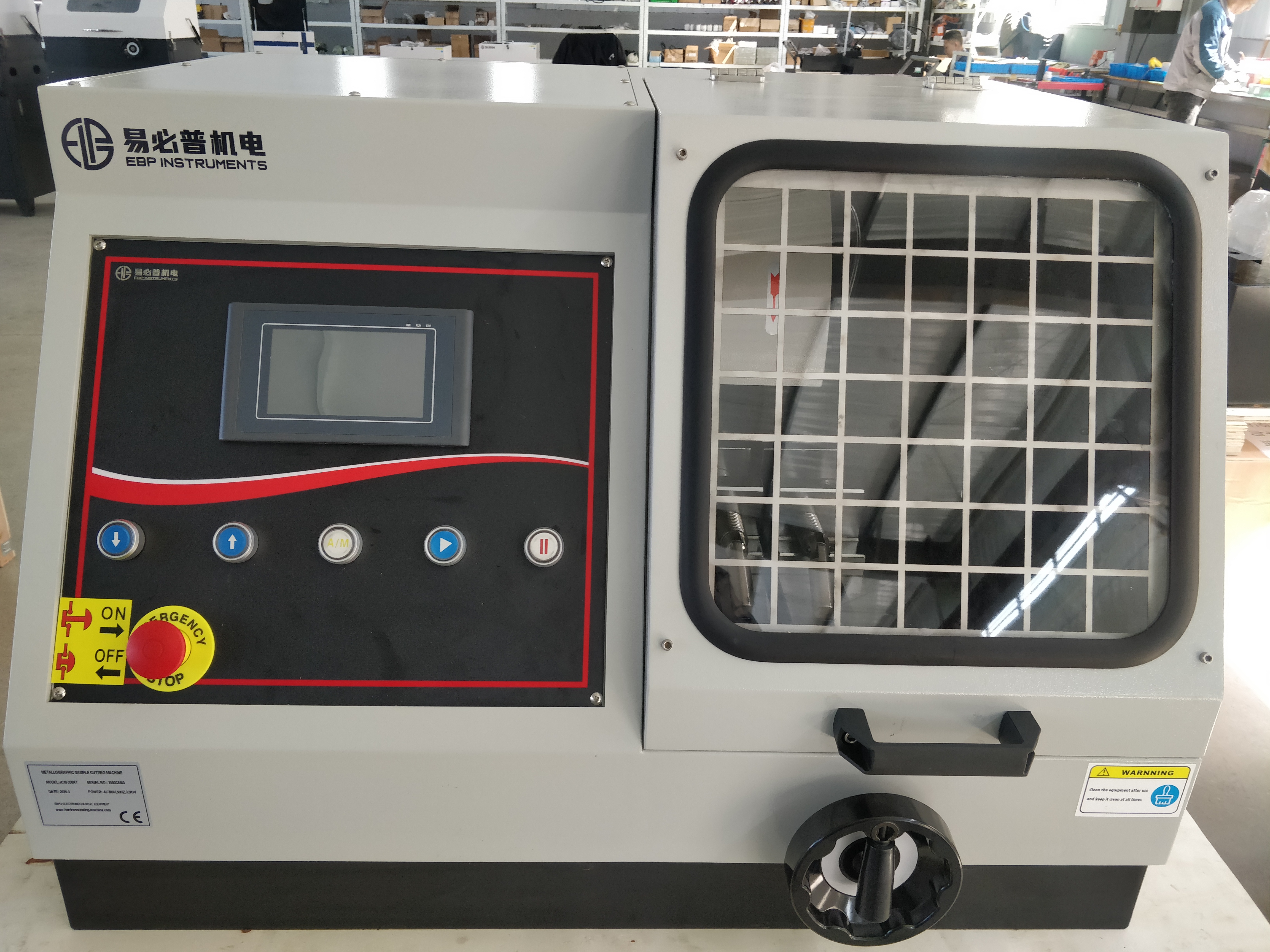

metallographic abrasive cutting machine

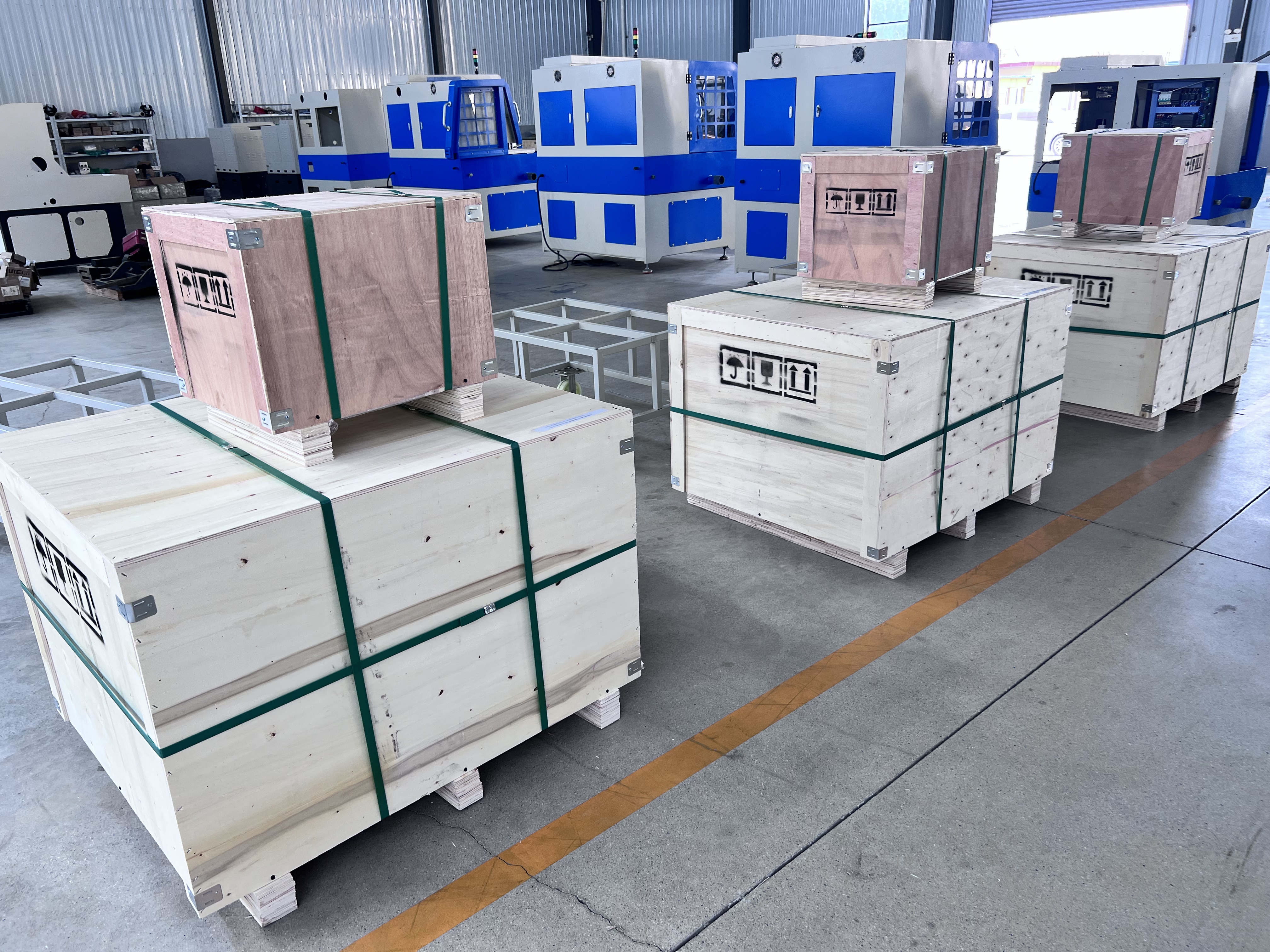

metallographic abrasive cutting machine packing
