Operation demo video:
In the process of metallographic sample preparation, the grinding and polishing of the sample is an indispensable process. After the sample is ground and polished, a bright mirror-like surface can be obtained. The metallographic sample grinding and polishing machine adopts a frequency converter to adjust the speed, which can make the speed of the grinding and polishing disc infinitely adjustable between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. It is especially suitable for metallographic laboratories in factories, colleges and research institutes, and is an excellent equipment for grinding polishing metallographic samples.
Features:
1. One machine can do the rough grinding, fine grinding, rough polishing and fine polishing of metallographic specimens.
2. Double working plates φ250mm, double times improved working efficiency.
3. Pneumatic version automatic grinding head, one time can process 6 pieces of samples (4 pieces of GP-3A).
4. Integral moulding of high-strength FRP material shell, sturdy and durable, never rusty.
5. The faucet adopts copper material, which has good corrosion resistance
6. Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs.
7. With water cooling system to prevent damage to the metallographic structure due to overheating of the sample. And can get more better metallographic surface easily.
Specification:
Model | GP-3A | GP-3B |

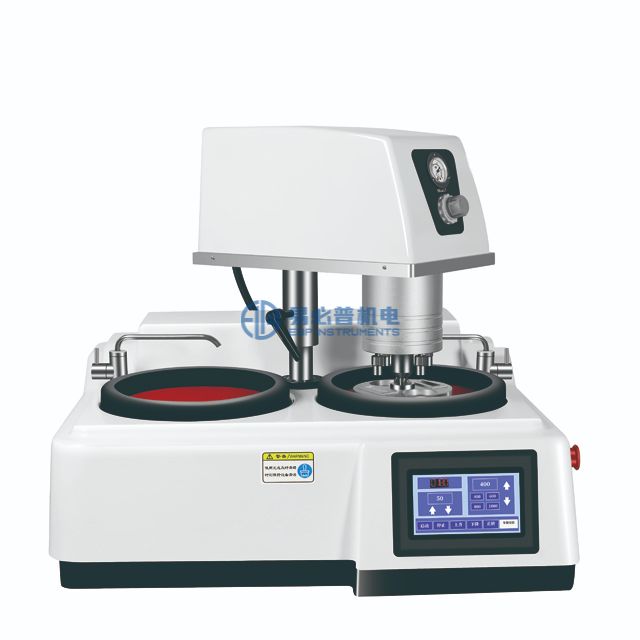

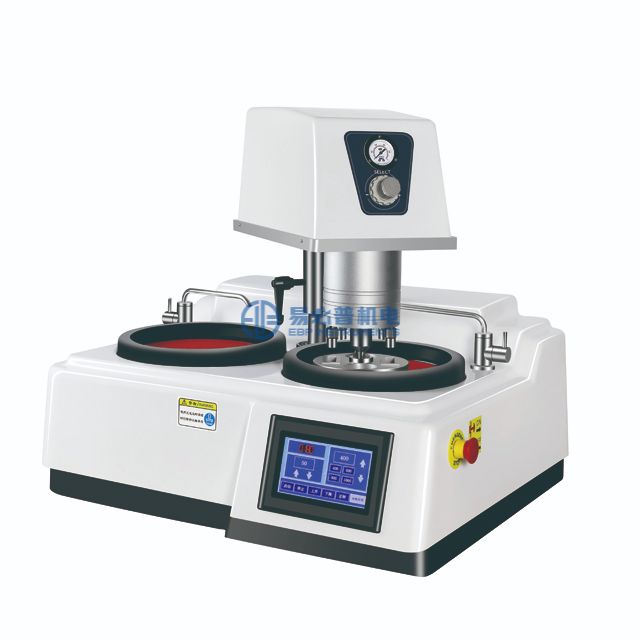

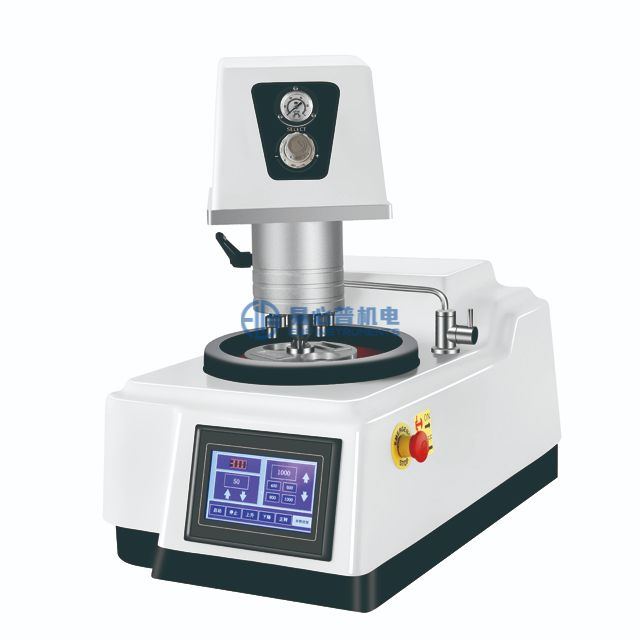

Disc number | Single disc | Double disc |
Grinding polishing plate Diameter | φ250mm (optional φ203mm, 230mm) | φ250mm (optional φ230mm, 300mm) |
Sample number | 4 pieces φ30mm sample | 6 pieces φ30mm sample |
Disc Rotate Speed | 50-1000r/min (stepless adjustable) and 4 constant speed (400rpm, 600rpm, 800rpm, 1000rpm) |
Automatic grinding head | 5-150 rpm (stepless speed) |
Sample holding type | Single point pressure loading |
Force loading | Pneumatic (should work with air compressor) |
Loading force range | 0-0.7Mpa (factory setting is less than 0.2MPa) |
Motor power | 0.9KW |
Machine Size (L*W*H) & N/W | 455*785*700mm, 70kg | 790*740*700mm, 90kg |
Package size & G/W | 950*680*870mm, 90kg | 920*820*840mm, 115kg |
Power Supply | Single phase, AC 220V 50Hz |
Packing List:
Name | Quantity |
Grinding plate Φ250 (on machine) | 1pc of GP-3A; 2pcs of GP-3B |
Water retaining ring (on machine) | 1pc of GP-3A; 2pcs of GP-3B |
Abrasive paper φ250 | 2pcs |
Polishing cloth φ250 | 2pcs of GP-3A; 8pcs of GP-3B |
waterproof ring | 1pc of GP-3A; 2pcs of GP-3B |
Pressure-resistant tube φ8 | 1pc |
Oil-water separator | 1pc |
Magnetic disc | 1pc of GP-3A; 2pcs of GP-3B |
Anti-stick disc | 3pc of GP-3A; 5pcs of GP-3B |
Water inlet pipe + Water outlet pipe | 1pc + 1pc |
Level adjust screw | 4pcs |
Power cord | 1pc |
Anti-dust lid | 1pc of GP-3A; 2pcs of GP-3B |
Manual | 1 pc |
Certificate | 1 pc |
