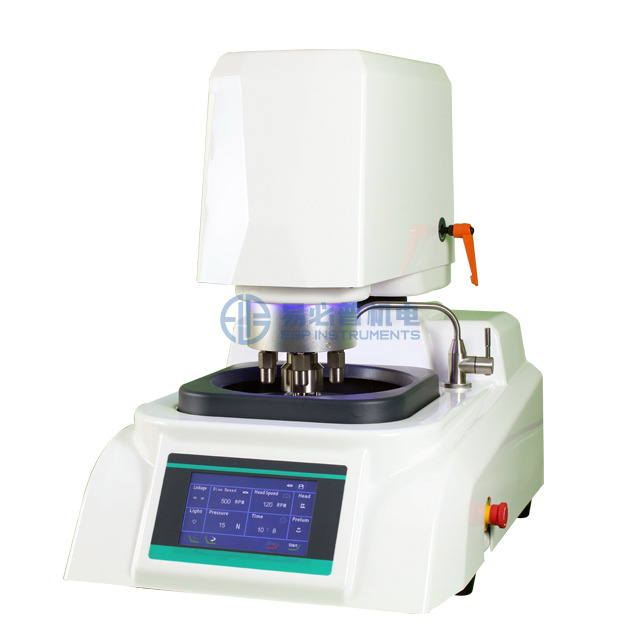

GP-1Z Advanced Metallographic Sample Gringding Polishing Machine with Load Control

Product Feature:

1. Can set time (Countdown, automatic stop), set speed (stepless speed 100-10000rpm), set pressure in Newton.

2. Support automatic and manual work mode, linkage mode to use manual work and not linkage mode use automatic polishing machine.

3. Super cost-effective, stable quality, complete functions, DIY can be customized according to different requirements of customers.

4. Single working plate, standard plates dimension 254mm, 50% larger than normal grinding - polishing machine

5. One time can polishing 4 pieces of diameter 30mm samples (6 pcs for optional).

6. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.

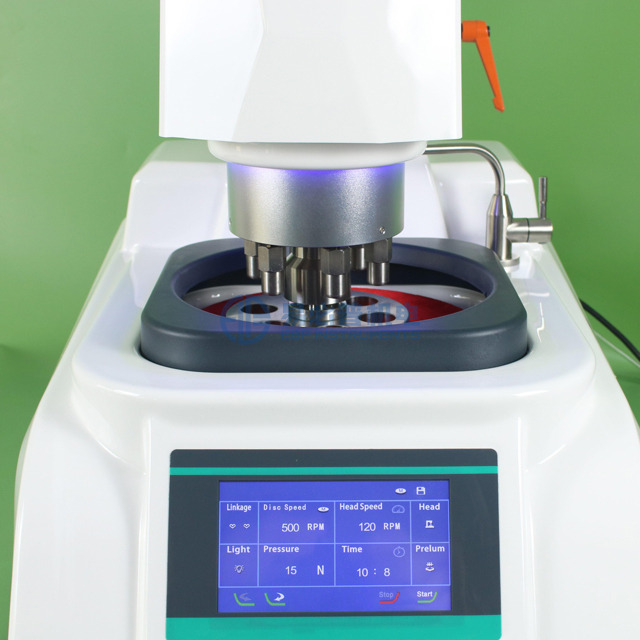

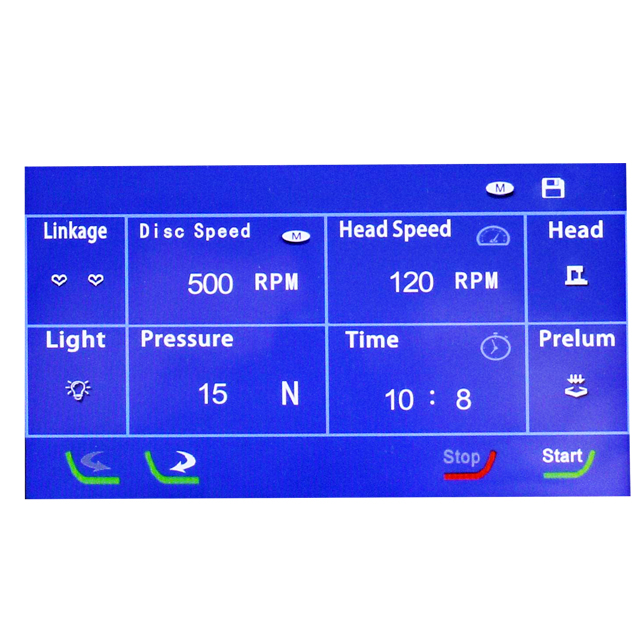

7. The touch screen display control, the interface is clear and intuitive, and the operation is simple.

8. The grinding head is automatically locked with electromagnetic clutch, which is convenient and quick operation (optional purchase).

9. Stepless speed regulation 100-1000r/min or four constant speed regulation (customer can define three common speeds for pre-grinding, grinding and polishing).

10. It can store 100 groups of grinding and polishing programs for quick recall.

11. The magnetic disc design supports quick disc change, and the replacement of sandpaper and polishing cloth is more efficient.

12. The free-rotating design of the sample chuck, with the internal lighting system, is convenient for taking and placing the sample.

13. The whole machine adopts a three-phase silent motor and a stepping motor, with stable rotation, low noise and long life.

14. Automatic centering to prevent multi-faceted grinding and polishing

Technical Specifications:

Standard Accessory:
