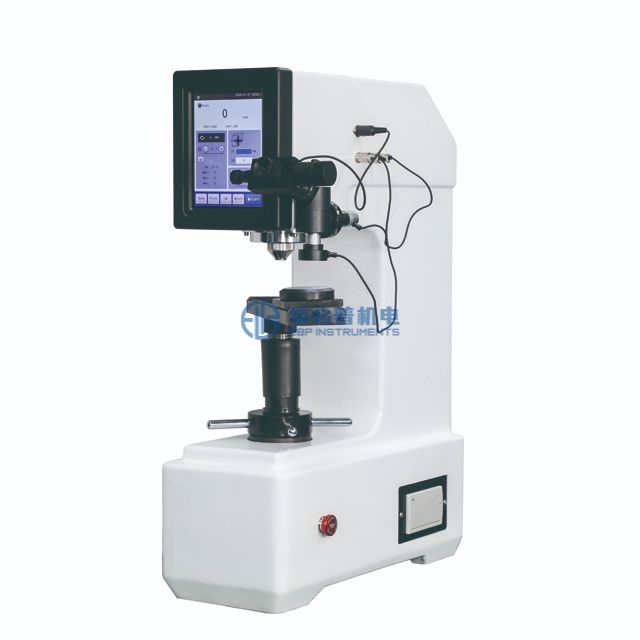

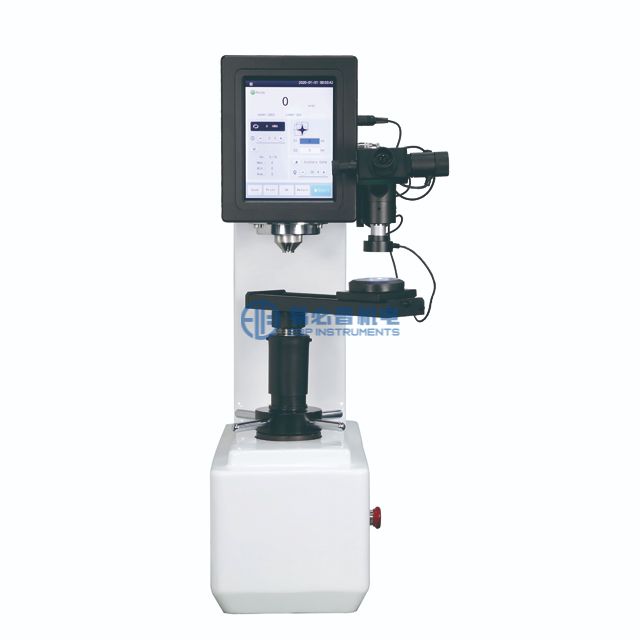

HBRV-187.5T
EBP INSTRUMENTS
Shanghai, Shenzhen, Qingdao
150 sets
TT in advance
1 set
Demo video:
Installation and Operation video:
Technical Parameter：
Model | HBRV-187.5T | |
Brinell Scale | HBW1/5, HBW1/10, HBW1/30, HBW2.5/6.25, HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/100 | |
Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | |
Superficial Rockwell Scales | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y, HR15W, HR30W, HR45W | |
Vickers Scale | HV5, HV10, HV20, HV30, HV40, HV50, HV60, HV80, HV100, HV120 | |
Test force | Brinell: 5kgf(49N), 6.25kgf(61.25N), 10kgf(98N), 15.625kgf(153.125N), 30kgf(294N), 31.25kgf(306.25N), 62.5kgf(612.5N), 100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N); Rockwell: 60kgf(588N), 100kgf(980N), 150kgf(1471N); Initial test force:10kgf(98N); Superficial Rockwell: 15 / 30 / 45kgf ; (147.1 /294.2 / 441.3N); Initial: 3Kgf(29.42N) Vickers: 5kgf(49N), 10kgf(98N), 20kgf(196N), 30kgf(294N), 40kgf(392N), 50kgf(490N), 60kgf(588N), 80kgf(784N), 100kgf(980N), 120kgf(1176N) | |
Force error | ＜0.5% | |
Holding Time | 0-99s | |
Hardness resolution | 0.1HR, 0.1HBW, 0.1HV | |
Allowed maximum sample size (test space) | Allowed max. Sample height in vertical: 180mm(for Rockwell); 165mm(for Vickers & Brinell test mode); Allowed max. Sample height in horizontal (throat depth): 160mm | |
Magnification | Eyepiece: 15X, Objective lens: 2.5X, 5X (for Brinell), & 10X (for Vickers) Total magnification: 37.5X, 75X, 150X | |

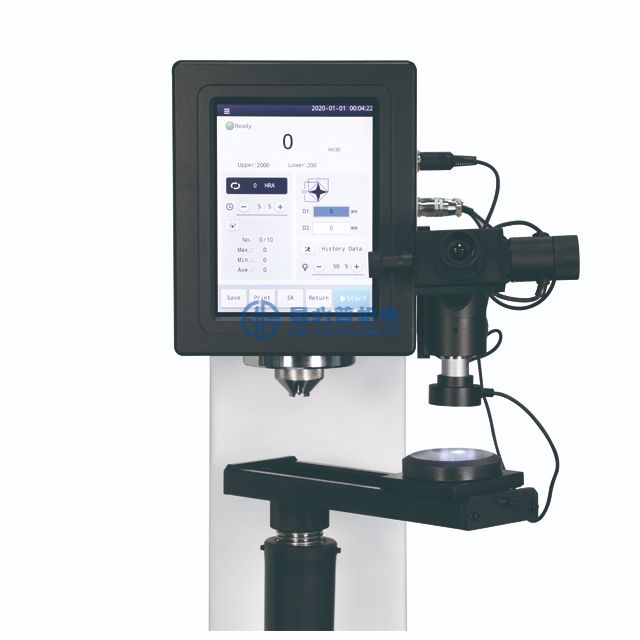

Hardness read | Touchable LCD display, built-in printer and RS232 port | |
Power supply | AC220V, 50-60Hz | |
Implementation of the standards | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 | |
Dimensions | Machine size: 540*340*800mm Packing size: 761*580*940mm | |
Weight | N/W: 80kg; G/W: 130kg | |
Standard Accessories (The Packing List)：
Part name | Qty | Name | Qty |
15X eyepiece | 1 | Brinell indenter diameter of 2.5mm, 5mm, carbide ball | 1 each |
Vickers indenter | 1 | Rockwell 1.588 carbide ball indenter | 1 |
Rockwell diamond indenter | 1 | Objective Lens 2.5 x, 5x, 10x | 1 each |
Hardness block | 7pcs | Exterior lighting | 1 |
Power line | 1 | Large, medium, V-test sets | 1 each |
Sliding test sets | 1 | Printer paper | 1 |
Fuse 2A | 2 | Adjust level screw | 4 |
Dust proof cover | 1 | Accessory box | 1 |
