EYP-150 / 200 / 250
EBP INSTRUMENTS
Shanghai, China
120 Sets Per Month
T/T in advance
1 Set

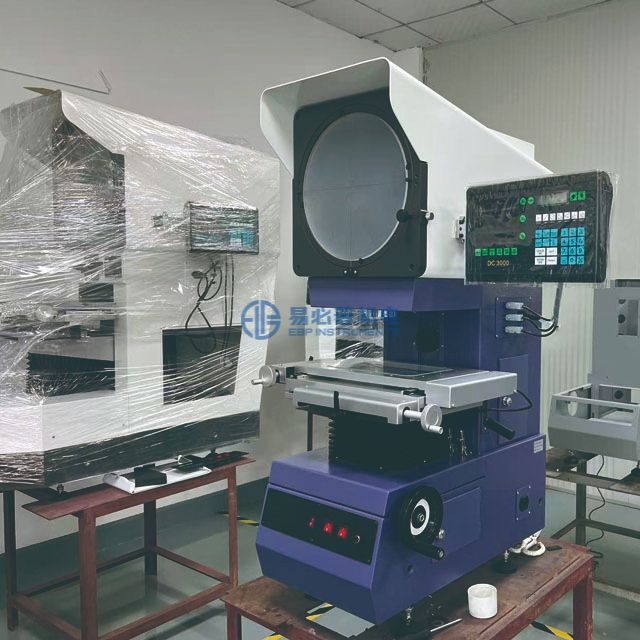

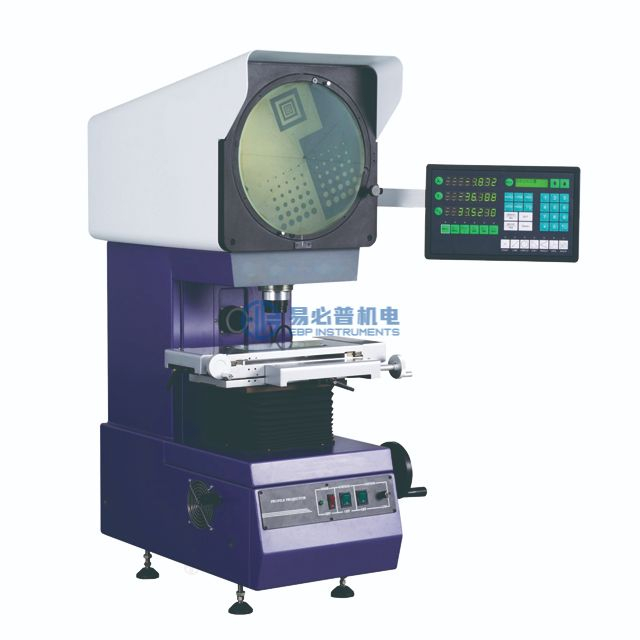

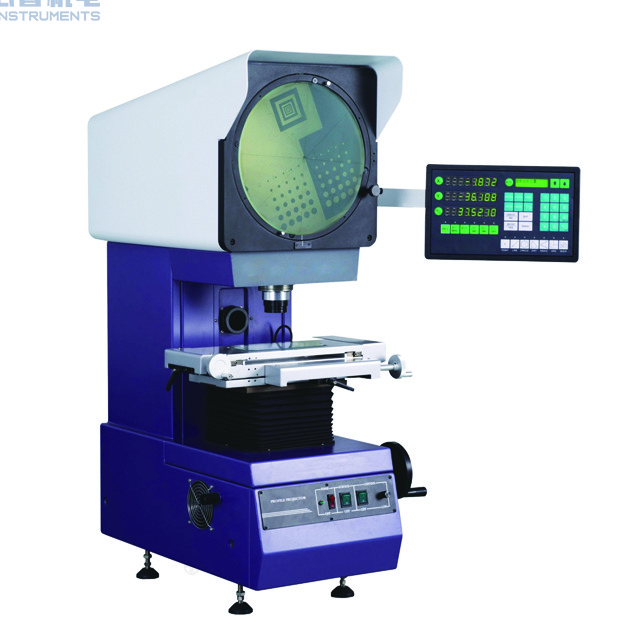

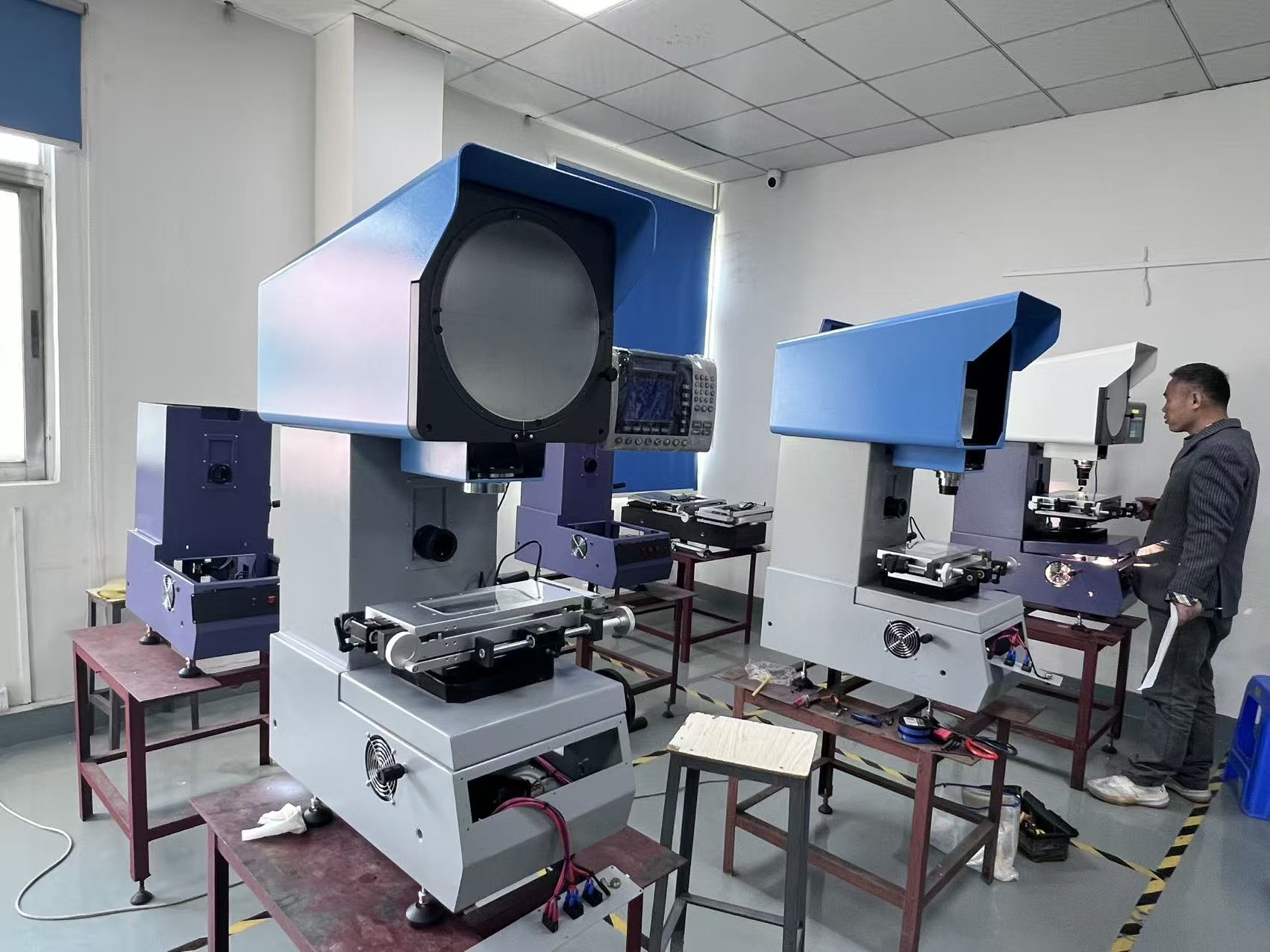

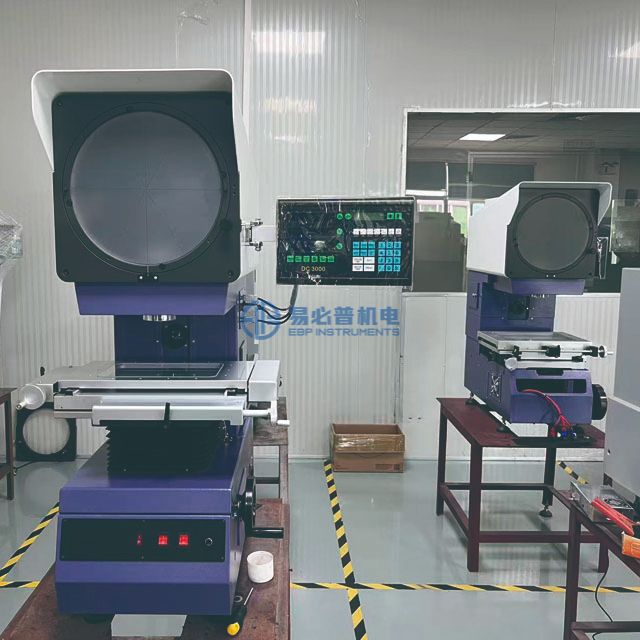

EYP-150 high precision profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape, can inspect all kinds of surface and outline of complicated work-pieces, cam, screw thread, gear, perform milling cutter and so on, widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.
Features:
1. Ø 312 mm projection screen, with magnification error less than 0.06%.
2. Coating process reflector, clearer image and great dustproof.
3. Powerful Bi-axial fan cooling system, highly increase using life span.
4. All measurement results can be printed directly or transferred to computer for further processing.
5. Manufactured with top class components, under high standard of workmanship.
6. Digital Readout supports interchange between mm and inches.
Technical Specification:
Model | / | EYP-150 | EYP-200 | EYP-250 | ||
Table | Metal Table Size (mm) | 340 x152 | 404 x 228 | 450 x 280 | ||
Glass Table Size (mm) | 196 x 96 | 260 x 160 | 306 x 196 | |||
X-axis Stroke (mm) | 150 | 200 | 250 | |||
Y-axis Stroke (mm) | 50 | 100 | 150 | |||
Z-axis Stroke (mm) | 90 for focus | |||||
Measuring Accuracy* | Ex, y ≤ (3.0+L/200)μm | |||||
Resolution(X,Y) | 0.5 μm | |||||
Projector Screen | Screen Size (mm) | Ø 312 Used range>Ø 300(with the meter line) | ||||
Screen Rotary Range | 0°~360° | |||||
Rotary Angle Resolution | 1´ or 0.01° | |||||
Projection Accuracy* | Contour: ≤±0.06%, Surface: ≤ ±0.06% | |||||
Lens | Magnification | 10X (standard) | 20X (option) | 50X (option) | 100X (option) | |
Object View | Ø30mm | Ø15mm | Ø6mm | Ø3mm | ||
Working Distance | 77.7mm | 44.3mm | 38.4mm | 25.3mm | ||
Max. work piece height | 80mm | 80mm | 80mm | 80mm | ||
DRO | DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point ,line, circle, angle and distance, etc. | |||||
Cooling | By fans | |||||
Illumination | 24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination | |||||
Power | 110V/220V(AC);50/60HZ; Total Power Consumption 400W | |||||
Dimension (L*W*H, mm) | 770*550*1100 | 780*780*1100 | 810*780*1120 | |||
Weight (kg) | 180 | 190 | 200 | |||
Option | Mini-printer, Edge detector, Metrology software and so on, please refer to ‘Appendix’ for details. | |||||
* All data is tested according to standard JJF1093-2002.
L is measured length (units: mm)
Specification subject to change without notice

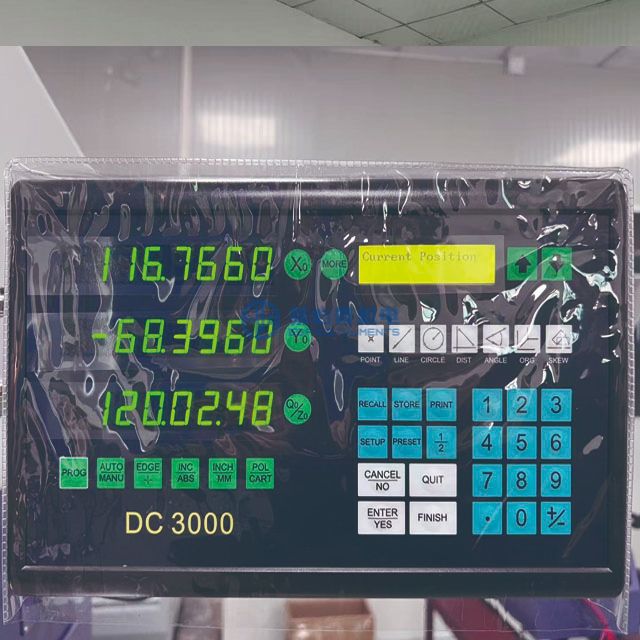

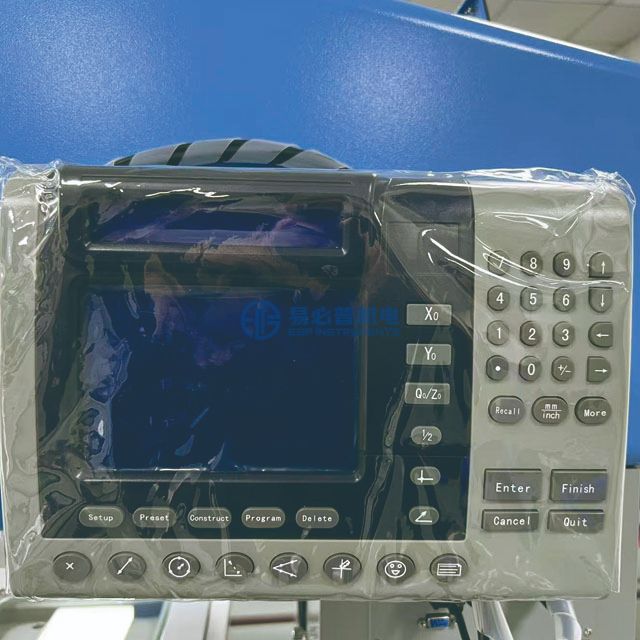

Digital Readout DC 3000:
1. Two-dimensional measurement: measure width, length, both sides of the angle, the cone angle, the diameter of the cylinder, chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
2. User program: sequences of front panel key-presses can be stored as programs and replayed at a later date. This capability is especially useful when a series of identical parts must be measured.
3. Communication: with RS232 interface and printer interface, can export measurement data with a mini printer or a computer equipped with metrology software.
4. Measuring Unit: support mm or inch
5. Language: Chinese, English, Portuguese.
