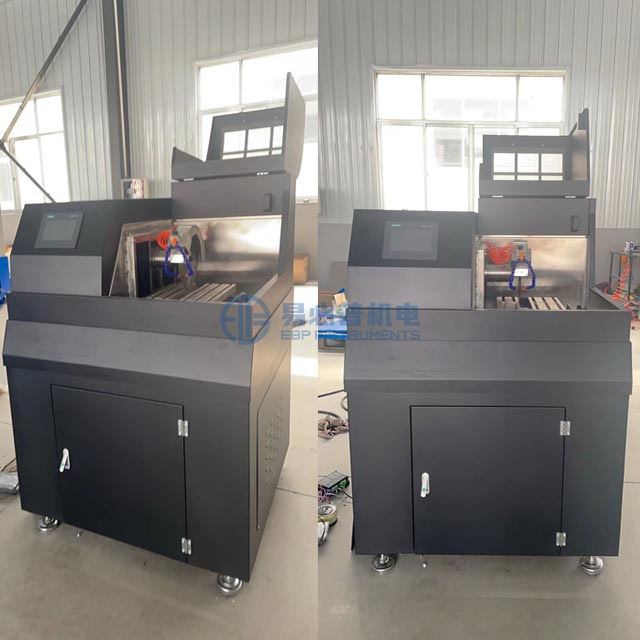

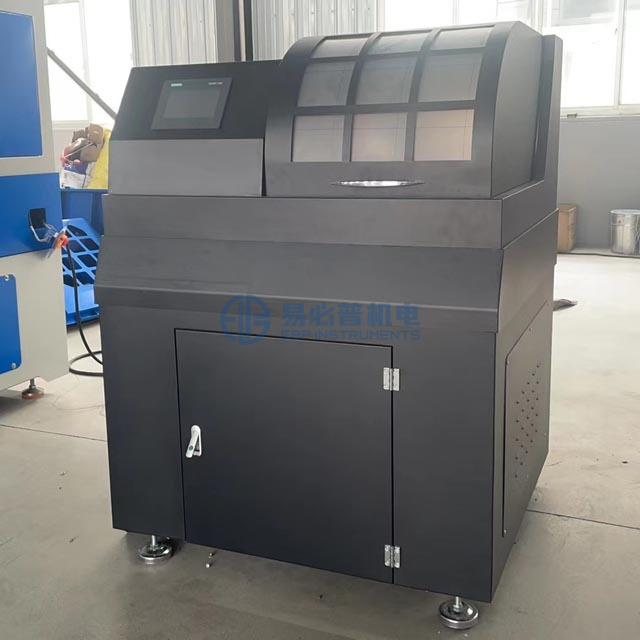

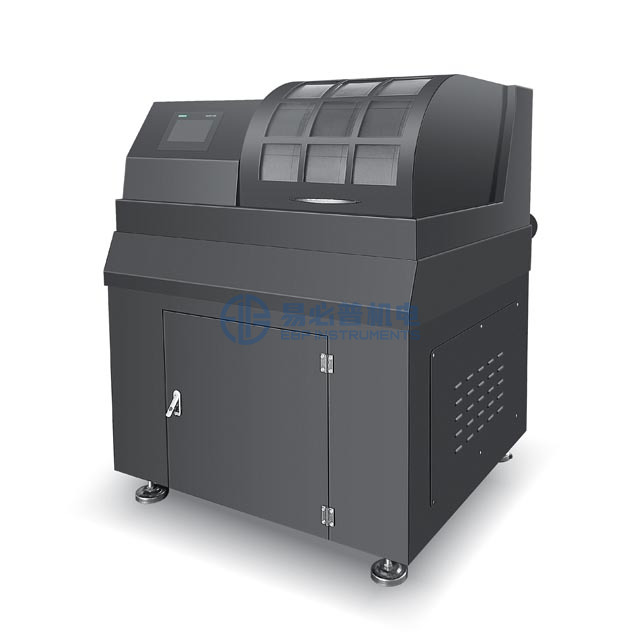

Metallographic Sample High-speed Precision Cutting Machine CM-80XYZ

High speed cutting machine: 500-5000r/min;
Support X-Y-Z axis movement: X axis (manual): 50mm; Z axis: 50mm; Y axis 200mm;
Cutting mode: Direct (continuous) cutting, Impact (pulse) cutting;
Feed speed: 0-1.5mm/s (adjust each step 0.01mm);
Maximum cutting section: Φ80mm;
CM-80XYZ mainly used to cut metals, electronic components, ceramic materials, crystals, cemented carbides, rock samples, mineral samples, concrete, Organic materials, biological materials (teeth, bones) and other materials for precise and deformation-free cutting
Availability:
  • CM-80XYZ

  • EBP INSTRUMENTS

  • Shanghai, China

  • 30 Sets Per Month

  • TT in advance

  • 1 set

Multifunctional high-speed precision metallographic sample cutting machine, mainly used to cut metals, electronic components, ceramic materials, crystals, cemented carbides, rock samples, mineral samples, concrete, Organic materials, biological materials (teeth, bones) and other materials for precise and deformation-free cutting.


Features:

1. Equipped with top quality motor, Schneider electric, and Mitsubishi software, these core components guarantee the quality.

2. X, Y, Z axis can be accurately controlled by automatic or manual.

3. It has direct Cutting (continuous cutting) and impact Cutting (Pulse cutting) two modes which can adjust the amount of feed according to the hardness of material to achieve the fastest cutting effect.

4. With LED lamp, it can increase the brightness of the cutting chamber.

5. The exhaust system can timely exhaust the waste gas generated during the cutting process out of the cutting room.

6. Cursor positioning function makes the sample cutting location more accurate (optional).

7. Equipped with a cleaning water gun, more convenient to clean the worktable.

8. With 7’’ Mitsubishi touch screen system control, all cutting parameter and data can operate on the screen, easy operation.

9. Independent cooling system to cool the specimen to prevent the specimen from overheating and burning the tissue during the cutting process.

10. Adopts electromechanical separation structure to effectively protect electrical safety, which has convenient maintenance and long service life.

11. Equipped with explosion-proof transparent observation window, cutting status can be observed in real time.

12. With alarm function, motor overloaded or door not close well system will alarm.

13. Adjustable stepless speed 500-5000r/min, Suitable for precision cutting of various materials.

14. The cutting chamber adopts fully enclosed structure and the safety lock is closed when cutting, which is safe and reliable.


Specification:

Model

CM-80XYZ

Cutting wheel

Φ250×1.5×Φ32mm (abrasive cutting wheel) or

Φ200×1×Φ32mm (diamond cutting wheel)

Rotation speed

500-5000r/min

Maximum cutting section

Φ80mm

Travel distance

X axis (manual): 50mm; Z axis: 50mm; Y axis 200mm

Feed speed

0-1.5mm/s (adjust each step 0.01mm)

Control system

7" colour touch screen, PLC control system

Cutting mode

Direct (continuous) cutting, Impact (pulse) cutting

Resetting mode

automatic

Cooling system

automatic water cooling

Machine type

Vertical

Input power

1.8KW (cutting power 1.5KW, can be customized)

Input voltage

Three-phase 380V 50HZ

Machine size and N/W

1000×1035×1200mm, 210kg


Standard delivery:

Name

Specification

Qty

Machine body


1 set

Water tank


1 set

Cutting wheel

Φ250×1.5×Φ32mm

1 pc

Cutting Fluid


1 L

Quick Clamp


1 set

Water Inlet Pipe


1 pc

Water Outlet Pipe


1 pc

Exhaust Pipe


1 pc

Cleaning water gun


1 pc

Spanner


1 set

Manual book


1 pc
