Double working Plates Sample Grinding Polishing Machine

Double working plate, standard plates dimension 203mm;
Stepless speed 50-1000r/min

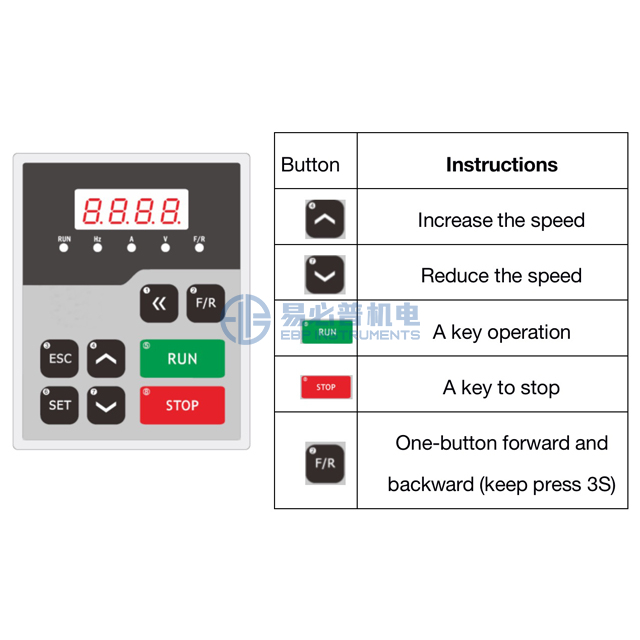

Working plate support clockwise & anticlockwise rotating direction, one key switch, easy operate;
With water cooling system to prevent damage to the metallographic structure due to overheating of the sample.
Availability:
  • eGP-2S
  • EBP INSTRUMENTS
  • Shanghai, China
  • 100 Sets Per Month
  • T/T in advance
  • 1 set

In the process of metallographic sample preparation, the grinding and polishing of the sample is an indispensable process. After the sample is ground and polished, a bright mirror-like surface can be obtained. The eGP-2S metallographic sample grinding and polishing machine adopts a frequency converter to adjust the speed, which can make the speed of the grinding and polishing disc infinitely adjustable between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. It is especially suitable for metallographic laboratories in factories, colleges and research institutes, and is an excellent equipment for grinding polishing metallographic samples.


Features:

1. One machine can do the rough grinding, fine grinding, rough polishing and fine polishing of metallographic specimens.

2. The shell is made of high-end ABS, which is novel and beautiful in appearance.

3. The faucet adopts stainless steel 304 material, which has good corrosion resistance

4. Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs.

5. Double working plates φ203mm, greatly improved working efficiency.

6. Working plate support clockwise & anticlockwise rotating direction, one key switch, easy operate. Meet different operation habits of operators.

7. With water cooling system to prevent damage to the metallographic structure due to overheating of the sample. And can get more better metallographic surface easily.


Specification:

Model

eGP-2S

Grinding polishing plate Diameter

φ203mm

Rotate Speed

50-1000r/min (stepless adjustable)

Motor power

0.55KW

Machine Size (L*W*H)

770×730×320mm

Net Weight

42KG

Power Supply

220V, 50Hz


Packing List:

Name

Quantity

Grinding plate Φ203 (on machine)

2

Water retaining ring (on machine)

2

Pressing ring φ203 (on machine)

2

Abrasive paper φ203

2

Polishing cloth φ203

2

Water inlet pipe

1

Water outlet pipe

1

Manual

1 piece

Certificate

1 piece
