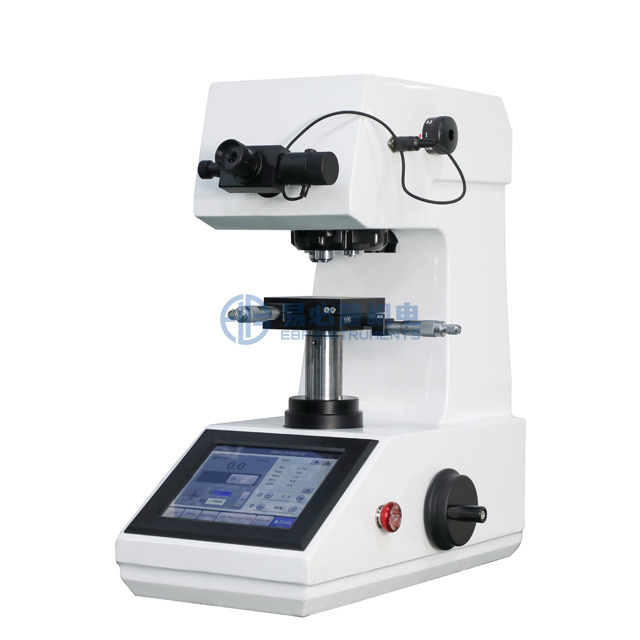

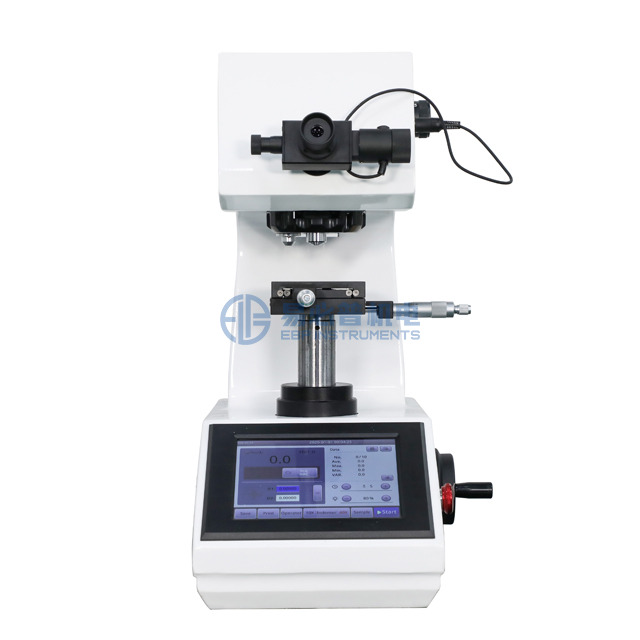

MHVD-1AT-8P
EBP INSTRUMENTS
Shanghai, Shenzhen, Qingdao
150 sets
TT in advance
1 set
Main purpose and application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Main Features:
1. One-time casting machine body with car painting technology, structure more stable and appearance more decent.
2. Digital 10X eyepiece with inbuilt encoder, click the encoder machine will automatic get indentation diagonal length data D1 & D2, no need manual input data into machine, greatly improved testing accuracy and working efficiency.
3. With 8’’ large touch screen digital display, directly display hardness value, dwell time, conversion hardness value, etc.
4. Menu structure interface, easy operation.
5. With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard Knoop hardness blocks).

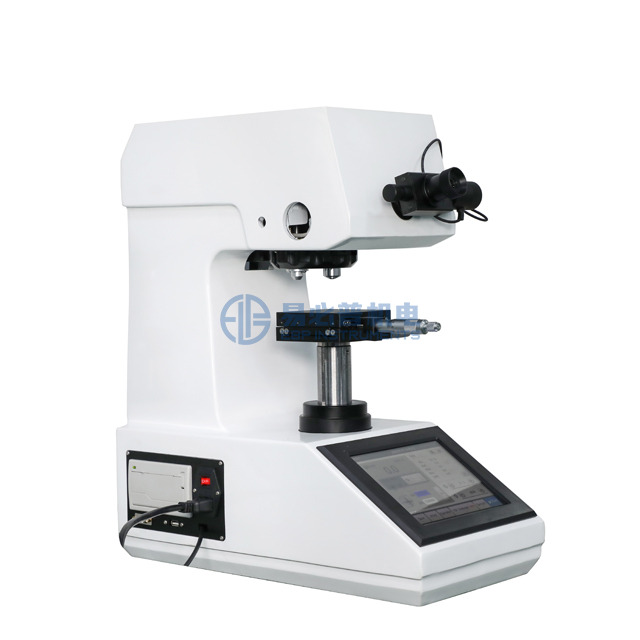

6. With built-in printer, test result can be printed out directly.
7. Built in LED light source, most advanced technology in world market.

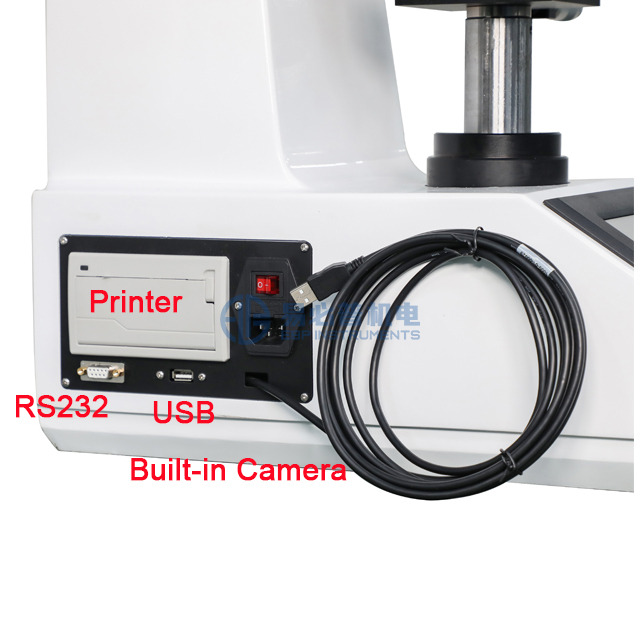

8. With RS232 communication port and USB port, machine can upgrade to semi-automatic or fully automatic type easily if needed in future.
9. Double optical path design. Support inbuilt camera or external camera (Optional).
Specification:
Model | MHVD-1AT-8P |
Turret | Automatic Turret |
Objective | 10X (measure); 40X (measure) |
Eyepiece | 10X digital eyepiece with built-in encoder |
Total Magnification | 100X (measure); 400X (measure) |
Testing force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
Conversion scale | HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW |
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) |
Min. measuring unit | 0.01μm |
Hardness value rang | 5HV-3000HV (or 5-4000HV) |
Data display | 8 inch LCD touch screen |
Loading method | Automatically (Load, dwell and unload the testing force) |
Duration time | 1-99s (each step is 1 second) |
Data output | Inbuilt printer |
Data storage | 1000pcs (100 groups, each group 10pcs); Can extend to 300000pcs |
X-Y Testing Table | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm |
Test space | Maximum height: 114mm (vertical); Throat depth: 120mm (horizontal) |
Light Source | High resolution halogen light source |
Machine size & N/W | 490*288*555mm 60kg |
Packing size & G/W | 61*43x82mm 78kg |
Power Supply | 220V ± 5%, 50/60 Hz (110V is available) |
Executed Standard | GB/T4340.2, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |

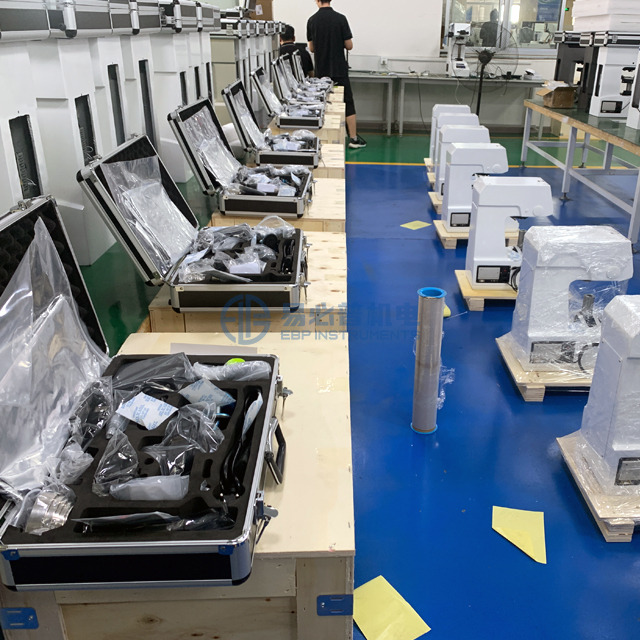

Standard Packing List:
Item | Q’ty | Item | Q’ty |
Weights shaft | 1 | Weights | 6 |
X-Y table | 1 | Level adjustment screw | 4 |
Level bubble | 1 | Objective 10X, 40X | 1+1 |
Micro Vickers hardness block | 2 | Eyepiece 10X | 1 |
Dust-proof cover | 1 | Screw driver | 2 |
Power cable | 1 | Fuse (2A) | 2 |
Manual | 1 | Product Certificate | 1 |
