UT-3
EBP INSTRUMENTS
Shanghai, China
900 Sets Per Month
T/T in advance
1 set
Introduction

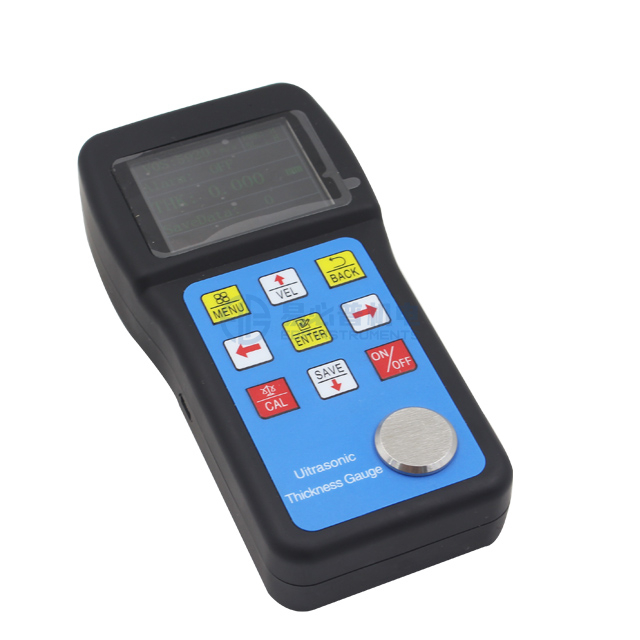

Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic, China glass, glass fiber and any other good conductors of ultrasonic. The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Features
1 Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2 Can collocate variety different frequencies,wafer sizes of probes；
3 Sound Velocity Calibration function as a known thickness;
4 Coupling status indicator showing the coupling status;
5 EL backlight, and convenience to use under dark environment；
6 Have the battery indicator function, can real-time display the remaining power
7 Auto sleep and auto power off function to conserve battery life；
8 Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.
Technical Specification
UT-3 | |
Measuring range | 0.75-700mm (Steel) |
Velocity Range | 1000-9999m/s |
Resolution | 0.001mm |
Measuring accuracy | ± (0.5%H+0.04mm); H is thickness value |
Measurement cycle | Single point measurement 6 times/per |
Calibration Function
| Zero calibration and two-point calibration |
Alarm | Sound-light alarm function |
Lower limit for steel pipes | 5MHz probe: 20mm*3.0mm (0.8 0.12 inch) 7MHz probe: 15mm*2.0mm (0.6 0.08 inch) |
Display | 128 x 64 LCD with LED backlight, color screen |
Storage | 3000 values of saved data |
Communication interface | USB |
Language | English and Chinese |
Power Source | 2pcs 1.5V AA battery |
Working Time | more than 50 hours (LED backlight off) |
Work environment | -20℃ to 70℃; Humidity ≤90％ |
Storage Temperature | -30℃ to ＋70℃ |
Dimensions & N/W | 145mmx74mmx32 mm; 245g |
Standard configuration:
No. | Name | QTY | |
Standard Configuration | 1 | Main Body | 1 set |
2 | Standard Probe (5MHz,D10mm) | 1 pc | |
3 | Couplant | 1 pc | |
4 | ABS Case | 1 pc | |
5 | Product Certificate | 1 pc | |
6 | Warranty Card | 1 pc | |
7 | Manual | 1 pc | |
8 | 1.5V AA size | 2 pcs | |
Optional Accessories | 9 | Large diameter probe (2.5MHz) | |
10 | Large range probe (2MHz) | ||
11 | Micro-diameter probe (7MHz) | ||
12 | High temperature probe (5MHz) | ||
13 | High temperature couplant |
Optional purchase - Probes:
Name | Model | Frequency | Diameter | Testing Range | Min. area f | Application |
Large diameter probe | N02 | 2.5 | 14mm | 3.0mm～400.0mm（steel） Below 40mm(Gray Iron HT200) | 20mm | casting work piece |
Large range probe | N02 | 2 | 14mm | 3.0mm～600.0mm（steel） Below 100mm(Gray Iron HT200) | 20mm | casting work piece |
Standard probe | N05/90° | 5 | 10mm | 1.0mm～230.0mm（steel） | Φ20*3.0mm | General bent probe |
Micro-diameter probe | N07 | 7 | 6mm | 0.28mm～80.0mm（steel） | Φ15*2.0mm | thin work piece |
High Temperature Probe | HT5 | 5 | 14mm | 3～200mm （steel） | 30mm | high temperature |
