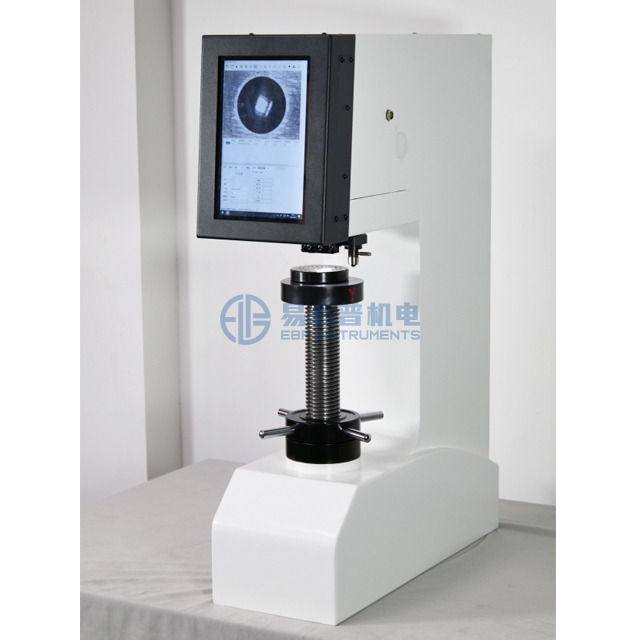

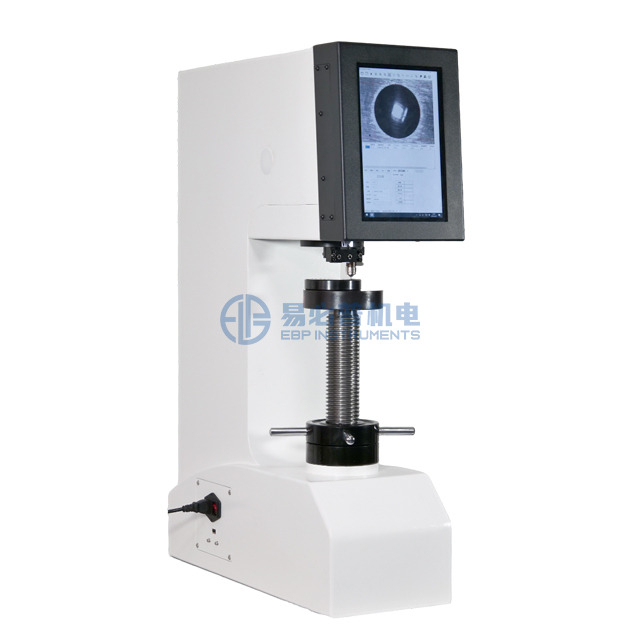

B-3000APC
EBP INSTRUMENTS
Shanghai
30 sets per month
TT in advance
1 set
Features:
1. Computer control: software control hardness tester start loading - dwell - unloading, do automatic or manual indentation measurement, etc.
2. Generate test report in word / Excel format easily including hardness value, indentation image, test time, etc.
3. Built-in camera can transfer image to screen industrial computer in real time, on screen can do automatic measurement work directly;
4. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.
5. Large test force range: 62.5Kgf to 3000Kgf
6. With 12 kinds of measurement scale, and with hardness conversion function.
7. Test force with automatic calibration function, load automatic corrected, much more accuracy
8. Hardness value automatic corrected according to different hardness block
9. Large test space: 155*200mm (Depth * Height)
10. Quality judgement function, result out of quality range will automatic alarm.
11. Modular design, easy maintenance
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Technical Specifications:
Model | B-3000APC | B-3000MPC |
Turret | Automatic turret | Manual turret |
Computer | 10.1-inch Core i3 quad-core / 8G / 128G /wifi win10 | |
Brinell Scale | HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/1500 HBW10/1000 HBW10/250 HBW10/500 HBW10/3000 | |
Load Kgf(N) | 62.5 (612.9), 100 (980.7), 125 (1226), 187.5 (1839), 250 (2452), 500 (4903), 750 (7355), 1000 (9807), 1500 (14710), 3000 (29420) | |
Load accuracy | 62.5 - 250kgf ≤1% ; 500 - 3000kgf ≤0.5% | |
Hardness resolution | 0.1HBW | |
Dwell time | 0-99S | |
Hardness range | 8-650HBW | |
Data output | LCD display, USB interface save data in USB flash disk (save in Excel format) | |
Executive Standard | ISO 6506, ASTM E10-12, JIS Z2243, BSEN 6506, GB/T 231.2 | |
Test space | 200*155mm (H*D) | |
Power supply | AC220+5%, 50~60Hz | |
Overall Dimension | 550*210*800mm | |
Net weight | About 110kg | |
Software Information:
Brinell hardness scale | HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000 |
Meet the standard | BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
Measurement range | 15.9-650HBW (The effective hardness value recommended by ASTM E10) |
Resolution of measuring device | 0.5% |
Measurement accuracy | ±0.5% |
Digital imaging | 5 million industrial-grade digital cameras |
Measurement method | Manual measurement, automatic measurement (for standard samples) |
Calibration method | Standard hardness block / optical length scale |
Supported languages | English (optional) |
Standard Accessories:
Item | Quantity | Item | Quantity |
Hardness tester Unit | 1 | Diameter 2.5mm Hard alloy indenter | 1 |
5MP camera | 1 | Industrial computer | 1 |
USB flash drive | 1 | Software Dongle | 1 |
Accessories box | 1 | Diameter 5mm Hard alloy indenter | 1 |
Anti dust cover | 1 | Diameter 10mm Hard alloy indenter | 1 |
V-type working table | 1 | Medium working table | 1 |
Hardness block | 3 pcs (HBW10/3000, HBW10/1000, HBW2.5/187.5) | ||
USB flash disk | 1 | Large working table | 1 |
E-manual book | 1 | Quality certificate | 1 |
