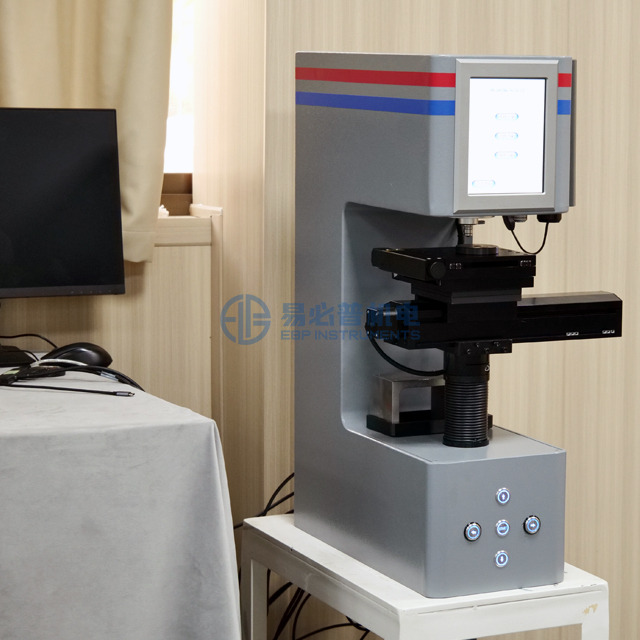

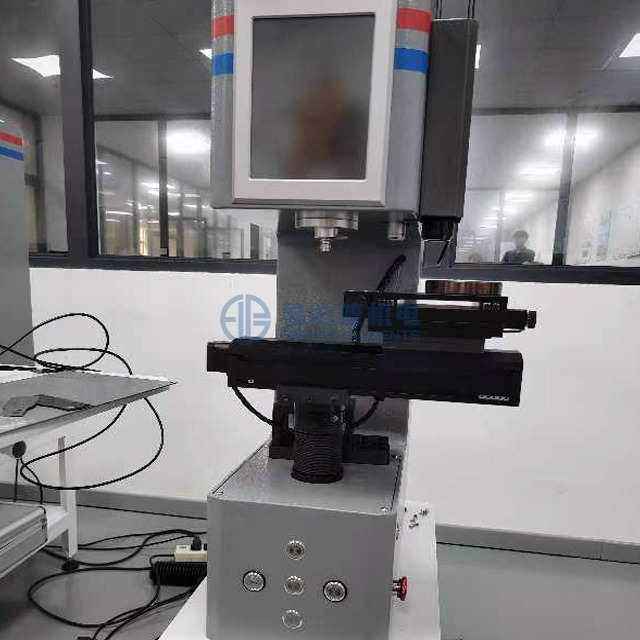

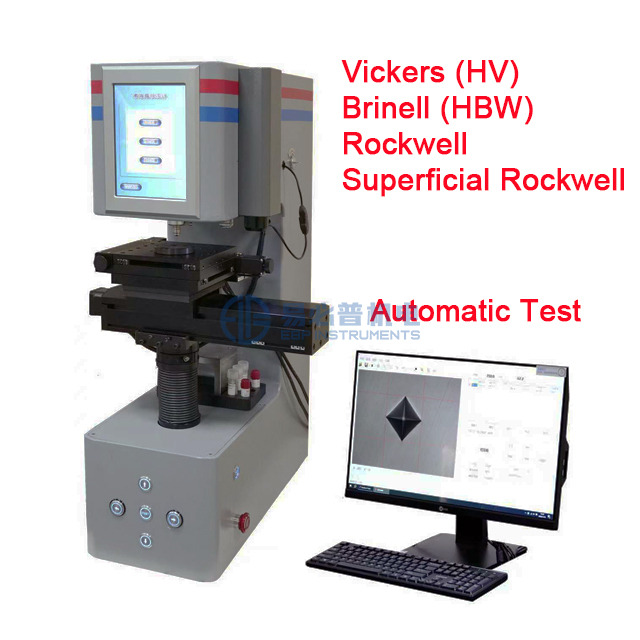

Fully Automatic Universal Hardness Tester Brinell Rockwell Vickers Hardness Test BRV-250AZ

Main Features:

1) Equipped Brinell, Rockwell, Superficial Rockwell and Vickers test methods;

2) Brinell and Rockwell force test completed, automatically move to the measurement position, and automatically measure, one click to obtain hardness value

3) Workbench automatic lifting, anti-collision detection device and Z-axis retraction system; The worktable automatically rises, stops rising when the sample touches the indenter, automatically loads, automatically unloads, and automatically measures the hardness value.

4) Automatic application of initial test force and primary test force

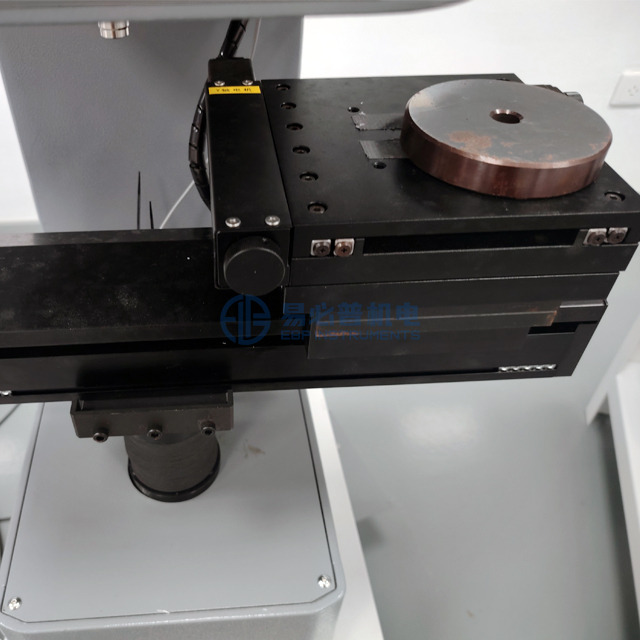

5) Ultra-high precision electric X/Y worktable  (Option), Repeat positioning accuracy: Up to 200mm for a 3-micron travel

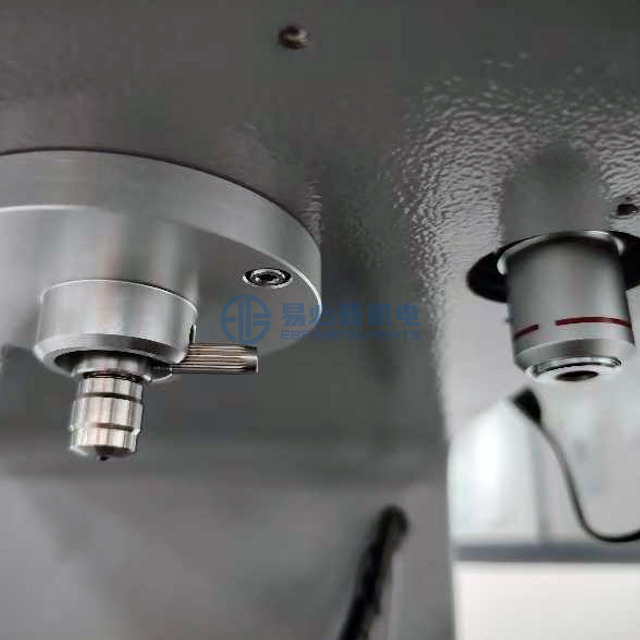

6) Brinell and Vickers measurement objectives and light sources are separate and independent;

7) A variety of Brinell, Rockwell and Vickers scales, HVT and HBT can option;

8) Hardness value Easy calibration: According to the standard hardness blocks, each hardness scale is automatically corrected in three segments: high, medium and low.

9) Test force easy calibration: The test force can be automatically corrected by the standard dynamometer.

10) The database processing function is powerful, including: conversion of multiple hardness systems such as HR, HB, and HV, setting of qualified range, automatic alarm when exceeding the limit, and input of information such as tester and sample name. Measurement parameters and data are automatically saved to the database.

11) QR code scanning, cloud storage of detection data, data analysis, remote diagnosis and upgrade; Real-time display of immediate test data and historical data on mobile phones and computers

12) 8 inch Touch-screen interface, easy to operate

13) Close loop, with high accuracy load cell, no need install weights;

14) According to GB / ASTM hardness automatic conversion;

15) Modular design for easy maintenance.

Technical Parameter：

Software System:

1. 5-megapixel camera with clear images, indentation measurement automatic/manual measurement

2. Calibration is done using a micrometer or hardness block, and it can be automatically calibrated

3. Computer automatic measurement image analysis, hardness software precise correction and gradient illustration

4. The hardness is converted to other hardness levels in accordance with national standards and ASTM. Hardness value statistics and alarm for hardness exceeding

5. Test reports are automatically generated and all test data are permanently saved for historical reference

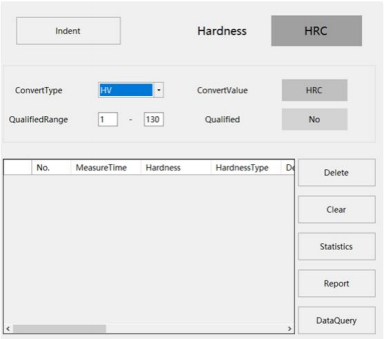

Rockwell Hardness Test Software

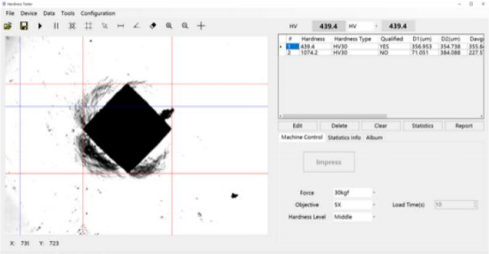

Vickers Hardness Test Software

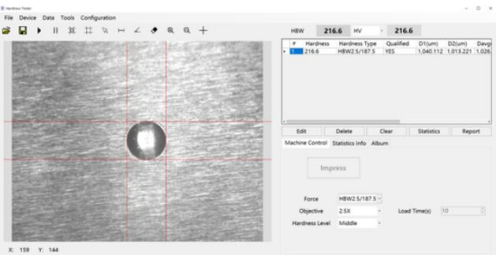

Brinell Hardness Test Software
