DVS-1XYZ
EBP INSTRUMENTS
Shanghai, Shenzhen, Ningbo
90 sets per month
TT in advance
1 set

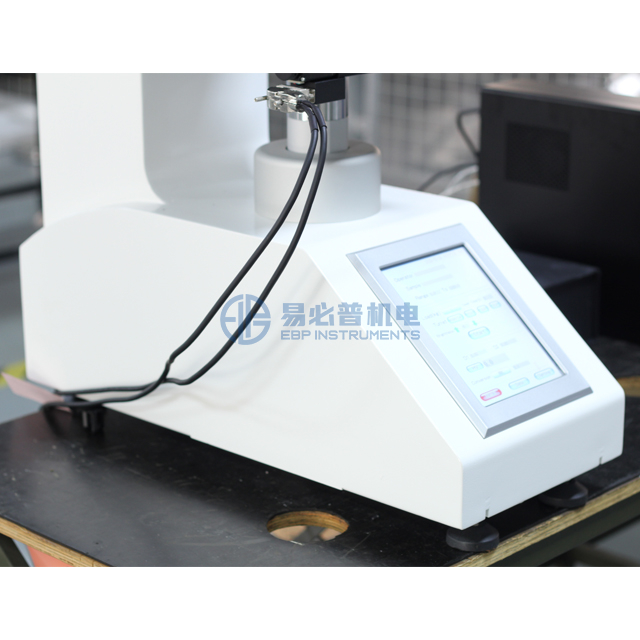

DVS-1XYZ Fully Automatic Micro Vickers hardness tester consists of two parts:
1) Automatic Turret touch screen Micro Vickers hardness tester for DV-1AT-8P
2) Automatic Vickers hardness measurement and control system THVS -- AXYZF
Features of DV-1AT-8P Micro Vickers hardness tester:
The traditional Micro hardness tester has poor precision and can barely meet the needs of visual observation & measurement. If connect with camera and software, the indentation image of traditional Micro hardness tester always out of central position. It is very big problem of measuring and analysis process. Fortunately, our this machine perfectly solved above problems.
1) Guided by optical cross rails to ensure high guiding accuracy;
2) Fast and smooth force transmission can be achieved by using the secondary transmission force of the rack and pinion.
3) This machine equipped with most advanced High transmission ratio high precision worm gear rod, can achieve stable continuous lifting, and greatly improved the accuracy and repeatedly of the testing process. This update is very important to improve working performance and working efficiency.
4) Equipped with dual optical path, one optical path for eyepiece system, another path for CCD camera, both path can working in same time, no need switch optical path rod. Greatly extend the service life of the optical system, and make test more easy.
5) Adopted 8’’ touch screen, menu structure, and digital eyepiece with built-in encoder, just click button on encoder, the diagonal length of indentation D1, D2 and hardness value will display on touch screen directly, very easy operate.
6) With hardness conversion function, from HV can convert to HRA, HRB, HRC, HBW, etc scales.
7) With (HV & HK) Vickers and Knoop hardness testing capabilities.
8) OK/NG judgement function.
9) Both lens (10X & 40X) can used for measurement, suitable to test widely hardness range of materials from most soft to very hard.
Features of Software control system:
X and Y move automatically;
Panoramic scanning
Automatic edge
Z-axis automatic focusing;
Automatic indentation measurement
Generate inspection report automatically
Applicaion:
The automatic hardness measurement is mainly used for vickers hardness measurement of various metals and some non-metallic materials, and can be used for hardness measurement of various metal parts and parts after thermal treatment. It is also suitable for the determination of effective hardening depth, coating and heat affected parts of welding parts. It can also be used to observe the metallographic structure of various metal parts and collect, display and print the image.
The system is especially suitable for measuring the surface hardness, hardness gradient distribution curve and effective hardening depth of heat-treated workpiece.
Technical parameter for Hardness tester machine:
Model | DV-1AT-8P |
Turret | Automatic Turret |
Objective | 10X (observe & measure); 40X (measure) |
Eyepiece | 10X digital eyepiece with built-in encoder |
Total Magnification | 100X (measure); 400X (measure) |
Testing force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
Conversion scale | HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T HV, HK, HBW |
Loading speed | ≤50μm/sec |
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) |
Min. measuring unit | 0.01μm |
Hardness value rang | 8HV-2900HV |
Data display | 8 inch LCD touch screen |
Loading method | Automatically (Load, dwell and unload the testing force) |
Duration time | 1-99s (each step is 1 second) |
Software | With 5 megapixel camera Image analysis software (with automatic measurement of impression & variable case depth and turret control through software) |
Test space | Maximum height: 160mm (vertical); Throat depth: 160mm (horizontal) |
Light Source | LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) |
Machine size and N/W | 540*260*650mm 50kg |
| Power Supply | 220V ± 5%, 50/60 Hz (110V is available) |
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
Technical parameters of Software system:
1) 5-megapixel camera provides sharp images.
2) Lenovo or Dell brand computer, operating system: Windows 10
3) High precision automatic X-Y loading platform
Drive motors | Stepper motor |
Drive control | The speed can be flexibly changed by moving up the X-y axis through the software |
Size | 150 x 150 mm |
Maximum travel distance | 50 × 50mm in x-y direction |
Minimum travel distance | 1mm |
Movement speed | 1-10 mm/SEC, adjustable |
Displacement repetition accuracy | Less than 1 um - 3 um |
Object platform movement mode setting | Click any point in the interface through the mouse to automatically select the point, you can set the starting position of the straight line and set the random moving position, through the mouse click on the automatic X-Y displacement platform loading platform for 8 directions of arbitrary movement control, can adjust the speed, can be automatically reset, can be free to coordinate zero |
4) Z axis auto focus component
Motor | Stepper motor |
Maximum travel distance | The sample movement range of the hardness tester host |
Moving resolution | 0.1um |
Displacement repetition accuracy | 1um |
Movement speed | Fast/slow |
5) Measurement and control software
System description | Can carry out panoramic scan, edge scan.Automatic completion of continuous pressure, load protection, reading, data recording, by choosing a measurement method all measurement will be automatically and quickly completed; Choose straight lines, zigzags, circles, arcs, random points, matrices and self-learning modes according to different needs;Improve the readability of non-clear indentation on non-smooth surface by data processing software; The depth of hardened layer formed after continuous measurement can be displayed in table form. It can output all kinds of data measurement data, hardness value table, hardening layer depth, maximum value, average value, minimum value. |
Hardness tester control | The hardness tester can be controlled automatically: automatic turret (objective lens, pressure head, objective lens automatic switch), automatic loading, automatic measurement control The brightness of the light source of the microhardness tester can be set Select the conversion of the control objective lens and reflect it in the software interface to change the calculation parameters Select or start control durometer indenter automatically to load position, load, hold, unload, and automatically turn back to measuring objective position The load set by the hardness tester can be automatically reflected on the software interface |
Z axis control | Z axis automatic movement, automatic focus |
Control platform movement mode (Patten) | The software system can control the automatic loading platform for programming and moving, and can carry out: 1) Measurement mode (Random A) Use this mode to press and read an optional point. 2) Measurement mode (Random B) Measure and read arbitrary points.Rotates the selected coordinate position at any Angle. 3) Horizontal (X-axis direction) pressure and read 4) Longitudinal (Y-axis direction) pressure and reading 5) Measurement mode (Line Set A) Use this mode to press and read in the direction of the surface at an Angle (zigzag movement, i.e. the broken line movement of the hardened layer depth measurement). 6) Measurement mode (Line Set B) Use this mode to press and read at regular intervals. 7) Trajectory coordinate movement and other mobile programming methods Above 8 lines can be set at the same time, each line can be set 999 positions |
Measuring way | Automatic mode: automatic loading + automatic measurement + automatic display of measurement results Can measure the player's movement pattern |
Image acquisition/recognition methods | High quality, high resolution camera, resolution of 5 million, large size original image acquisition;A variety of image compression methods for easy use (the image and measurement results for storage format, image storage format BMP, JPG and other general file formats). Automatic vickers indentation measurement system using pixel identification technology, through a dedicated vickers hardness indentation analysis software to analyze indentation image, the analysis software using digital image processing technology edge segmentation algorithm to test indentation edge extraction, and then by using the theory of wavelet multi-resolution analysis test indentation sampling signal, using the least squares fitting creasing edge line, In order to extract the indentation edge of micro-hardness, the indentation area of micro-organization vickers hardness test can be extracted quickly and accurately, and the value of Vickers hardness can be calculated automatically, and the readability of non-clear indentation on non-smooth surface can be improved. |
Automatic measuring time | About 0.3 SEC /1 indentation |
Repeatability of measurement | ±1.0% （700HV/500gf） |
Minimum detectable indentation | About 5m (automatic measurement)m |
Minimum unit of measurement | 0.01mm |
language | Chinese (English optional) |
Data output format / Editing features | Inspection report can be customized according to user requirements; Through data processing software, the depth of hardened layer formed after continuous measurement can be displayed in table form. It can easily output all kinds of measurement data, hardness value table, hardening layer depth, maximum value, average value, minimum value, display and output color image with hardness value; Data such as hardness value, hardness table, hardening layer depth map and picture insertion can be flexibly edited and printed in "WORD" (optional "EXCEL"), including mathematical statistics and hardening layer depth curve test report and saved (WORD format) (optional "EXCEL"), also can print the observed sample topography and save. The indentation and background microstructure are directly reflected, and metallographic analysis and observation are made under different magnification objective lens. |
Standard packing:
Item | Quantity | Item | Quantity |
Weights shaft | 1 | Weights | 6 |
Digital Micrometer eyepiece | 1 | hardness block (high block, medium block) | Each 1 |
level bubble | 1 | Nylon universal sole | 4 |
Power cord | 1 | Spare fuse (2A) | 2 |
Product certificate, warranty card | 1 | Dust cover | 1 |
Printing paper | 1 | Instructions | 1 |
Screwdriver | 2 | Touch pen | 1 |
Software control system | ||
1 | Automatic loading platform (150 ×150 mm, X,Y stroke 50mm) | 1 |
2 | Z-axis movement (stroke: sample movement range of hardness tester host, built-in) | 1 |
3 | X,Y, Z controller | 1 |
4 | Brand computer | 1 |
5 | Industrial digital camera 5 megapixels | 1 |
6 | Optical adapter and type C interface | 1 |
7 | Usb flash drive (with fully automatic version software) | 1 |
