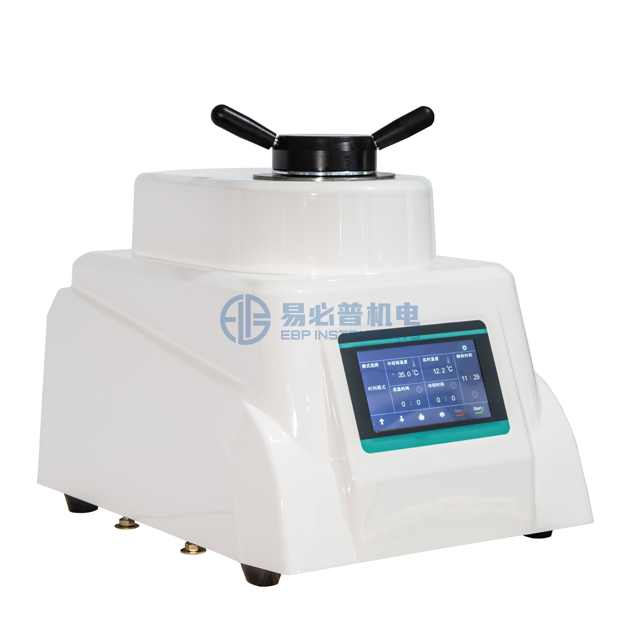

Automatic Metallography Sample Mounting Press Machine with Water Cooling System

Hydraulic system control, more high working efficiency
Touch screen programmable control
Automatic hot mounting press process
Equipped emergency stop button, safe operation
With water cooling system, fast cooling down
Can store over 100 groups working programs
Availability:
  • eMP-1B
  • EBP INSTRUMENTS
  • Shanghai, China
  • 120 Sets Per Month
  • T/T in advance
  • 1 Set

Specification:

Model

eMP-1B

Mold diameter

Standard Ø30mm (option:Ø22mm, Ø45mm)

Mosaic programming

Programmable database, can store over 100 groups of Mosaic programs

System pressure

0-300Bar

Pressure setting range

0-60Bar

Heater power

2KW

Mosaic temperature range

0 - 200℃ adjustable

Mosaic time range

0 - 99min

Cooling down time range

0 - 99min

Pressure Loading

Automatic loading pressure (by hydraulic system)

Cooling

Water cooling (Chiller as optional purchase)

Mounting program

Can edit and save over 100 segments mounting program

Operation and display mode

7 inch touch screen

Working mode

Automatic and manual can switch

Total Power

2.2KW

Power supply

AC220V 50HZ

Dimension & weight

460X600X500mm; 65kg


Standard accessories

Item

Quantity

Dia.30mm mold (installed on machine)

1

Feed powder spoon

1

Funnel

1

Water inlet

1

Drain-pipe

1

Brush

1

Manual book and certificate

1


automatic mounting machine price

1) Different as traditional keypad type machine, eMP-1B everything you need is right on the front touch screen panel, easy to use; New employees can be trained quickly and efficiently (10-30 minutes can get all the operate skills);

2) Heat - cooling Program manual save function, next time can load and use directly, avoid mistake and greatly improved working efficiency.

3) Automatic water cooling system protecting the quality of your samples.

4) See What You Need at a Glance

The status interface and countdown timers give quick visual indications of the status of the press, hold time and cooling time; Set temperature, real temperature, Press time, countdown time, Pressure etc all can displayed directly.
