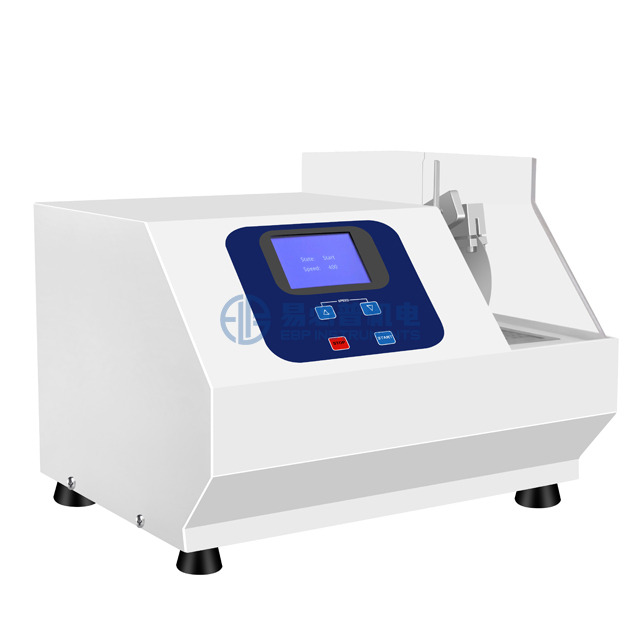

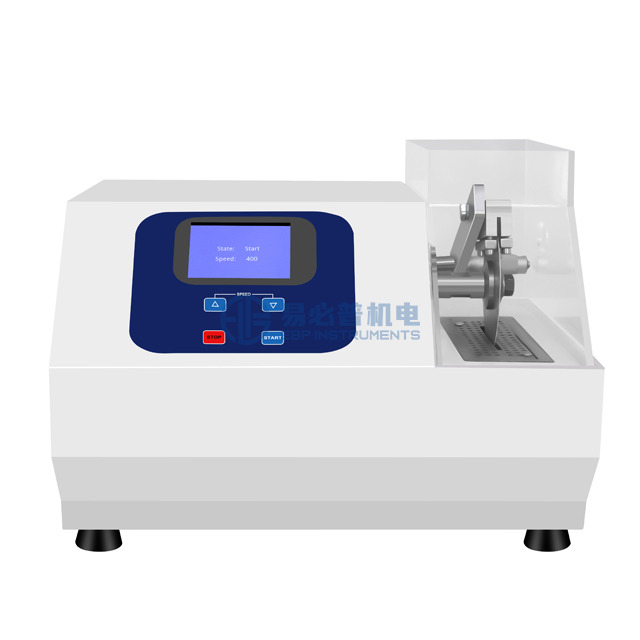

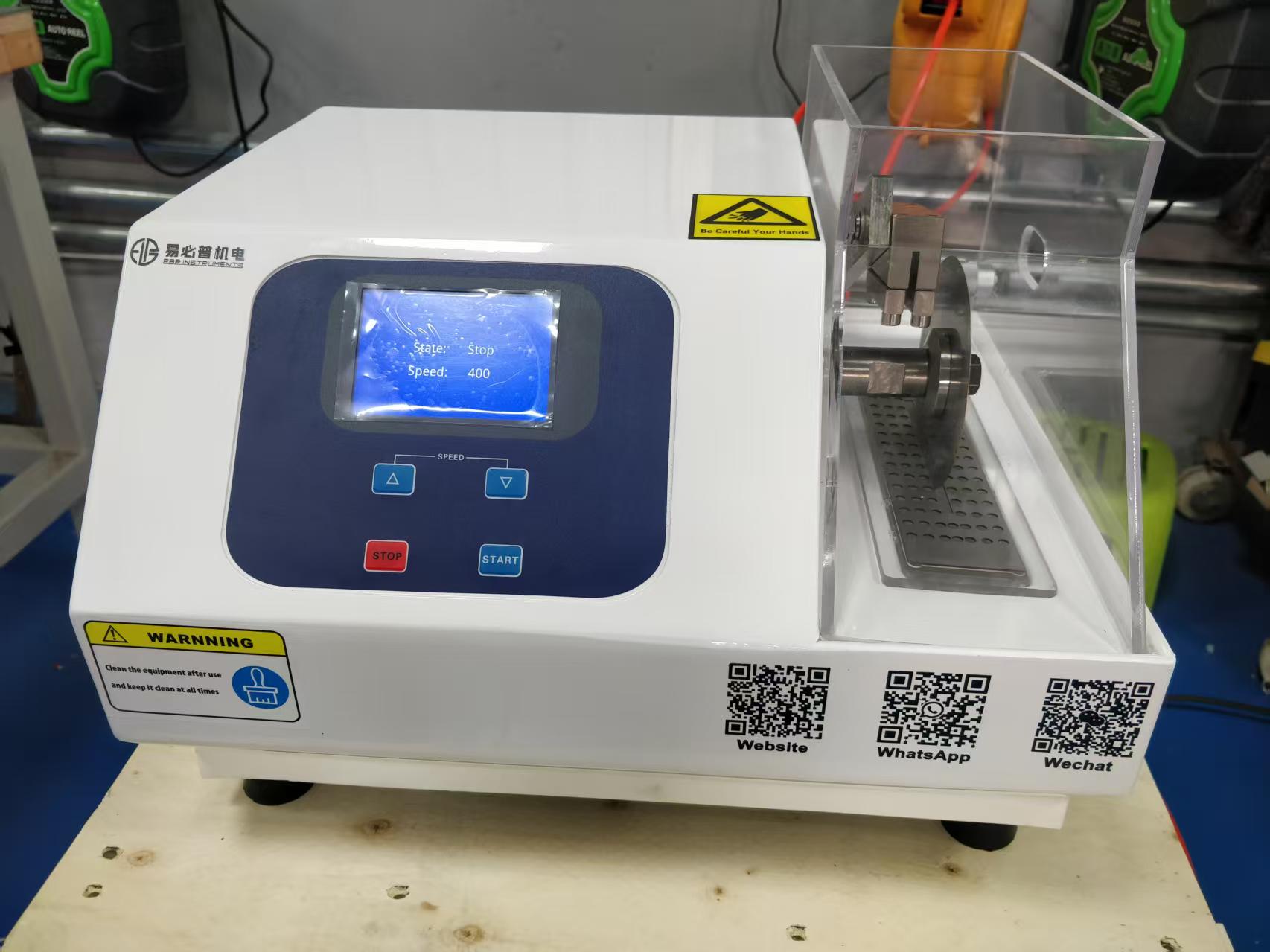

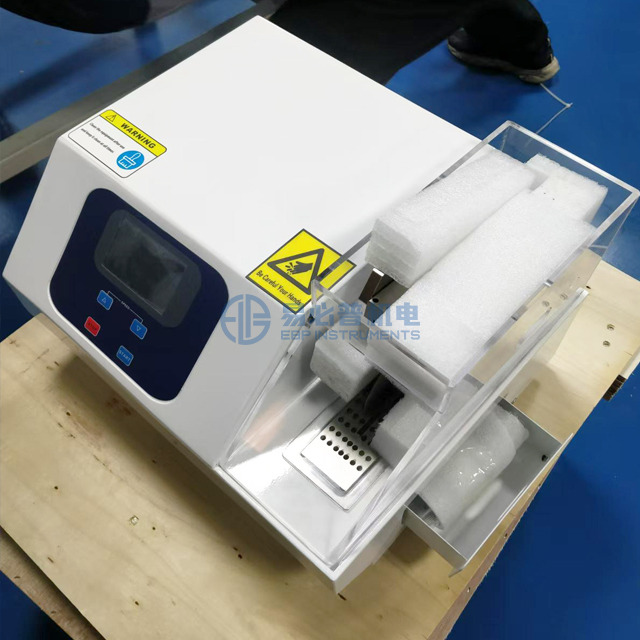

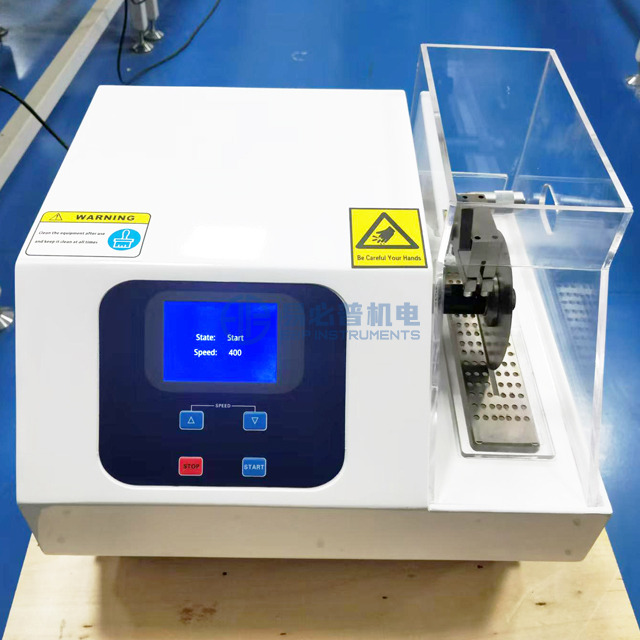

CM-30L
EBP INSTRUMENTS
Shanghai, China
200 Sets Per Month
TT in advance
1 set
Product features:
1) Precision cutting off with micrometer head control;
2) Closed transparent protective cover and safety switch provide protection for operators
3) With weight sliding loading system, easy to operate and minimize sample damage
4) Closed loop control cutting to prevent overload burning motor, circuit, etc
5) Automatically stop after finishing sample cutting
6) Built-in movable coolant tank avoid overheating of cutting wheel and samples, the surface of the cut sample is bright, smooth and free of burns.
7) The equipment has the features of compact body, small footprint, convenient operation and maintenance.
Application:
It is suitable for cutting small, soft, brittle, special-shaped metal materials, composite materials, plastics, electronic components, biological materials, ceramics, cement, rocks and minerals, etc. It is also commonly used for thin-film sample preparation.
Technical specification
Model | CM-30L |
Cutting wheel | Ø100xØ12.7x0.4mm |
Cutting depth | 25mm |
Motor | Power: 50W speed: 0-600r/min |
Cooling device | Automatic cycle cooling of cutting fluid (the cutting wheel drives the circulation of the water in the tank to cool down) |
Display | LCD screen |
Weights | 2 pcs (167.69g / 236.32g) |
Micrometer travel range | 0-15mm |
Position accuracy | 0.01mm |
Power supply | AC220V 50HZ |
Machine Size | 392x 330 x 310mm |
Net Weight | 20kg |
Package size | 650x530x540mm |
Gross Weight | 33kg |

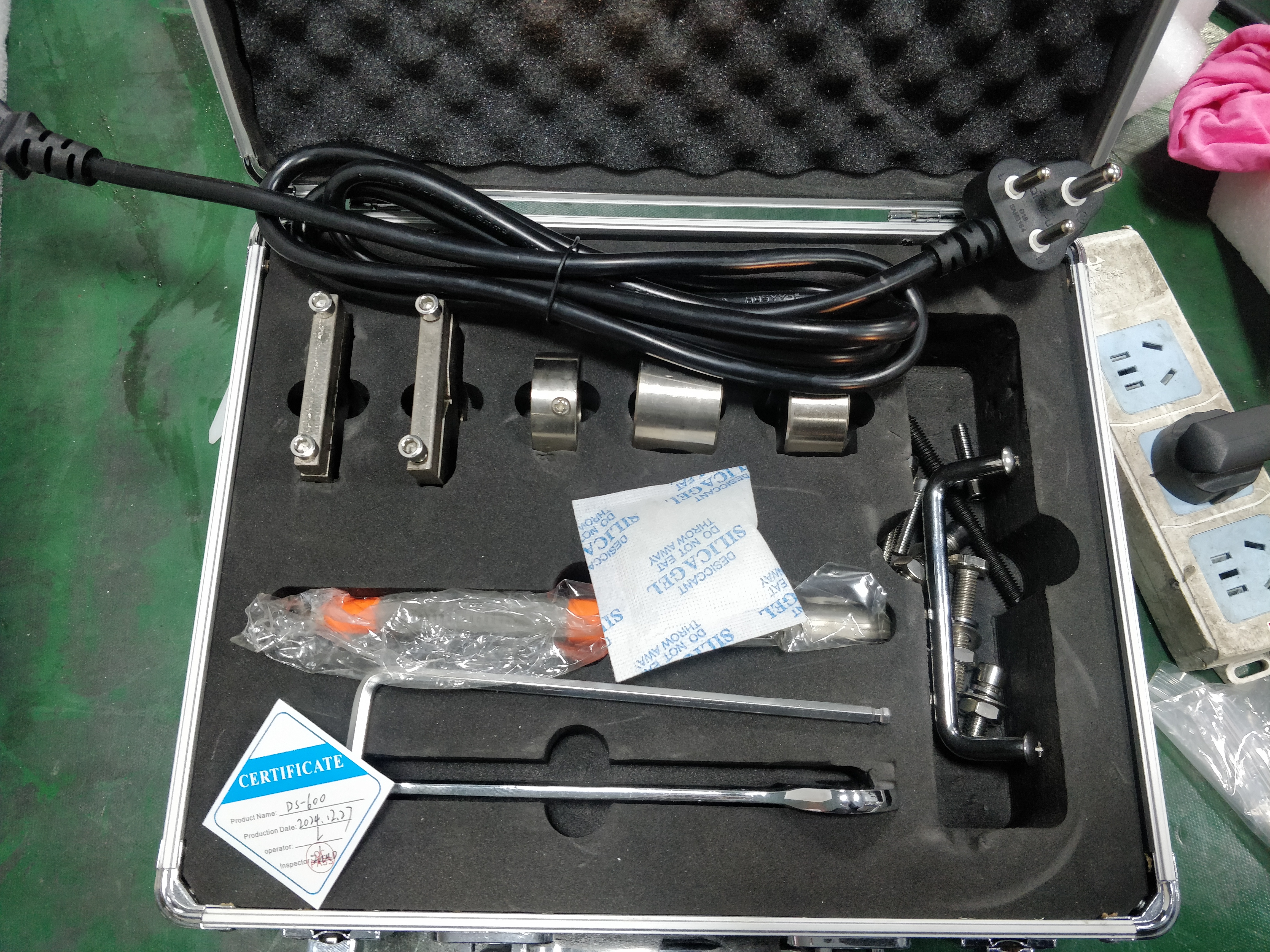

Accessories:
Item | Quantity | Item | Quantity |
Cutting wheel 100*0.4*12.7mm | 1 | Wrench 17-19 | 1 |
Jig | 4 | open-end spanner 20mm | 1 |
Double head jig | 1 | Internal hexagonal wrench | 3 |
Manual | 1 | Power cord | 1 |
