Automatic Metallographic Sample Grinding Polishing Machine With Double Plates

Two working plates, standard plates dimension 254mm, 50% larger than normal grinding - polishing machine;
One time can polishing 4 pieces of diameter 30mm samples (6 pcs for optional);
The grinding head is automatically locked with electromagnetic clutch, which is convenient and quick operation (optional);
The magnetic disc design supports quick disc change, and the replacement of sandpaper and polishing cloth is more efficient;
Automatic centering to prevent multi-faceted grinding and polishing
Availability:
  • eGP-2A
  • EBP INSTRUMENTS
  • Shanghai, China
  • 100 Sets Per Month
  • T/T in advance
  • 1 set

Product Feature:

1. Super cost-effective, stable quality, complete functions, DIY can be customized according to different requirements of customers.

2. Two working plates, standard plates dimension 254mm, 50% larger than normal grinding - polishing machine

3. One time can polishing 4 pieces of diameter 30mm samples (6 pcs for optional).

4. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.

5. The touch screen display control, the interface is clear and intuitive, and the operation is simple.

6. The testing time, rotating speed and pressure can be set.

7. The grinding head is automatically locked with electromagnetic clutch, which is convenient and quick operation.

8. Stepless speed regulation 100-1000r/min or four constant speed regulation (customer can define three common speeds for pre-grinding, grinding and polishing).

9. It can be started by single action or linkage as required.

10. It can store 100 groups of grinding and polishing recipes for quick recall.

11. The magnetic disc design supports quick disc change, and the replacement of sandpaper and polishing cloth is more efficient.

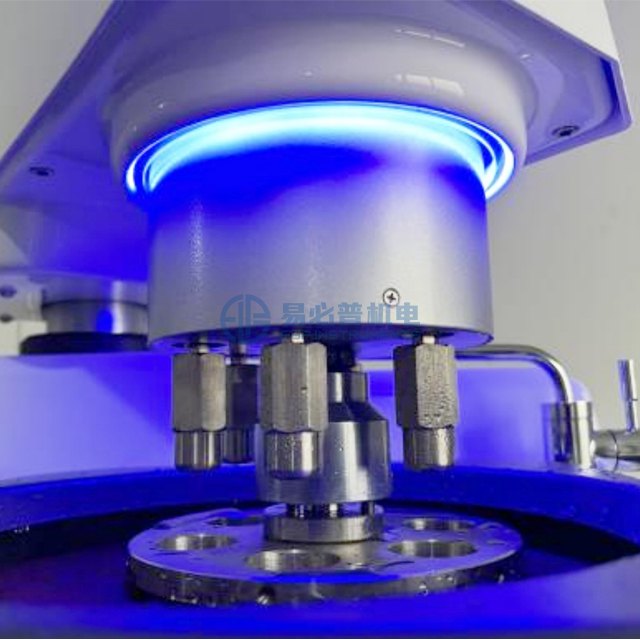

12. The free-rotating design of the sample chuck, with the internal lighting system, is convenient for taking and placing the sample.

13. The whole machine adopts a three-phase silent motor and a stepping motor, with stable rotation, low noise and long life.

14. Automatic centering to prevent multi-faceted grinding and polishing



Technical Specifications:


Model

eGP-2A

Working disc

Standard φ254mm with magnetic disc

Speed of working disc

100-1000 r/min

Support clockwise / anticlockwise direction rotating

Four level constant speeds (stepless speed)

V1=300r/min, V2=500r/min, V3=800r/min, V4=1000r/min (each speed can be set between 100-1000r/min)

Grinding head speed

0-120r/min

Sample holder

Standard φ30mm 4 pieces of samples

Automatic mode

Can be programmed speed, running time and grinding wheel steering switch, with timing function

Samples pressure range

0-0.5MPa (Commonly used 0.1-0.2Mpa)

Pressure Loading type

Single point pneumatic pressurization

Pressure adjustment

By manual (Mechanical pressure regulation)

Timing function

0-99 minutes

Grinding head lock mode

By manual (Automatic electronic mode for optional)

Power supply

AC220V, 50/60Hz

Machine power

1Kw

Dimension / weight

770X730X700mm  100kg

Packing size / G.W

840X810X800mm   120kg


Standard Accessory:

Item

Qty

Item

Qty

eGP-2A

1

Polishing cloth with PSA (250mm)

4

Sandpaper with PSA (250mm) 400#

4

Sandpaper with PSA (250mm) 800#

4

Sandpaper with PSA (250mm) 1200#

4

Waterproof ring (installed on the machine)

2

Anti-stick disc (250mm)

3

Magnetic disc (250mm)

2

Water inlet 0.75’’

1

Power line connector(air connector)

1

Water let 32mm

1

Air pump (option)

1

Technical documents:manual, certificate, warranty card
