CT-1
EBP INSTRUMENTS
Shanghai, China
300 Sets Per Month
T/T in advance
1 set
Introduction
High precision Portable coating thickness gauge is designed for measuring the thickness of coating. The feature for this meter is fast , non-destructive and accurate.
Our coating Thickness Gauge is applied in many areas, such as electroplating industry, corrosion protection, aerospace industry, automotive car industry, ship building industry, light industry and inspection, etc.
Our machine could meet your different demands by changing different probes. There are two measuring methods could be chosen, magnetic permeability method and eddy current method.
F type probe with magnetic method, can measure the magnetic metal (such as steel, iron, alloy steel and hard magnetic and non-magnetic) thickness of coating layer (such as zinc,aluminum, chromium, copper, rubber, paint etc.)
N probe can be measured by the eddy current method, the non ferromagnetic metal (such as copper, aluminum, zinc, tin and other) non conductive cover layer thickness and austenitic stainless steel (such as: plastic, rubber, paint, anodizing etc.).
Optional Purchase probes:
Probe | Measuring range (mm) | Operating principle |
F1 | 0~1250 | Magnetic |
N1 | 0~1250 | Eddy current |
F10 | 0~10000 | Magnetic |
Technical Specification
CT-1 | |
Measuring range | 0-1250μm, depends on probes, MAX 10mm for the probe F10. |
Working principle | Magnetic & Eddy |
Substrate | FE / NFE base |
Resolution | 0.1μm |
Display | 128x64 LCD with backlight |
Accuracy | ±2%H+1um Note: H is thickness reading |
Memory | 5 files x 100 values |
Unit switch | Metric (μm) Imperial (mil) |
Working temperature | Operation Temp.: -10~50°C; Storage Temp. : -30~70°C |
Power | AA battery 2pcs |
Weight | 340g |
Size | 115*67*31mm |
Standard configuration:
Name | QTY | |
1 | Main unit | 1 |
2 | Probe (Fe or NFe) | 1 |
3 | Calibration piece + Zeroing plate | 5+1 |
4 | Operating manual | 1 |
5 | Warranty card | 1 |

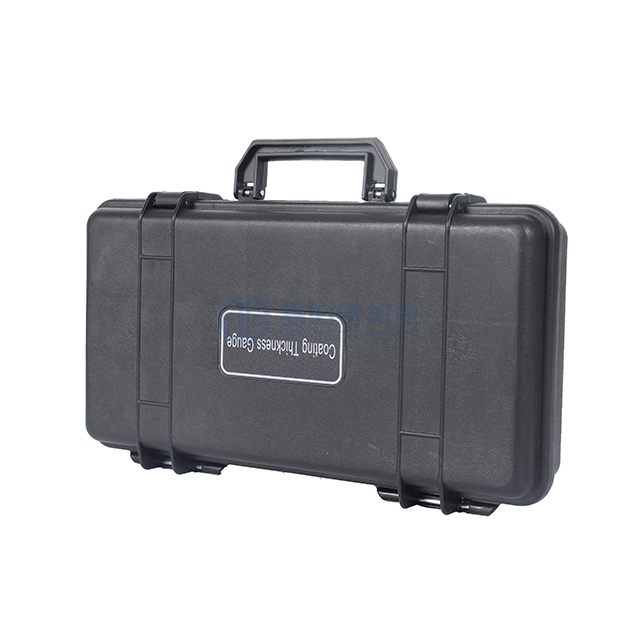

6 | Instrument case | 1 |
