EVM-A Vision Measurement System for Electronics Parts | VMM Machine

I. Usage

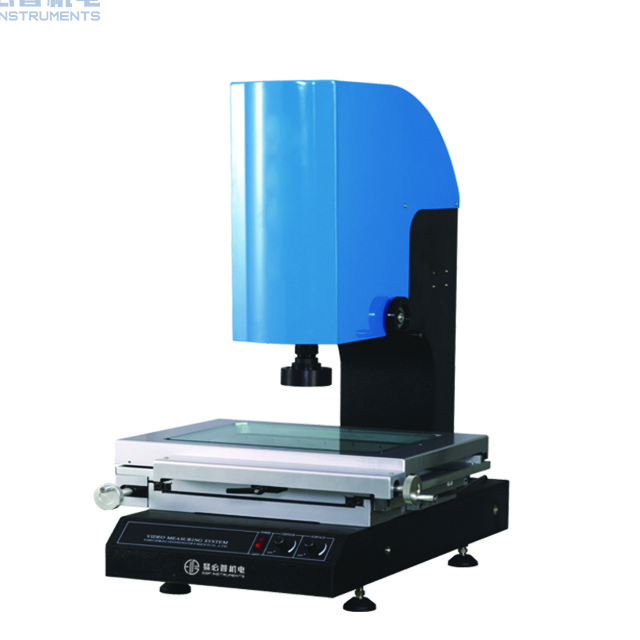

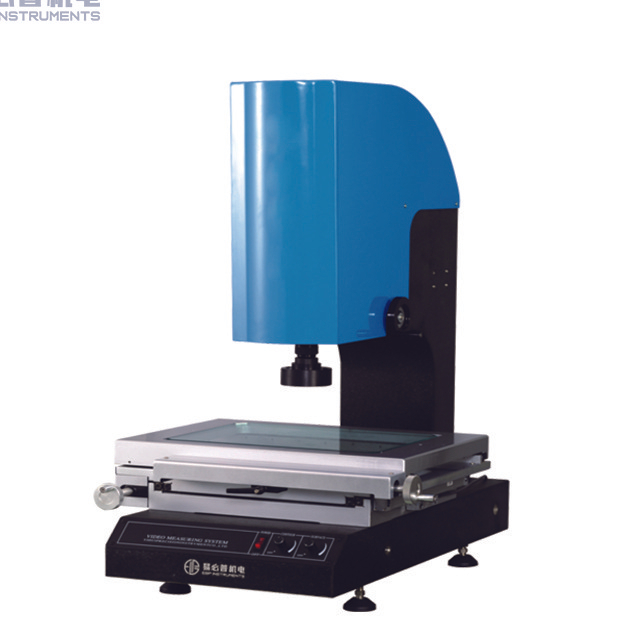

1.1 EVM-A Series is the enhanced type manual Video Measuring System developed by EBP INSTRUMENTS.

1.2 It has been widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.

1.3 It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

1.4 In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.

1.5 Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

Features:

1. Adopting USB interface data console, compatible with laptop using.

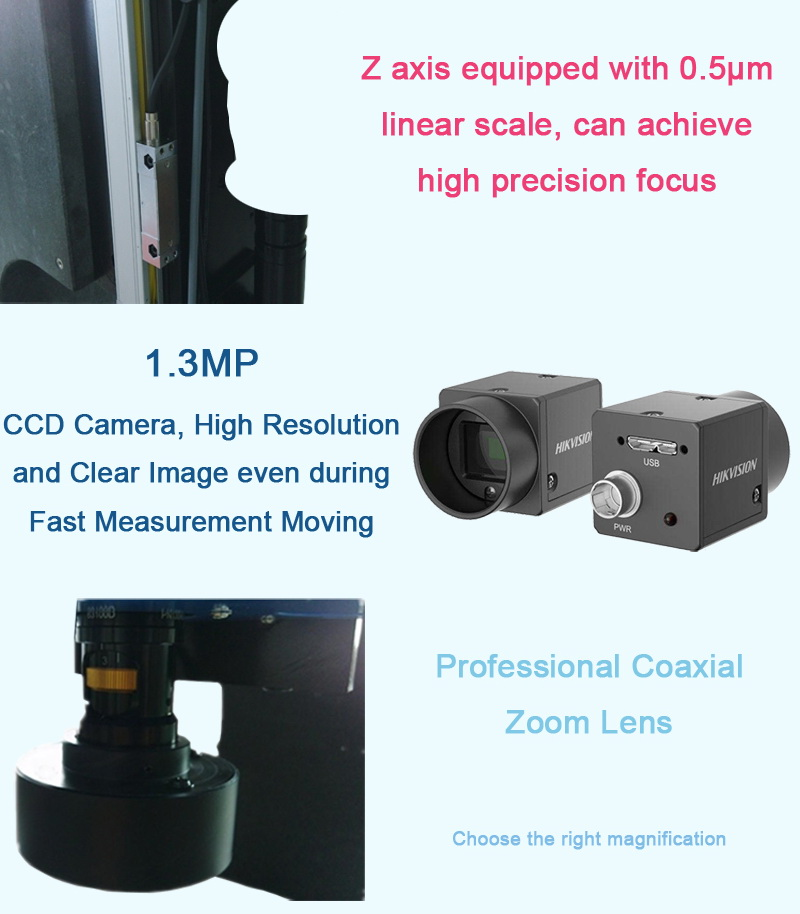

2. Coupled with coaxial light zoom lens, compatible with high magnification image measurement use.

3. It adopts 1.3MP color camera, high screen resolution, clearer image.

4. Grade 00 granite base and column, high stability.

5. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The measurement data also can be exported in Excel, Word to generate reports for statistical analysis.

Technical Specification:

* All data is tested according to ISO Standard 10360-7-2011.

 L is measured length (units: mm)

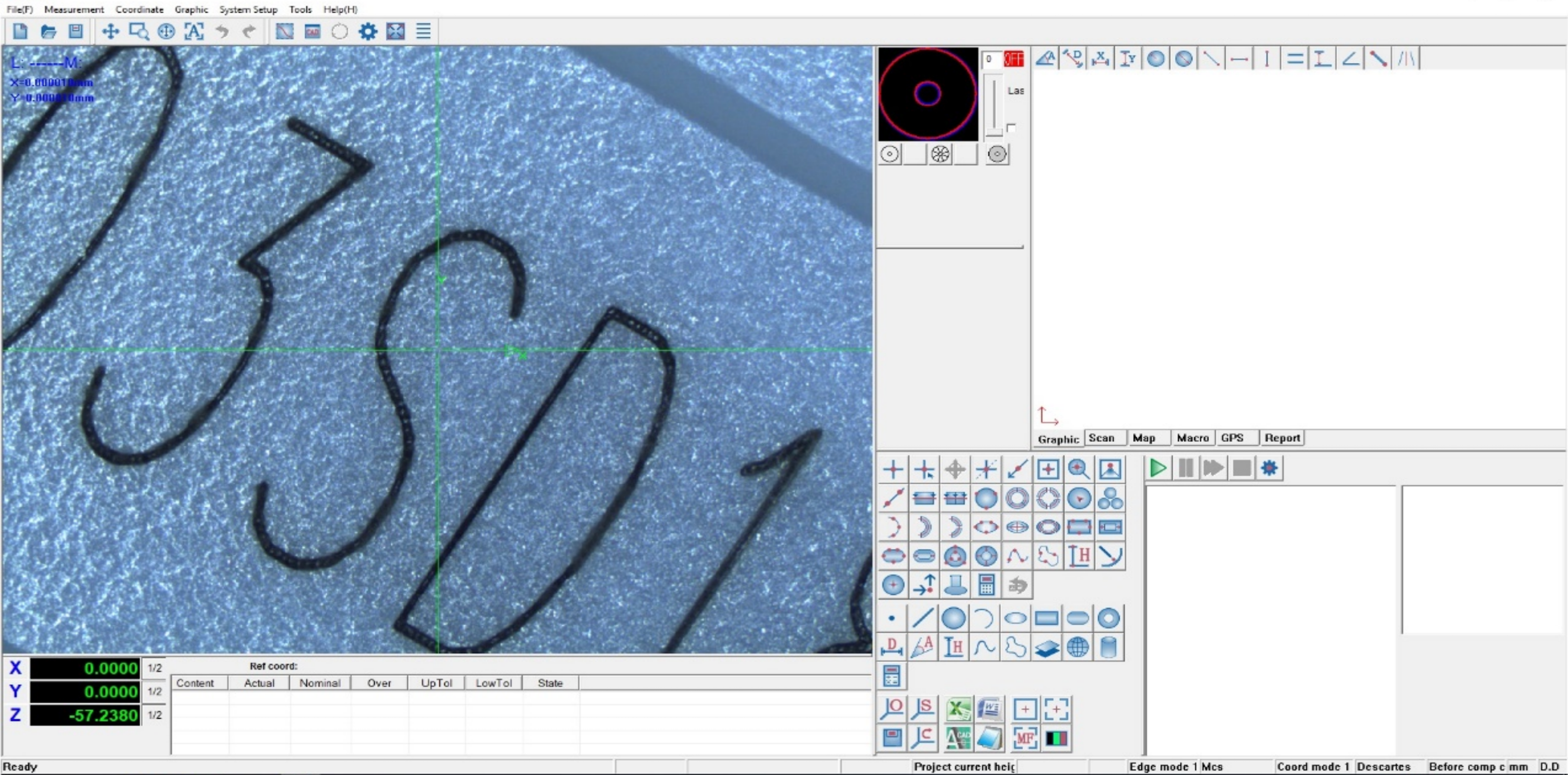

Metrology Software:

With user-friendly UI, powerful functions, it allows the users to achieve fast and precise geometry measurement.

1) 2-dimensional measurement: measure height, width, length, both sides of the angle, the cone angle, the diameter of the cylinder, chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.

2) Max. and Min. Limit: can set max. and min. limits, when the actual size of the product is out of range, the corresponding measurement data will have warning in red background.

3) Reverse engineering: software draws measurement graphics, can have real direct entry in AutoCAD, also can be saved as DXF, dwg. files (can be a fast scanner, more than two times faster than general software speed).

4) Picture output: measurement or observation results can be saved as pictures in various format like BMP, Jpg.

5) Real-time sub-pixel to find the point: the first sub-pixels, advanced image processing technology into video measurement industry, greatly improves the measurement accuracy and measurement efficiency of a pixel, compared to similar software, saves at least 3/5 time, improve the accuracy of more than 2 times (in the same optical magnification).

6) Vector drawing functions: the image or fonts can be zoomed in or out steplessly.

7) Maps measurements: can capture and form a complete picture of large work-piece, and can directly make measurement on the graph.

8) The command line: directly form the command line, enter the coordinate information to generate the point, line, circle, arc, to meet the special needs of virtual measurement.

9) Line position tolerance: roundness, straightness, parallelism, perpendicularity, concentricity, etc.

10) Dimensioning function: radius, diameter, angular dimensions, linear dimensions, alignment annotation, text annotation, coordinate label.

11) Automatic measurement functions: automatically find a straight line, multi-zone automatic find a straight line, cl2ck circle marquee round, round multi-zone automatic arc.

12) Report function: measurement results can be directly converted to EXCEL, WORD, CAD.

13) Language: support Chinese, English, Korean and Japanese, Russian.
