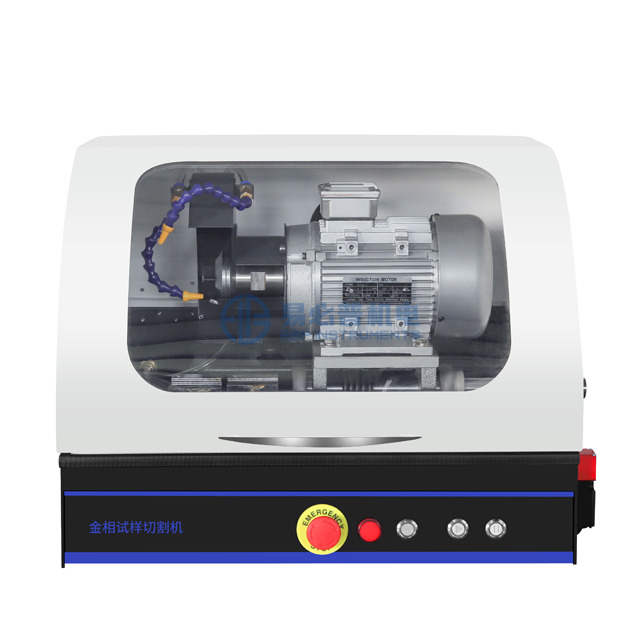

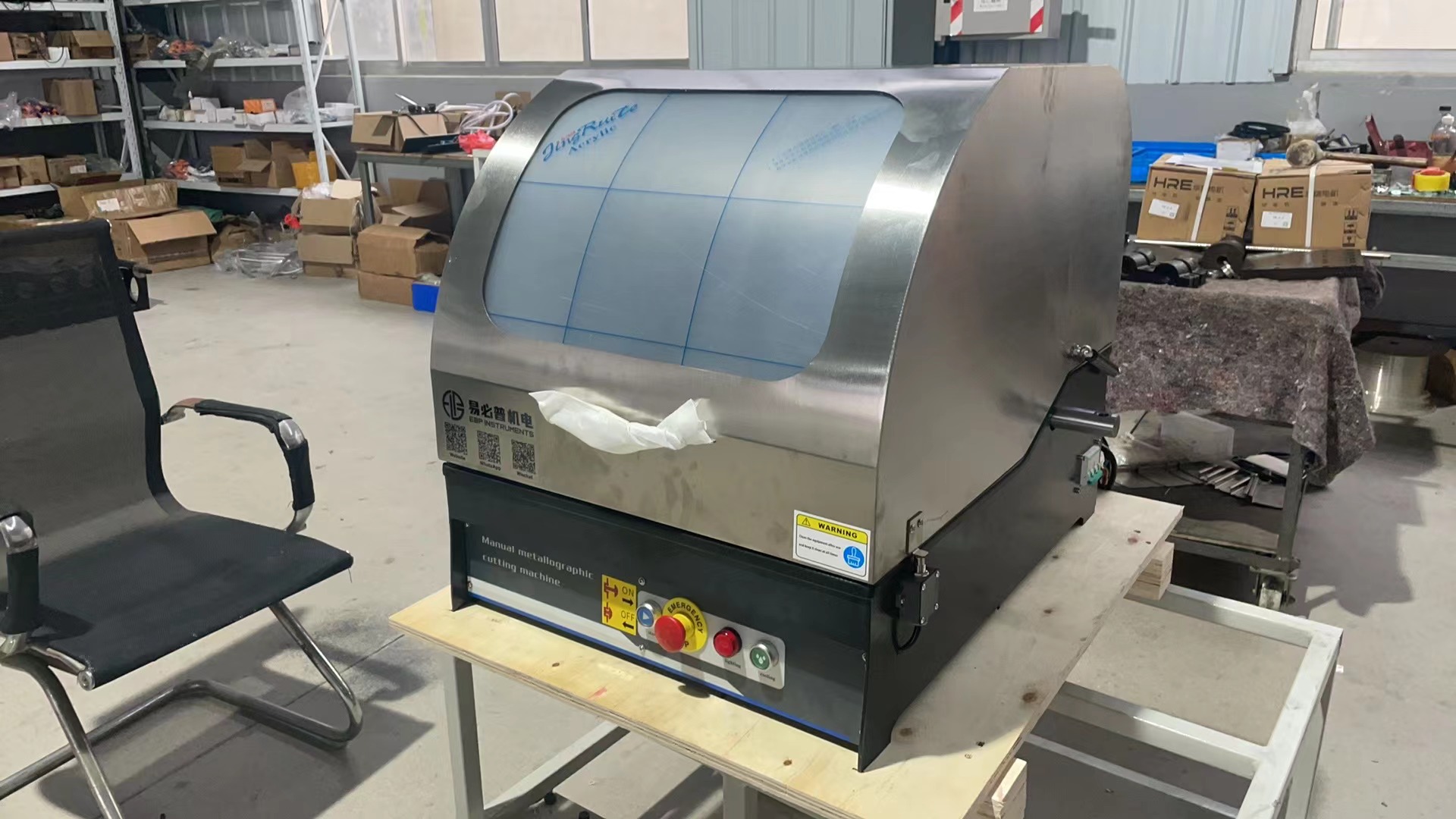

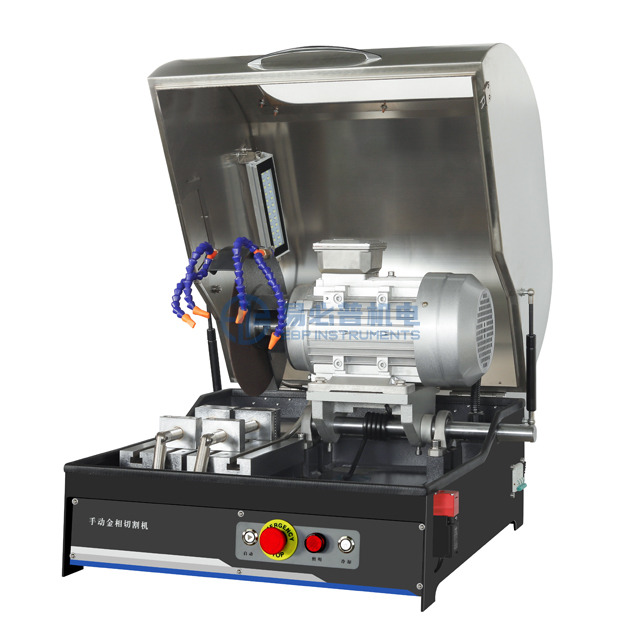

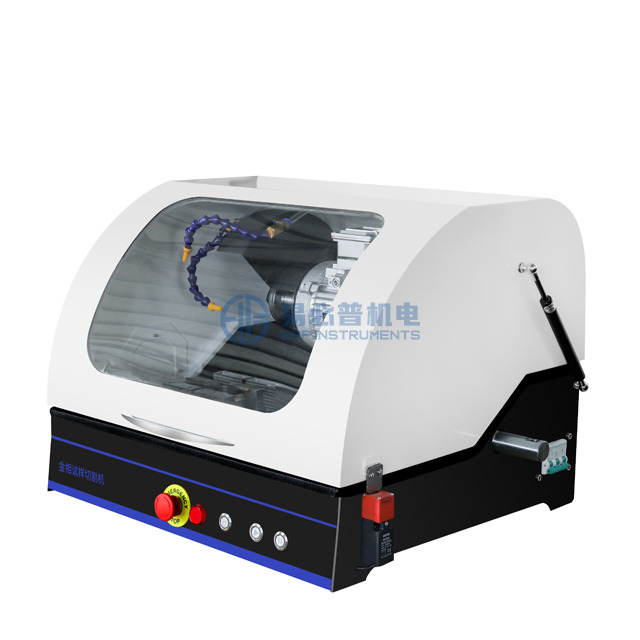

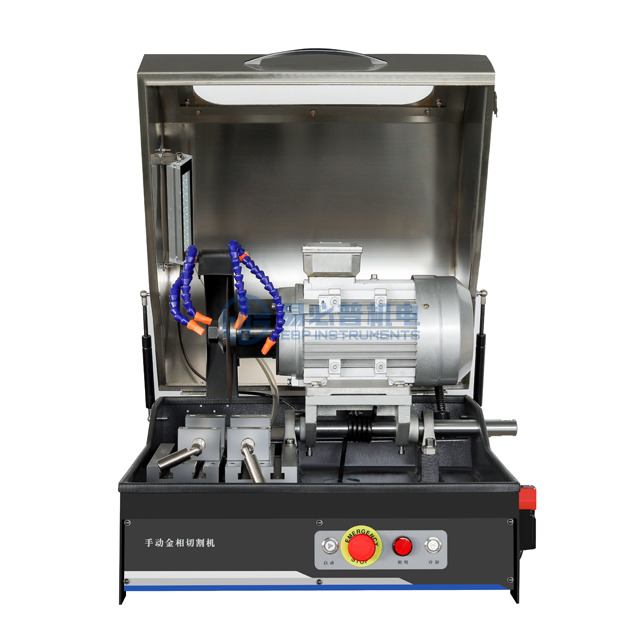

Metallographic Abrasive Cut-off Machine Manual Cutter Machine QG-60C / 80C / 100C

Manual Metallographic Sample Abrasive cut-off machine, T-slot working table, Left - Right double clamp vise;
The machine adopts closed structure, large observation window, use safe;
Metallurgical Sample Abrasive Cutting Machine can be used to cut metal sample, electronic components, crystal and mineral materials.
Availability:
  • QG-60C / 80C / 100C

  • EBP INSTRUMENTS

  • Shanghai, China

  • 30 Sets Per Month

  • TT in advance

  • 1 set


Metallographic sample manual cutting machine is suitable for the cutting of general metallographic and lithofacies sample materials. In order to ensure the sample cutting safety, it adopts totally-enclosed structure. Also it is equipped with cooling water tank for the recycling use of cooling liquid. The shell, jaw, working platform and other main parts are made of stainless steel, which can endure long time working life and is easy to maintain. Therefore it is ideal equipment for sample cutting work.


Product Features:

1. QG-60C/80C/100C Cutting Machine can be used to cut metal sample, electronic components, crystal and mineral materials.

2. The machine adopts closed structure, large observation window, use safe

3. Quick clamping mechanism for optional, easy to clamp sample

4. Have a special cooling water tank, for circulating cooling liquid

5. Main components such as jaw and work surface adopts stainless material, long service life

6. QG-60C machine shell is sheet metal material, QG-80C, 100C machine shell is stainless steel material.


Main Technical Specifications:

Model

QG-60C

QG-80C

QG-100C

Maximum cutting section

Φ60mm

Φ80mm

Φ100mm

Cutting Disc

250*2*32mm

250*2*32mm

300*2*32mm

Motor power

2.2kW

3.0KW

3.0KW

Net weight

86kg

117kg

120kg

Machine size

710*645*470mm

650*715*545mm

680*800*820mm

Rotation Speed

2800rpm

Cutting room light

Low voltage dc lighting

Working table

T-slot working table, Left - Right double clamp vise

Power supply

3 phase 4 lines / 380V, 50Hz

Cooling system

Outside water cooling system (can work with chiller)


Standard Accessories:

Item

Quantity

QG-60C / QG-80C / QG-100C

1

Cooling water box (including pump

1

Wrench

2

Water inlet

1

Drain-pipe

1

Pipe Clamps

2

Cutting wheel

2

Manual & Certificate

1

Manual metallographic sample abrasive cut-off machine
