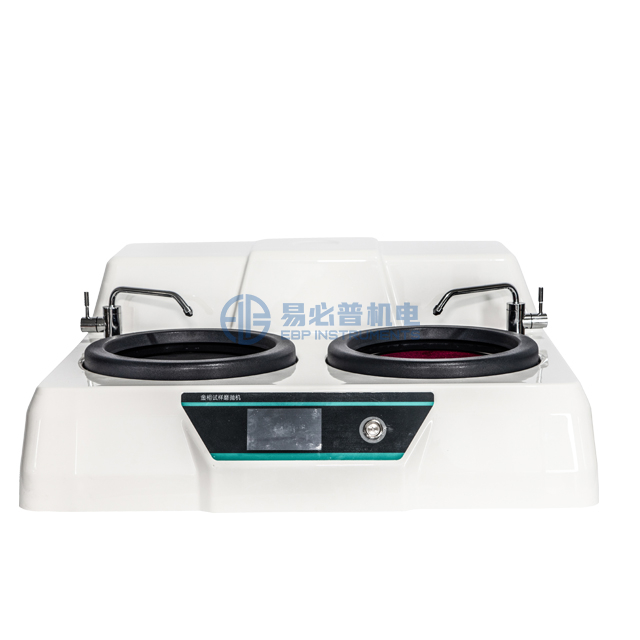

Two Disc China Metallographic Sample Grinder Polisher Machine With Low Price

Touch screen with menu structure, operate very easy;
Double working plates φ203mm, greatly improved working efficiency;
Stepless speed 50-1000rpm + 8 constant speed design, setting more easier;
Support different rotating direction: counterclockwise and clockwise;
Low noise, stable working performance and beautiful outlook
Availability:
  • eGP-2T
  • EBP INSTRUMENTS
  • Shanghai, China
  • 100 Sets Per Month
  • T/T in advance
  • 1 set

In the process of metallographic sample preparation, the grinding and polishing of the sample is an indispensable process. After the sample is ground and polished, a bright mirror-like surface can be obtained. The eGP-2T metallographic sample grinding and polishing machine adopts high quality touch screen control, adjustable stepless speed between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. It is especially suitable for metallographic laboratories in factories, colleges and research institutes, and is an excellent equipment for grinding polishing metallographic samples.

Main features:

1. Touch screen with menu structure, operate very easy;

2. Multi-usage, metallographic specimen of coarse grinding, fine grinding, coarse and fine polishing, one machine to complete

3. Stepless speed 50-1000rpm + 8 constant speed design, setting more easier.

4. Easily manual replace magnetic anti-sticking disc, can make all kinds of sample of coarse and fine grinding, coarse and fine polishing all process (optional purchase)

5. Support different rotating direction: counterclockwise and clockwise

6. Double working plates φ203mm, greatly improved working efficiency.

7. Low noise, stable working performance and beautiful outlook.

8. The faucet adopts stainless steel 304 material, which has good corrosion resistance

9. The shell is made of high-end ABS, which is novel and beautiful in appearance.

10. With water cooling system to prevent damage to the metallographic structure due to overheating of the sample. And can get more better metallographic surface easily.

11. Time count function for optional purchase. Pre-set working time, then automatic stop after finished work.


Technical specification:

Model

eGP-2T

Working Plate size

Standard φ203mm

Speed

Stepless: 50-1000r/min

Constant speed: 300r/min, 400r/min, 500r/min, 600r/min, 700r/min, 800r/min, 900r/min, 1000r/min

(Constant speed can be set by your needs between 50-1000)

Rotate direction

Clockwise - Anticlockwise (reversible)

Speed display

Touch screen

Working mode

Manual

Motor power

0.55KW

Power supply

AC220V, 50Hz

Dimension

770x730x320mm

Weight

42kg


Standard accessories:

Item

Quantity

Item

Quantity

Pressing ring φ203 (on machine)

2 pieces

Water outlet pipe φ32

1 piece

Abrasive paper

2 piece

Water retaining ring

2 pieces

Polishing cloth

2 piece

Water inlet pipe

1 piece

Manual

1 piece

Certificate

1 piece
