HBRV-250T Universal Hardness Tester 2-250kgf Testing Machine With Multi Scales

Language

Chinese, English, Russian, Turkish, Francais, German

Test force

2-250kg

Test force

Brinell: 5kgf(49N), 6.25kgf(61.25N), 10kgf(98N), 15kgf(147N), 15.625kgf(153.125N), 20kgf(196N), 25kgf(245N), 30kgf(294N), 31.25kgf(306.25N), 62.5kgf(612.5N), 100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N), 250kgf(2450N)

Rockwell: 60kgf(588N), 100kgf(980N), 150kgf(1471N); Initial force:10kgf(98N);

Superficial Rockwell: 15/30/45kgf ; (147.1 /294.2 / 441.3N); Initial: 3Kgf(29.42N)

Vickers: 2kgf(19.6N), 2.5kgf(24.5N), 3kgf(29.4N), 5kgf(49N), 10kgf(98N), 20kgf(196N), 25kgf(245N), 30kgf(294N), 40kgf(392N), 50kgf(490N), 60kgf(588N), 80kgf(784N), 100kgf(980N), 120kgf(1176N), 150kgf(1470N)

Rockwell Scales

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Superficial Rockwell

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y, HR15W, HR30W, HR45W

Brinell Scale

HBW1/5, HBW1/10, HBW1/15, HBW1/30, HBW2/20, HBW10/100, HBW2.5/6.25, HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/25, HBW5/31.25, HBW5/62.5, HBW5/125, HBW5/250

Vickers Scale

HV2, HV2.5, HV3, HV5, HV10, HV20, HV25, HV30, HV40, HV50, HV60, HV80, HV100, HV120, HV150

Knoop Scales

HK2, HK2.5, HK3, HK5, HK10, HK20, HK25, HK30, HK40, HK50, HK60, HK80, HK100, HK120

Holding Time

0-99s

Resolution

Display resolution: 0.1HR, 0.1HBW, 0.1HV; Can set to: 0.01

Allowed maximum sample size

Allowed max. Sample height in vertical: 180mm(for Rockwell); 165mm(for Vickers & Brinell test mode);

Allowed max. Sample height in horizontal: 160mm

Magnification

Eyepiece: 15X;  Objective lens: 2.5X , 5X (for Brinell), 10X (for Vickers)

Total magnification: 37.5X, 75X, 150X

Data Output

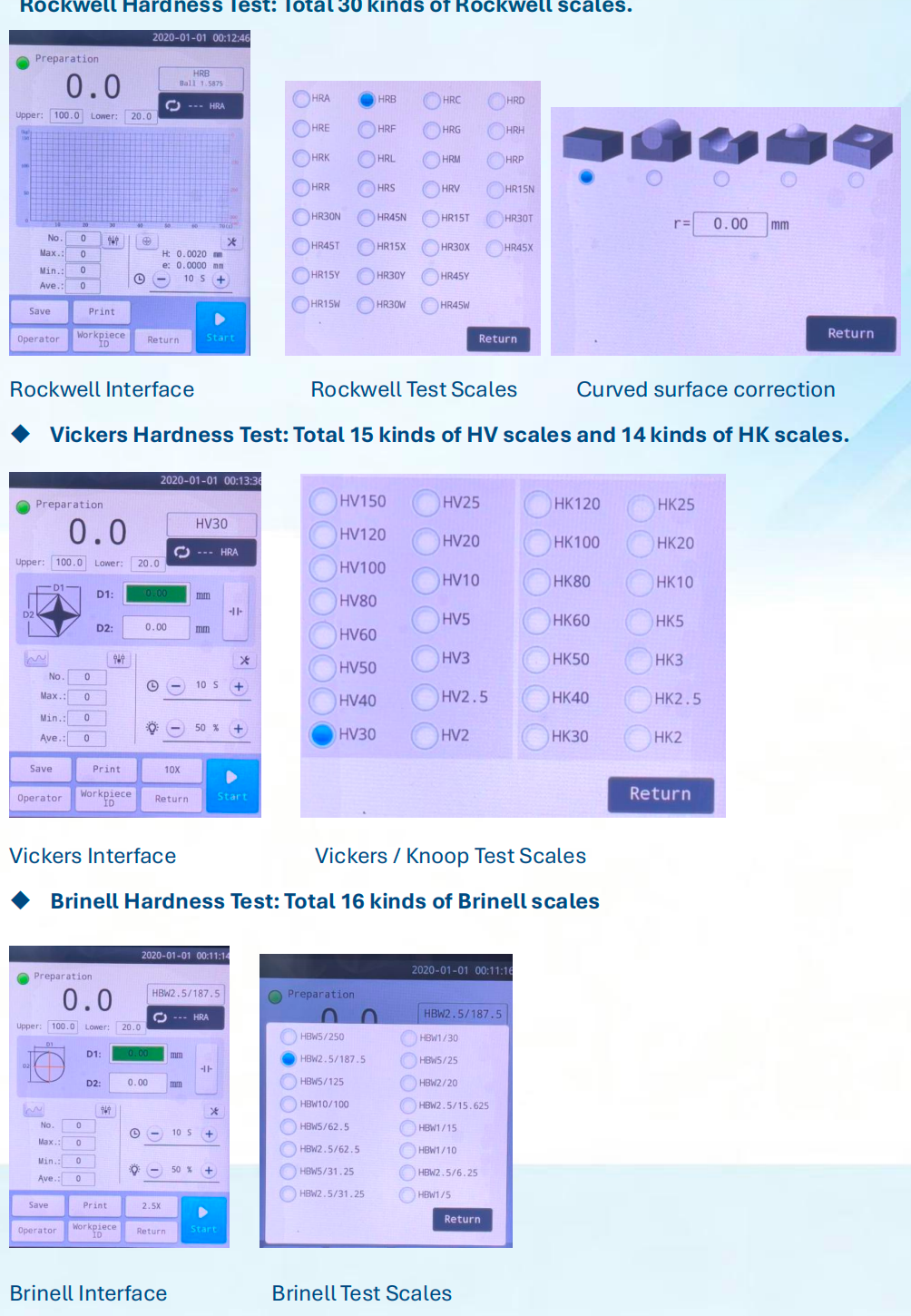

Touch screen display, built-in printer and RS232 port

Power supply

AC220V, 50-60Hz

Standards

ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2

ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2

ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Dimensions

Machine size: 540*340*800mm;  Packing size: 761*580*940mm

Weight

N/W: 80kg;   G/W: 140kg

15X eyepiece

1

Brinell indenter diameter of 2.5mm, 5mm, carbide ball

1 each

Vickers indenter

1

Rockwell 1.588 carbide ball indenter

1

Rockwell diamond indenter

1

Objective Lens 2.5 x, 5x, 10x

1 each

Hardness block

5pcs

Exterior lighting

1

Power line

1

Large, medium, V-test sets

1 each

Sliding test sets

1

Printer paper

1

Fuse 2A

2

Adjust level screw

4

Dust proof cover

1

Accessory box

1
