EYP-200H / 250H
EBP INSTRUMENTS
Shanghai, China
120 Sets Per Month
T/T in advance
1 Set

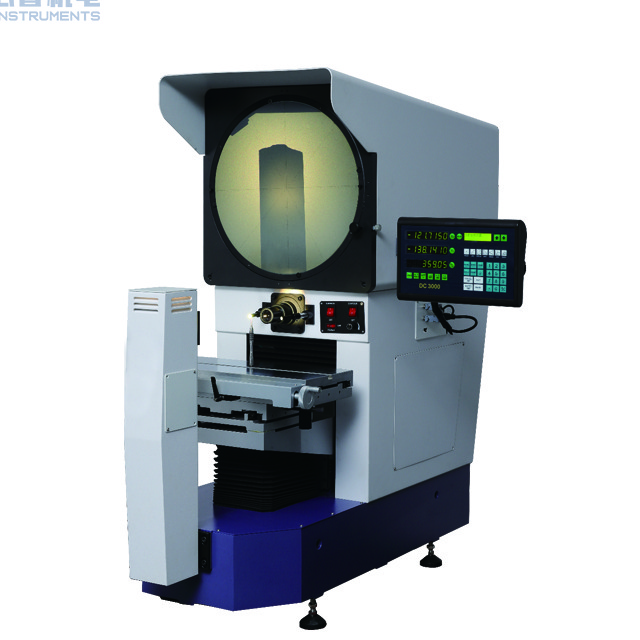

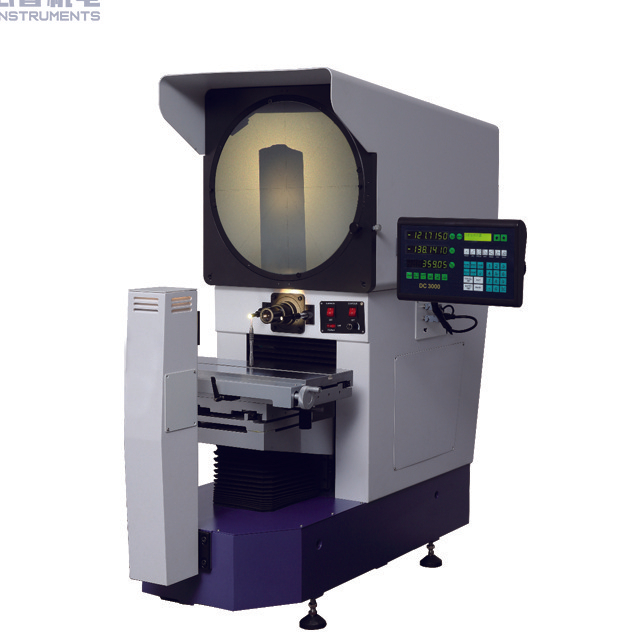

EYP-H series Horizontal profile projector is a photoelectric measuring system of high precision and efficiency，can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.
Technical Specification:
Model | EYP-200H | EYP-250H | |||
Working table | Worktable Size(mm) | 408*126 | 450*200 | ||
X-axis Stroke(mm) | 200 | 250 | |||
Z-axis Stroke(mm) | 100 | 150 | |||
Y-axis Stroke(mm) | 75 for focus | 100 for focus | |||
Turning Range | ±15° | ||||
Resolution(X-axis, Z-axis) | 0.5 μm | ||||
Accuracy*(µm) | Ex, z ≤(3.0+L/200) | ||||
Dimension | L*W*H(mm) | 1147*556*964 | 1215*646*1210 | ||
Weight | Unit:(kg) | 160 | 240 | ||
Projector screen | Projected Image | Reverse | Erect | ||
Screen size(mm) | Ø330 | Ø425 | |||
Screen Rotary Range | 0°~360° | ||||
Rotary Angle Resolution | 1´ or 0.01° | ||||
Projection Accuracy* | Contour: ≤0.06%, Surface: ≤ 0.06% | ||||
Lens | Magnification | 10X (standard) | 20X (option) | 50X (option) | |
Object View(mm) | Ø30/Ø40/Ø60 | Ø15/Ø20/Ø30 | Ø6/Ø8/ Ø12 | ||
Working Distance(mm) | 77.7/103.9/180 | 44.3/95.1/120 | 38.4/65.7/80 | ||
Data processing system | DC-3000 Series DRO, appearing in English, can be used to gather dimension data and measure point ,line, circle, angle and distance, etc. | ||||
Illumination | Transmission: 24V/150W, cooling by fans. Reflection: 21V/150W, illuminated by two fibers, cooling by fans. | ||||
Power | 110V/220V(AC), 50/60HZ, Total power=400W | ||||
Option | Mini-printer, Edge detector, M2D software and so on, Please refer to Appendix for more details. | ||||
* All data is tested according to standard JJF1093-2002.
L is measured length (units: mm)
Specification subject to change without notice

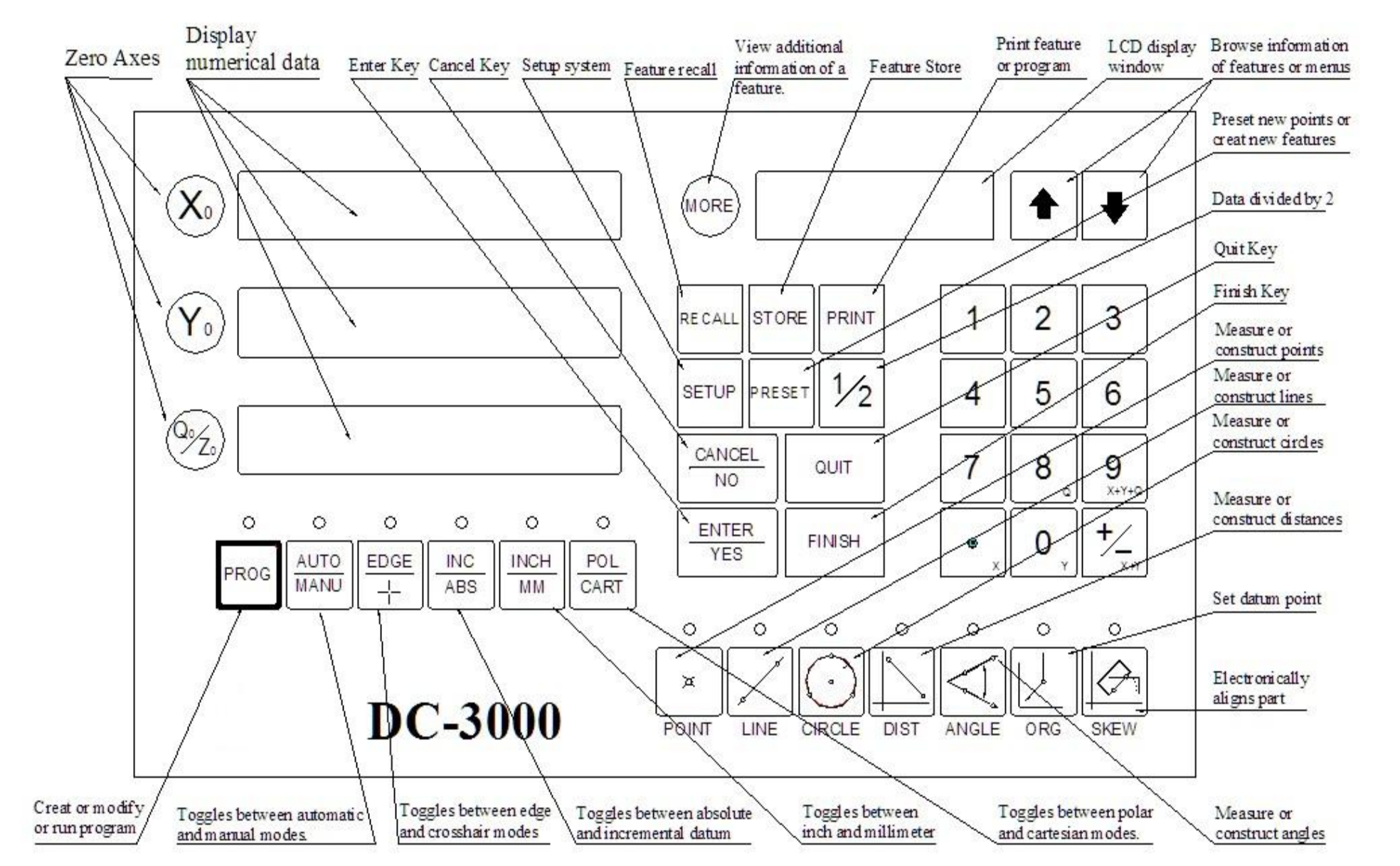

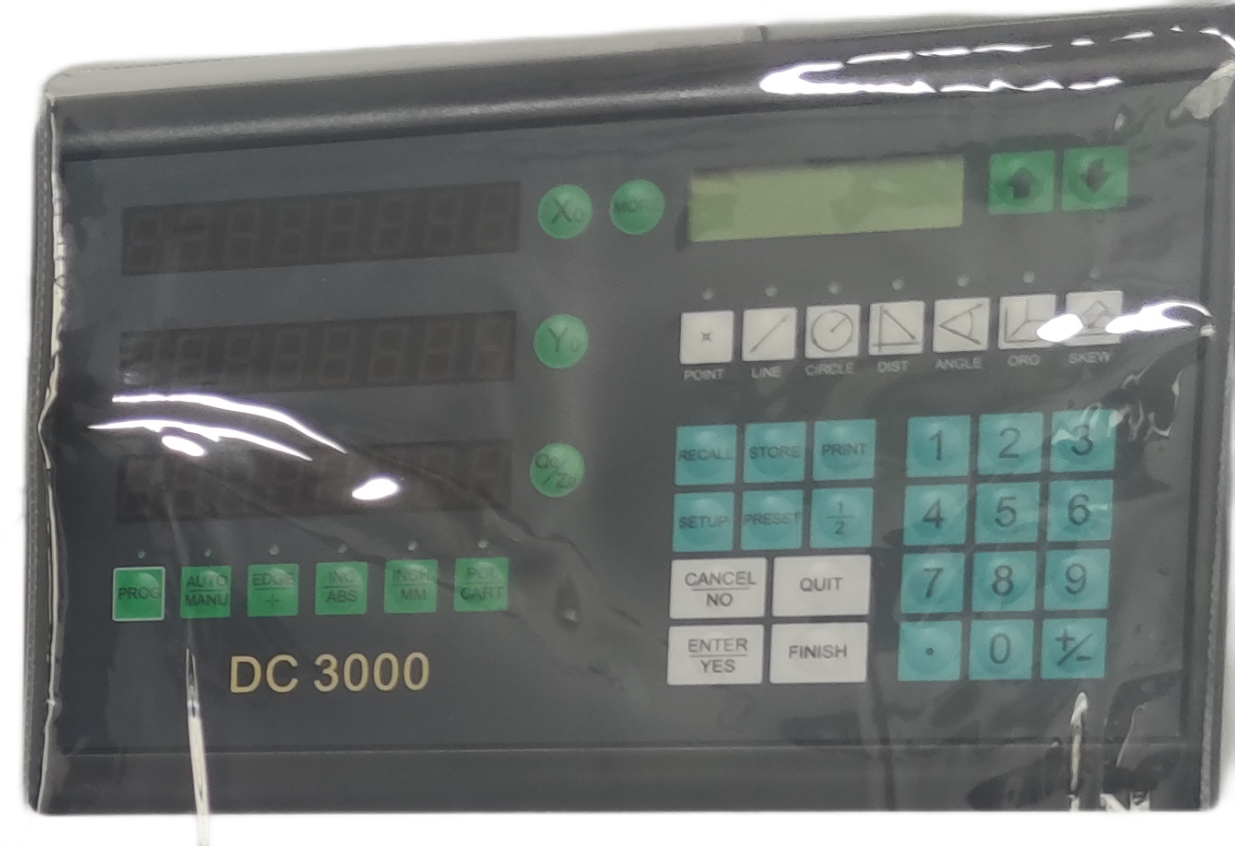

Digital Readout DC 3000:
1. Two-dimensional measurement: measure width, length, both sides of the angle, the cone angle, the diameter of the cylinder, chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
2. User program: sequences of front panel key-presses can be stored as programs and replayed at a later date. This capability is especially useful when a series of identical parts must be measured.
3. Communication: with RS232 interface and printer interface, can export measurement data with a mini printer or a computer equipped with metrology software.
4. Measuring Unit: support mm or inch
5. Language: Chinese, English, Portuguese.
