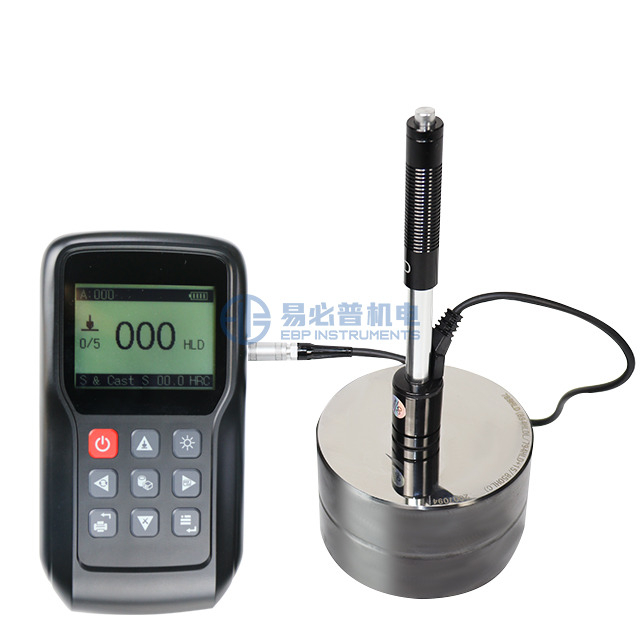

L-2A
EBP INSTRUMENTS
Shenzhen or Hongkong
900 sets per month
TT in advance
1 set
Main Application:
Applicable to 24 materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, copper, forged steel, low carbon steel, high carbon steel, chromium copper, chromium vanadium steel, chromium nickel steel, chromium molybdenum steel, chromium nickel molybdenum steel, chromium manganese silicon steel, ultra-high strength steel), forged steel rolls, cast steel rolls, cast iron rolls, graphite.
1. Die cavity of molds
2. Bearings and other parts
3. Failure analysis of pressure vessel, steam generator and other equipment
4. Heavy work piece
5. The installed machinery and permanently assembled parts
6. Testing surface of a small hollow space
7. Material identification in the warehouse of metallic materials
8. Rapid testing in large range and multi-measuring areas for large-scale work piece.
Technical Specification:
Model | L-2A |
Test range | (170-960)HLD, (19-651)HB, (13-101.7)HRB, (17.9-69.5)HRC, (59.1-88)HRA, (80-1042)HV, (30.6-102.6)HS |
Conversion scale | HRB, HRC, HB, HV, HSD, Mpa |
Accuracy | Better than standard required accuracy, ≦±6HLD |
Impact Directions | Up, down, horizontal, slanting up, slanting down (↓↖↗↘↙→←↑) |
Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, Ductile iron, Cast Aluminum alloys, Brass, Bronze, Copper, Forging steel, Low carbon steel, High carbon steel, Chrome steel, Cr-V steel, Cr-Ni steel, Cr-Mo steel, Ce-Ni-Mo steel, Cr-Mn-Si steel, High strength steel, Cast steel roll, Forged steel roll, Cast iron roll, Graphite |
Hardness Scales | HL, HB, HRB, HRC, HRA, HV, HS. |
Standards | ASTM A956, DIN50156-1, GB/T17394-1998, GB/T1172 |
Display | 160*128 dot matrix LCD screen with background light display |
Memory | 1000pcs |
Work Voltage | 4.5V ( 3 pcs AAA batteries) |
Size & Weight | 152mm*83mm*27mm, 190g (main machine body) |
Standard delivery | Machine body, D probe, standard hardness block, small support ring, clean brush, carry box, AAA battery, Manual book |
Optional | Data software, other probe and support ring, additional hardness block, cable |
Main Application:
Applicable to 24 materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, copper, forged steel, low carbon steel, high carbon steel, chromium copper, chromium vanadium steel, chromium nickel steel, chromium molybdenum steel, chromium nickel molybdenum steel, chromium manganese silicon steel, ultra-high strength steel), forged steel rolls, cast steel rolls, cast iron rolls, graphite.
1. Die cavity of molds
2. Bearings and other parts
3. Failure analysis of pressure vessel, steam generator and other equipment
4. Heavy work piece
5. The installed machinery and permanently assembled parts
6. Testing surface of a small hollow space
7. Material identification in the warehouse of metallic materials
8. Rapid testing in large range and multi-measuring areas for large-scale work piece.
Technical Specification:
Model | L-2A |
Test range | (170-960)HLD, (19-651)HB, (13-101.7)HRB, (17.9-69.5)HRC, (59.1-88)HRA, (80-1042)HV, (30.6-102.6)HS |
Conversion scale | HRB, HRC, HB, HV, HSD, Mpa |
Accuracy | Better than standard required accuracy, ≦±6HLD |
Impact Directions | Up, down, horizontal, slanting up, slanting down (↓↖↗↘↙→←↑) |
Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, Ductile iron, Cast Aluminum alloys, Brass, Bronze, Copper, Forging steel, Low carbon steel, High carbon steel, Chrome steel, Cr-V steel, Cr-Ni steel, Cr-Mo steel, Ce-Ni-Mo steel, Cr-Mn-Si steel, High strength steel, Cast steel roll, Forged steel roll, Cast iron roll, Graphite |
Hardness Scales | HL, HB, HRB, HRC, HRA, HV, HS. |
Standards | ASTM A956, DIN50156-1, GB/T17394-1998, GB/T1172 |
Display | 160*128 dot matrix LCD screen with background light display |
Memory | 1000pcs |
Work Voltage | 4.5V ( 3 pcs AAA batteries) |
Size & Weight | 152mm*83mm*27mm, 190g (main machine body) |
Standard delivery | Machine body, D probe, standard hardness block, small support ring, clean brush, carry box, AAA battery, Manual book |
Optional | Data software, other probe and support ring, additional hardness block, cable |
